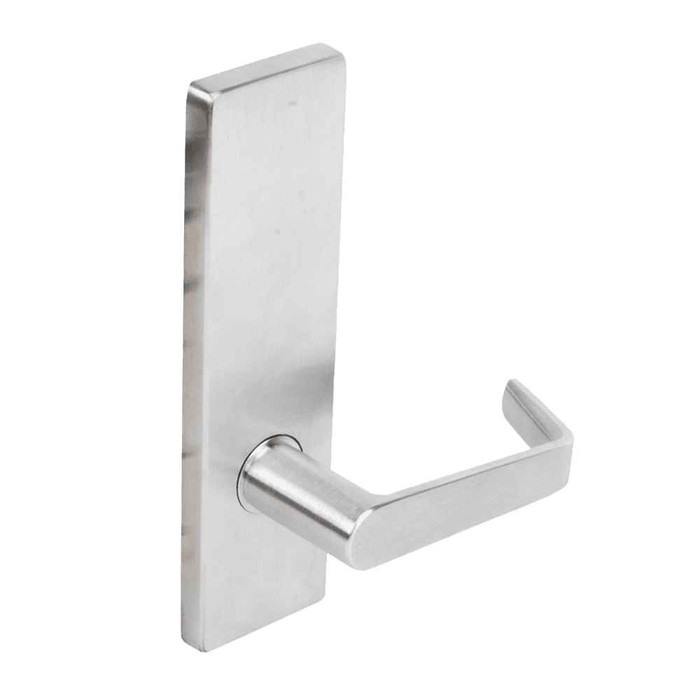

Falcon TP75E Grade 1 Mortise Lock Trim Pack with Dane Lever and Napa Escutcheon

Falcon TP75E Grade 1 Mortise Lock Trim Pack with Dane Lever and Napa Escutcheon

Professional-Grade Trim Solution for MA Series Mortise Locks

The Falcon TP75E Grade 1 Trim Pack delivers commercial-grade security and durability for use with MA371/381/411/431/441 mortise lock series. This heavy-duty trim pack accommodates door thickness from 1-3/8" to 2-1/2" with a standard 2-3/4" backset and features bind-resistant through-bolted construction. The cold-formed steel case with .090" thickness and hardened steel hubs provide exceptional strength for high-traffic commercial applications, while the UL 3-hour A label fire rating ensures code compliance.

Professional Features & Benefits

• Door Compatibility: Standard accommodates door thickness of 1-3/8" to 2-1/2" with 2-3/4" backset for versatile installation options.
• Heavy-Duty Construction: Cold-formed steel case with zinc dichromate plating at .090" thickness and hardened steel hubs for exceptional durability.
• Bind-Resistant Design: Heavy-duty through-bolted inserts clamp trim securely to door ensuring proper alignment with 8-32 screws and thread sealant.
• High-Security Latch System: Two-piece stainless steel mechanical anti-friction latch bolt with 3/4" projection and 1" throw dead bolt with saw-resistant rollers.
• Fire-Rated Performance: UL 3-hour A label rating meets stringent fire safety requirements for commercial applications.
• MA Series Compatibility: Specifically designed for use with MA371/381/411/431/441 mortise lock models for seamless integration.
• Field-Reversible Handing: Right hand standard with left hand optional, reversible in the field for installation flexibility.
• Professional Cylinder Options: Solid brass cylinder and plug available in 5, 6, or 7-pin configurations with interchangeable core options.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Electronic: No
• Fire Rating: Yes
• Grade: Grade 1
• Handle Type: Lever
• Keyed: No
• Product Category: Exit Devices and Trim
• Product Group: Exit Devices and Trim
• Product Model: TP95E
• Product Subgroup: Exit Device Trim
• Product Type: Exit Device Trim
• Series: MA Series
• Subcategory: Exit Device Trim

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon TP75E trim packs deliver professional-grade reliability with cold-formed steel construction and hardened steel components rated for demanding commercial use. The UL 3-hour fire rating and ANSI/BHMA 156.13 Series 1000 compliance ensure code requirements are met. Engineered for demanding commercial applications where dependable performance and fire safety are essential.
