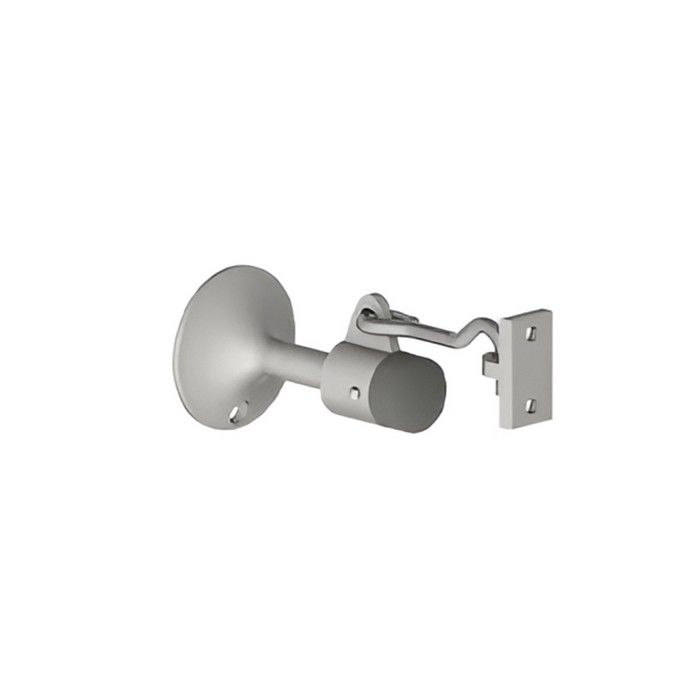

Hager 256W Wall Stop & Holder with Cast Brass Construction and Rubber Bumper

Hager 256W Wall Stop & Holder with Cast Brass Construction and Rubber Bumper

Heavy-Duty Manual Wall Stop and Hold Open Solution

The Hager 256W Wall Stop & Holder combines reliable door protection with convenient hold-open functionality in a durable cast brass construction. Featuring a 2-1/4" base diameter and 3-25/32" projection, this unit provides effective door stopping while offering manual hold-open capability when the hook is engaged. The 5-11/16" engaged projection accommodates locksets with projections up to 3" and meets ANSI A156.6 standards for L01341 applications.

Professional Features & Benefits

• Dual-Function Design: Functions as both a door stop and manual hold-open device when hook is manually engaged for versatile door control.
• Heavy-Duty Cast Brass Construction: Durable cast brass material with rubber bumper provides long-lasting performance in high-traffic commercial applications.
• Precise Dimensional Specifications: 2-1/4" base diameter with 3-25/32" projection and 5-11/16" engaged projection for optimal door clearance and operation.
• Lockset Compatibility: Designed for use with locksets having projections of 3" or less, with keeper dimensions of 25/32" x 1-1/2".
• Versatile Installation Options: Includes comprehensive fastener kit with plastic anchor, lead anchor, and threaded stud options for concrete wall mounting.
• ANSI Compliance: Meets ANSI A156.6 standards for L01341 applications ensuring code compliance and professional-grade performance.
• Interior/Exterior Capability: Suitable for both interior and exterior applications with multiple finish options including US3, US10B, US15, US26, and US26D.

Technical Specifications

• Box Quantity: 5
• Case Quantity: 50
• Certifications: Meets ANSI A156.6 for L01341
• Commercial/Residential: Commercial
• Diameter: 2-1/4" (57 mm)
• Engaged Projection: 5-11/16" (145 mm)
• Fasteners: One #10 x 1 OPHWS One plastic anchor One 5/16-18 lead anchor One 5/16-18 x 2-1/2" threaded stud One 5/16-18 x 2-1/2" combo threaded stud
• Finishes: US3, US10B, US15, US26, US26D
• Material: Cast Brass
• Notes: For use on concrete walls
• Projection: 3-25/32" (95 mm)
• Subcategory: Floor Stops & Holders

Installation & Operation

1. Review manufacturer specifications and verify wall construction is suitable for concrete wall mounting. Confirm structural adequacy for the installation location.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on the wall surface at the appropriate height for door clearance.
3. Prepare the wall by drilling required holes per manufacturer specifications. Select appropriate fastener from included kit based on wall construction (plastic anchor, lead anchor, or threaded stud options).
4. Install mounting hardware and secure the wall stop to the wall surface using the appropriate fastener and torque specifications.
5. Adjust positioning for proper alignment with door swing and verify clearance for lockset projection up to 3".
6. Test device operation to verify proper door stopping function and manual hold-open engagement. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager door hardware delivers professional-grade reliability with cast brass construction and rubber bumper protection rated for heavy-duty use in high-traffic areas. Meeting ANSI A156.6 standards for L01341 applications, this wall stop and holder provides dependable door control with dual-function capability. Engineered for demanding commercial applications where reliable door protection and convenient hold-open functionality are essential.
