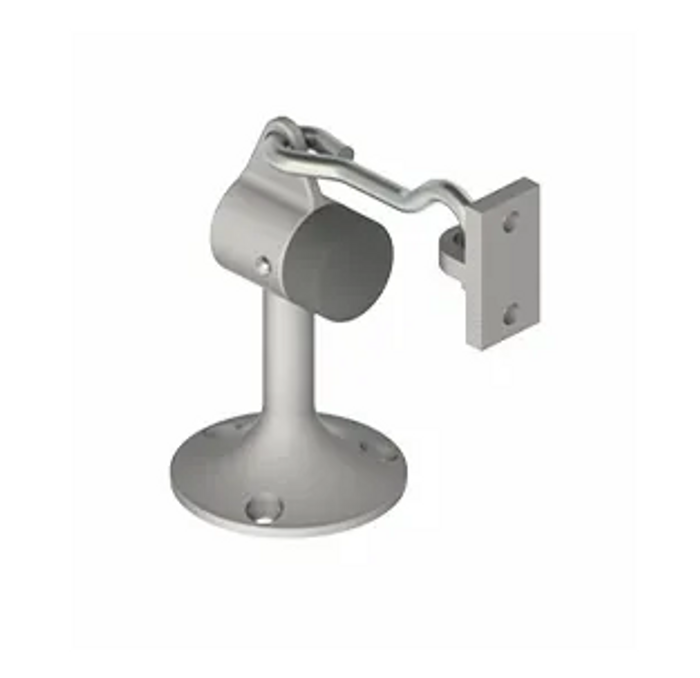

Hager 268S Cast Floor Stop and Holder with Rubber Bumper - 2-1/4" Base Cast Brass Construction

Hager 268S Cast Floor Stop and Holder with Rubber Bumper - 2-1/4" Base Cast Brass Construction

Heavy-Duty Floor Stop and Hold-Open Solution

The Hager 268S Cast Floor Stop and Holder combines reliable door stopping with convenient hold-open functionality in a single heavy-duty unit. Featuring a 2-1/4" base diameter and 3-19/32" height, this cast brass construction with black rubber bumper is designed for high-traffic commercial applications. The unit accommodates doors with up to 2-1/2" floor clearance and includes a 25/32" by 1-1/2" keeper for secure hold-open operation when manually engaged.

Professional Features & Benefits

• Dual Functionality: Functions as both a door stop and hold-open device when hook is manually engaged for versatile door control.
• Heavy-Duty Construction: Cast brass body with black rubber bumper provides exceptional durability for high-traffic commercial environments.
• Optimal Sizing: 2-1/4" base diameter and 3-19/32" height designed for maximum stability and door clearance up to 2-1/2".
• ANSI Compliance: Meets ANSI A156.16 for L01361 certification ensuring professional-grade performance standards.
• Complete Installation Kit: Includes five #10 x 1" OPHWS fasteners and three plastic anchors for secure concrete floor mounting.
• Keeper Integration: 25/32" by 1-1/2" keeper dimensions provide reliable engagement for hold-open functionality.
• Multiple Finish Options: Available in US3, US10, US10B, US15, US15A, US26, and US26D finishes to match existing hardware.

Technical Specifications

• Certifications: Meets ANSI A156.16 for L01361
• Commercial/Residential: Commercial
• Fasteners: Five #10 x 1" OPHWS and Three plastic anchors
• Finishes: US3, US10, US10B, US15, US15A, US26, US26D
• Height: 3-19/32" x 1-1/2" (20 mm x 38 mm)
• Material: Cast brass with black rubber bumper
• Notes: Heavy duty for use in high traffic areas; 2-1/2" (64 mm) max door to floor clearance; For use on concrete floors; Unit functions as a stop, but can serve as a "Hold Open" when hook is manually engaged; Keeper 25/32" x 1-1/2" (20 mm x 38 mm)
• Subcategory: Floor Stops & Holders

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager door hardware products deliver professional-grade reliability with cast brass construction and ANSI A156.16 compliance for demanding commercial applications. The heavy-duty design is specifically engineered for high-traffic areas where dependable door control and hold-open functionality are essential. Engineered for demanding commercial applications where dependable performance is essential.
