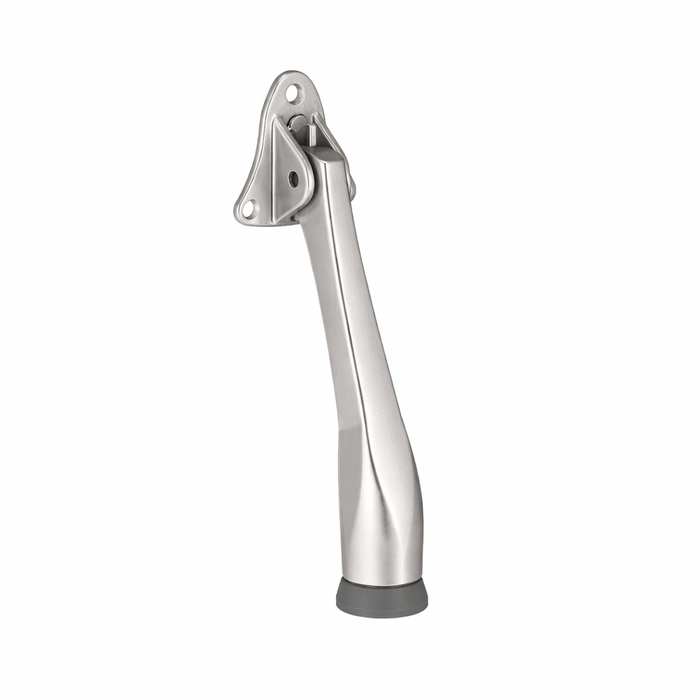

Hager 271D Kick Down Door Holder with 4-7/16" Arm - Cast Brass Construction

Hager 271D Kick Down Door Holder with 4-7/16" Arm - Cast Brass Construction

Professional Foot-Operated Door Control Solution

The Hager 271D Kick Down Door Holder provides reliable door positioning with simple foot-operated control in commercial applications. Featuring a 4-7/16" (87 mm) arm length and cast brass construction with rubber tip, this door holder accommodates doors with up to 3-1/4" (83 mm) maximum door-to-floor clearance. The unit meets ANSI A156.16 certification standards and includes three #6 x 3/4" OPHWS fasteners for secure installation.

Professional Features & Benefits

• Precise Arm Dimensions: 4-7/16" (87 mm) arm length designed for optimal door positioning and clearance management.
• Door Clearance Compatibility: Accommodates doors with up to 3-1/4" (83 mm) maximum door-to-floor clearance for versatile installation options.
• Durable Cast Brass Construction: Cast brass material with rubber tip provides long-lasting performance and floor protection in commercial environments.
• Simple Foot Operation: Provides simple hold and release with a touch of the foot for convenient hands-free door control.
• Compact Base Design: 1-19/32" x 1-25/32" (41 mm x 45 mm) base dimensions minimize floor space requirements while ensuring stable operation.
• ANSI Certification: Meets ANSI A156.16 standards for reliable performance and code compliance in commercial applications.
• Complete Installation Hardware: Includes three #6 x 3/4" OPHWS fasteners for secure mounting and professional installation.

Technical Specifications

• ADA Compliant: No
• ANSI/BHMA: ANSI A156.16
• Certifications: Meets ANSI A156.16 for L01381
• Commercial/Residential: Commercial
• Fasteners: Three #6 x 3/4'' OPHWS
• Features: Provides Simple Hold and Release With a Touch of the Foot
• Material: Cast brass with rubber tip
• Notes: Provides simple hold and release with a touch of the foot
• Package Includes: (3) #6 x 3/4" OPHWS Fasteners
• Subcategory: Floor Stops & Holders

Installation & Operation

1. Review manufacturer specifications and verify floor surface is suitable for mounting. Confirm door swing clearance and maximum 3-1/4" door-to-floor gap.
2. Position the door holder base in the desired location ensuring proper alignment with door swing path and adequate clearance for foot operation.
3. Mark mounting hole locations using the base as a template and drill pilot holes appropriate for the floor material.
4. Secure the unit to the floor using the three provided #6 x 3/4" OPHWS fasteners, ensuring the base is flush and stable.
5. Test door holder operation by engaging and releasing with foot pressure to verify smooth function and proper door positioning.
6. Make final adjustments to positioning if needed and verify the rubber tip makes proper contact without damaging the door. Refer to manufacturer documentation for complete installation details.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager door hardware products deliver professional-grade reliability with cast brass construction and ANSI A156.16 certification for demanding commercial applications. The 271D model combines durable materials with practical foot-operated functionality for convenient door control. Engineered for commercial environments where dependable performance and hands-free operation are essential.

Support Resources

• Commercial Hinges Catalog 2024 (PDF)
