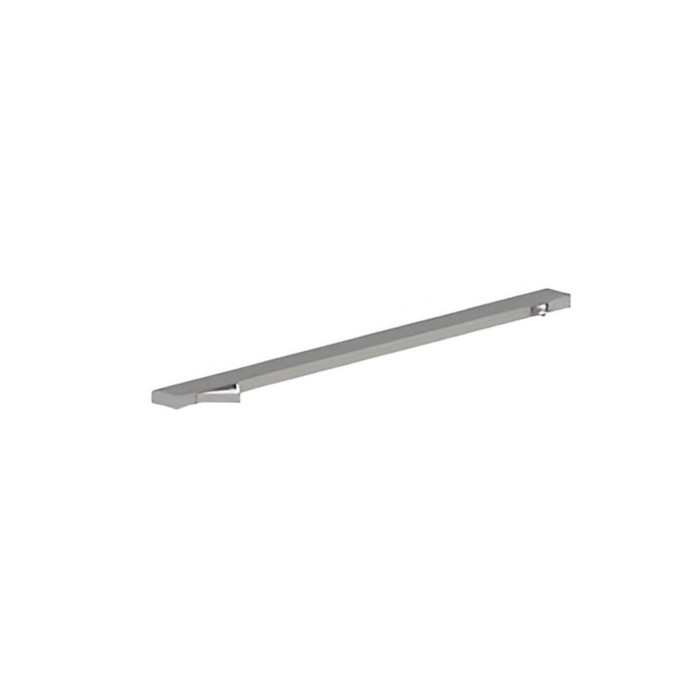

Hager 297D Steel Door Coordinator with Filler Bar 1-5/8" x 5/8" Base

Hager 297D Steel Door Coordinator with Filler Bar 1-5/8" x 5/8" Base

Professional Door Coordination Solution for Commercial Applications

The Hager 297D Steel Door Coordinator with Filler Bar provides reliable door sequencing control for commercial double door installations. Featuring a robust 1-5/8" x 5/8" (42 mm x 16 mm) steel construction with black powder coat finish, this coordinator ensures proper door closing sequence while accommodating varying opening widths. ANSI A156.3 Type #21A certified for commercial applications with non-handed design for versatile installation.

Professional Features & Benefits

• Precise Dimensions: 1-5/8" x 5/8" (42 mm x 16 mm) steel base with 5/8" (16 mm) stop height for reliable door coordination.
• Heavy-Duty Steel Construction: Durable steel material with black powder coat finish provides long-lasting performance in commercial environments.
• Flexible Installation: Non-handed design allows installation on either side of the opening for maximum versatility.
• Complete Hardware Package: Includes four #8 x 1" combo screws and seven 12-24 x 1-1/4" TPHMS fasteners for secure mounting.
• ANSI Certified Performance: ANSI A156.3 Type #21A certification ensures compliance with commercial door hardware standards.
• Flush Bolt Compatibility: Compatible with flush bolt systems for comprehensive door control solutions.
• Customizable Length: 297F Filler Bar can be factory cut to match customer's total opening width for precise fit.
• Optional Mounting Solutions: Compatible with optional mounting brackets 297M and 297N for soffit-applied hardware installations.

Technical Specifications

• ANSI/BHMA: ANSI A156.3 Type #21A
• Case Quantity: 6
• Certifications: ANSI A156.3 Type #21A
• Commercial/Residential: Commercial
• Fasteners: Four #8 x 1" combo screws, Seven 12 - 24 x 1-1/4" TPHMS
• Finishes: Black Powder Coat
• Material: 1-5/8" x 5/8" (42 mm x 16 mm) Steel
• Notes: Coordinator may not span the entire length of the stop
• Stop: Height 5/8" (16 mm)
• Subcategory: Coordinator with Filler Bar

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager door coordination products deliver professional-grade reliability with heavy-duty steel construction and black powder coat finish for demanding commercial applications. ANSI A156.3 Type #21A certification ensures compliance with industry standards while the non-handed design provides installation flexibility. Engineered for dependable performance where proper door sequencing is essential for safety and security.
