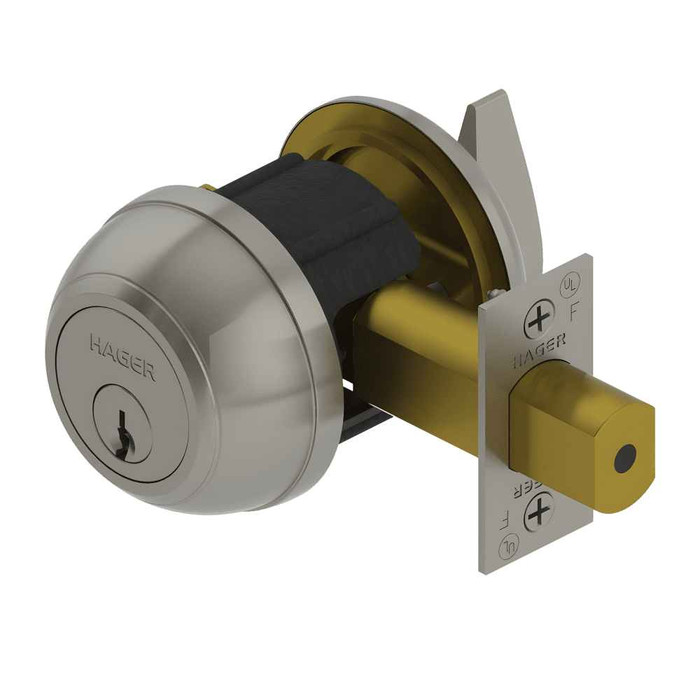

Hager 3118 Grade 1 Classroom Deadbolt with Schlage C Keyway and 6-Pin Cylinder

Hager 3118 Grade 1 Classroom Deadbolt with Schlage C Keyway and 6-Pin Cylinder

Professional-Grade Deadbolt Security for Commercial Applications

The Hager 3118 Grade 1 Classroom Deadbolt delivers exceptional security and reliability for commercial applications with BHMA Grade 1 certification and UL/cUL listing for up to 3-hour fire rating. This heavy-duty deadbolt features a 1" throw brass bolt with concealed hardened steel roller, 6-pin conventional cylinder with Schlage C keyway, and accommodates door thickness from 1-3/8" to 1-3/4". The ANSI Function E2152 design provides key operation from outside and thumbturn operation from inside with automatic deadlocking when fully thrown.

Professional Features & Benefits

• Grade 1 Security Rating: BHMA Certified ANSI A156.36 Grade 1 provides maximum security for demanding commercial applications.
• Heavy-Duty Deadbolt Construction: 1" throw brass bolt with concealed hardened steel roller prevents sawing or cutting for enhanced security.
• Fire-Rated Performance: UL/cUL Listed for all functions up to 3 hours "A" label single doors with UL10C Positive Pressure Rating.
• Flexible Door Compatibility: Standard 1-3/8" to 1-3/4" door thickness range with optional 2-1/4" thickness for conventionally keyed applications.
• Professional Cylinder System: 6-pin conventional cylinder drilled, keyed 5-pin standard with Schlage C keyway for widespread compatibility.
• Classroom Function Design: ANSI Function E2152 allows key operation from outside and thumbturn from inside with automatic deadlocking.
• Multiple Backset Options: Standard 2-3/4" backset with optional 2-3/8" backset for various door preparations.
• Lifetime Warranty: Backed by manufacturer lifetime warranty for added confidence and long-term protection.

Technical Specifications

• ANSI/BHMA: BHMA Certified ANSI A156.5 Grade 2
• Applications: Heavy Duty Commercial
• Backsets: 2-3/4" (70 mm) Standard
• Certifications: ADA Compliant ANSI A117.1 Accessibility Code
• Commercial/Residential: Commercial
• Cylinder and Keyways: Schlage C - Standard, other keyways optional
• Deadbolt: 1'' (25 mm) Throw - Brass with concealed hardened steel roller to prevent sawing or cutting;
• Door Thickness: 1-3/8" - 1-3/4" (35 mm - 45 mm) - Standard);
• Exposed Trim: Wrought Brass, Bronze or Stainless Steel
• Finishes: US26D
• Fire Rating: Yes
• Function: Deadbolt
• Functions: Classroom (E2171)
• Keyed: Yes
• Keys: Two operating keys supplied per lock
• Latch Throw: 1"
• Notes: Non-handed
• Strikes: 1-1/8" x 2-3/4" (29 mm x 70 mm) no-lip strike standard
• Subcategory: Deadbolts
• UL Listing Type: UL/cUL Listed for all functions up to 3 Hours for "A" label single doors

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 1-3/4", backset requirements (2-3/4" standard or 2-3/8" optional), and proper door handing.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for the 1-1/8" x 2-1/4" square corner faceplate.
3. Prepare door by drilling required holes for the deadbolt assembly and routing as specified in manufacturer instructions for proper fit.
4. Install the deadbolt mechanism, cylinder, and thumbturn assembly securing all mounting hardware per manufacturer torque specifications.
5. Install the 1-1/8" x 2-3/4" no-lip strike on the door frame ensuring proper alignment with the 1" throw deadbolt.
6. Test deadbolt operation from both sides to verify proper key function, thumbturn operation, and automatic deadlocking when fully thrown. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Educational Facilities and Classroom Security
• Commercial Office Buildings
• Healthcare Institutions
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Industrial and Warehouse Facilities
• Retail Establishments

Why Choose Hager Quality?

Hager 3118 deadbolts deliver professional-grade security with Grade 1 certification and heavy-duty brass construction featuring concealed hardened steel roller protection. UL/cUL Listed for up to 3-hour fire rating and backed by a lifetime warranty for reliable performance in demanding commercial applications. Engineered for classroom and commercial environments where dependable security and code compliance are essential.
