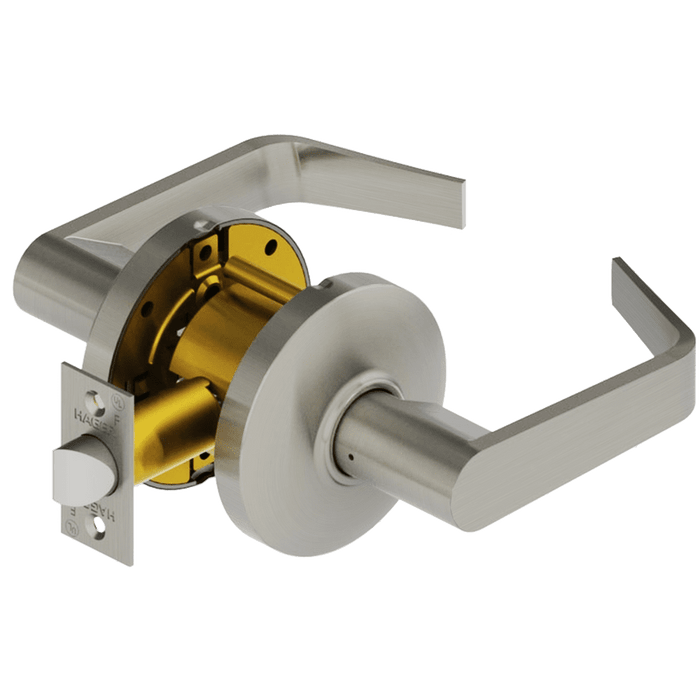

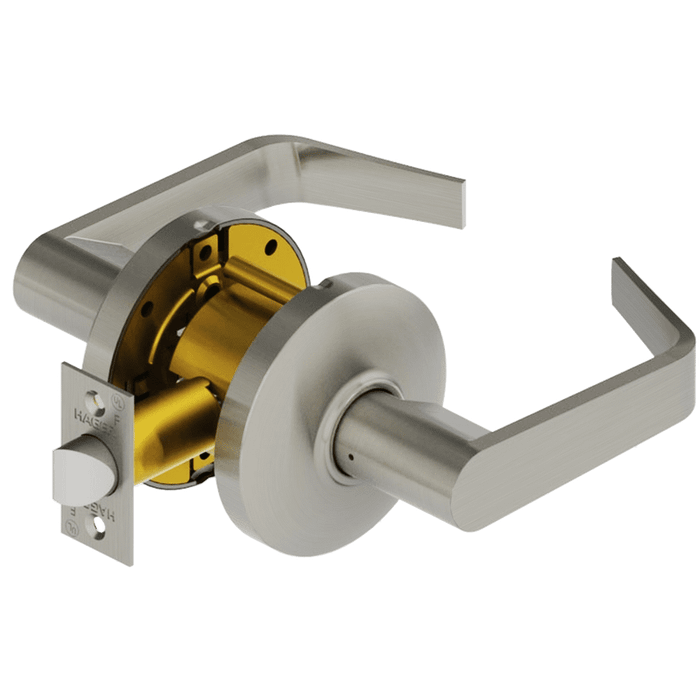

Hager 3410 Grade 1 Cylindrical Passage Lever Lock with Withnell Design

Hager 3410 Grade 1 Cylindrical Passage Lever Lock with Withnell Design

(No reviews yet) Write a Review

Model: 3410 WTN 26D
Selected Finish is
Selected Lever Type is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$355.27
$231.82
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 3410 Grade 1 Cylindrical Passage Lever Lock with Withnell Design

Commercial-Grade Passage Function Lever Lock

The Hager 3410 Grade 1 Cylindrical Passage Lever Lock delivers professional-grade security hardware engineered for demanding commercial, industrial, and institutional environments. This passage function lock (ANSI F75) operates with lever access from either side at all times, featuring the distinctive Withnell lever design and standard door preparation with 2-1/8" cross bore and 1" edge bore dimensions. Built to Grade 1 specifications with no exposed mounting screws for enhanced security and clean aesthetics.

Professional Features & Benefits

  • Standard Door Preparation: 2-1/8" diameter cross bore and 1" diameter edge bore for straightforward installation in standard door configurations.
  • Grade 1 Construction: Engineered to withstand the most abusive commercial, industrial, and institutional environments with superior durability and performance.
  • Passage Function Operation: ANSI F75 passage function allows latchbolt operation by lever from either side at all times for unrestricted access.
  • Withnell Lever Design: Professional WTN lever styling provides ergonomic operation and attractive appearance for commercial applications.
  • Secure Mounting System: No exposed mounting screws design enhances security while providing clean, professional appearance.
  • Flexible Door Compatibility: Accommodates door thickness range from 1-3/8" to 2" with 2-3/4" backset distance for versatile installation options.
  • Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection in commercial applications.

Technical Specifications

  • Backsets: 2-3/4"
  • Commercial/Residential: Commercial
  • Door Strike: ASA Strike
  • Door Thickness: 1-3/8" to 2"
  • Functions: Single Cylinder
  • Grade: Grade 1
  • Handle Type: Lever
  • Keyed: No
  • Lock Type: Cylindrical
  • Subcategory: Cylindrical Locks
  • Warranty: 5 Year

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness range of 1-3/8" to 2" and standard 2-1/8" cross bore with 1" edge bore dimensions.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for proper alignment.
  3. Prepare door by drilling required 2-1/8" diameter cross bore and 1" diameter edge bore holes as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the cylindrical lock to door per manufacturer torque specifications with no exposed mounting screws.
  5. Adjust operational components for proper alignment, latching, and smooth lever operation throughout the full range of motion.
  6. Test passage function operation to verify proper lever function from both sides and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Industrial and Warehouse Facilities
  • Institutional Buildings
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager 3410 cylindrical locks deliver professional-grade reliability with Grade 1 construction engineered to withstand the most abusive commercial, industrial, and institutional environments. 5 Year warranty coverage provides added confidence for demanding applications. Built for dependable performance where commercial-grade security hardware is essential.

Product Specs

Warranty:
5 Year
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Cylindrical Locks
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Grade:
Grade 1
Product Attribute:
Cylindrical Locks
Product Model:
3410
Product Function:
Passage/Hall/Closet
Door Thickness Range:
1-3/8" to 2"
Door Strike:
ASA Strike
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware
