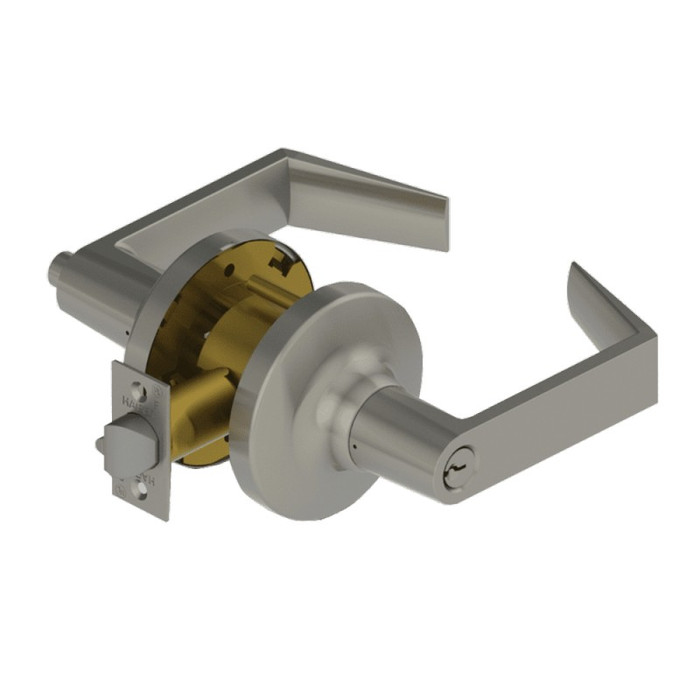

Hager 3453 Grade 1 Entry Cylindrical Lock with Conventional Cylinder

Hager 3453 Grade 1 Entry Cylindrical Lock with Conventional Cylinder

Heavy-Duty Commercial Grade Cylindrical Lock Solution

The Hager 3453 Grade 1 Entry Cylindrical Lock delivers professional-grade security for commercial, industrial, and institutional applications. This heavy-duty cylindrical lock features a conventional cylinder design with multiple backset options including standard 2-3/4" and optional 2-3/8", 3-3/4", and 5" configurations. Built for door thickness ranging from 1-3/8" to 2", the lock includes a deadlocking latchbolt with 1/2" throw and stainless steel construction for enhanced security and durability.

Professional Features & Benefits

• Multiple Backset Options: Standard 2-3/4" backset with optional 2-3/8", 3-3/4", and 5" configurations for versatile installation requirements.
• Door Thickness Compatibility: Accommodates door thickness from 1-3/8" to 2" for wide application flexibility.
• Heavy-Duty Construction: Heavy gauge steel chassis with zinc dichromate coating provides exceptional corrosion resistance and durability.
• Grade 1 Certification: BHMA Certified ANSI A156.2, Series 4000, Grade 1 for the highest level of commercial performance and security.
• Fire Rating Compliance: UL/cUL Listed for all functions up to 3 hours "A" label single doors with UL10C Positive Pressure Rating.
• Deadlocking Security: 1/2" throw stainless steel latchbolt with deadlocking feature prevents manipulation when door is closed.
• Professional Installation: Thru-post mounted design with no exposed mounting screws and non-handed operation for simplified installation.
• Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection.
• No exposed mounting screws
• Non-handed
• Free Wheeling Levers

Technical Specifications

• Applications: Extra Heavy Duty Commercial; Industrial; Institution
• Backsets: 2-3/4" (70mm) - Standar; 2-3/8" (60mm) - Optional; 3-3/4" (94mm) - Optional; 5" (128mm) - Optional
• Certifications: ADA Compliant ANSI A117.1 Accessibility Code; UL/cUL Listed for all functions up to 3 hours "A" label single doors; UL10CPositive Pressure Rated; BHMA Certified ANSI A156.2, Series 4000, Grade 1; ANSI A250.13 Severe Windstorm Compliant; Miami Dade County, FL NOA #22-0816.08
• Commercial/Residential: Commercial
• Cylinder and Keyways: Keyed Different - standard; Cylinder drilled 6 pin, Keyed 5 pin - standard; Other Keying options, including 6 pin keyed, available from factory; Zero bit cylinders will be 6 pin keyed; SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately; LFIC Zero-BIt or combinated, brass 6 pin cores sold separately
• Door Strike: ASA Strike
• Door Thickness: 1-3/8" to 2"
• Finishes: US3, US4, US10B, US26, US26Dand BLK; Anti-Microbial Coating (US26Dfinish only)
• Functions: Single Cylinder
• Grade: Grade 1
• Handle Type: Lever
• Keyed: Yes
• Lock Type: Cylindrical
• Notes: SFIC option available (Cores are sold separately - standard); LFIC option available (Cores sold separately - standard)
• Options: Lead Lining; Tactile Warning; Split Finish
• Strikes: 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike; Optional strikes available
• Subcategory: Cylindrical Locks
• Warranty: Lifetime

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, backset distance, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager cylindrical locks deliver professional-grade reliability with heavy gauge steel construction and zinc dichromate coating for superior corrosion resistance. BHMA Grade 1 certification and UL fire rating up to 3 hours ensure compliance with the most demanding commercial building codes. 5 Year warranty coverage provides added confidence for critical security applications where dependable performance is essential.

Support Resources

• 3500 Series Grade 2 Lever Set Installation Instructions (PDF)
• 3500 Series Grade 2 Knob Set Installation Instructions (PDF)
• 2525 Series Grade 2 Lever Set Installation Instructions (PDF)
• 3800 Series Mortise Lock Sectional Installation Instructions (PDF)
• Lockset Knob and Lever Options (PDF)
• 3935 ASA Strike - Wood Frame Template - T-LS00166-Rev04.pdf (PDF)
• 3935 ASA Strike - Metal Frame Template - T-LS00176-Rev06.pdf (PDF)
• 3400 Series Door Template - 3400_Series_Dr.pdf (PDF)
• 3400 Series Metal Door Template - T-LS00183-Rev03.pdf (PDF)
• 3400 Series Wood Door Template - T-LS00145-Rev02.pdf (PDF)
• 3400 Series RC Wood Door Template - T-LS00151-Rev02.pdf (PDF)
• T-LS00162-Rev06.pdf (PDF)
• T-LS00163-Rev03.pdf (PDF)
• T-LS00178-Rev06.pdf (PDF)
• T-LS00179-Rev04.pdf (PDF)
• 3400 Series Installation Instructions - I-LS00766.pdf (PDF)
• LFIC Tailpiece and Core Installation Instruction I-LS01977-Rev1.pdf (PDF)
