Hager 3540 Grade 2 Privacy Cyl...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$258.66
$132.65

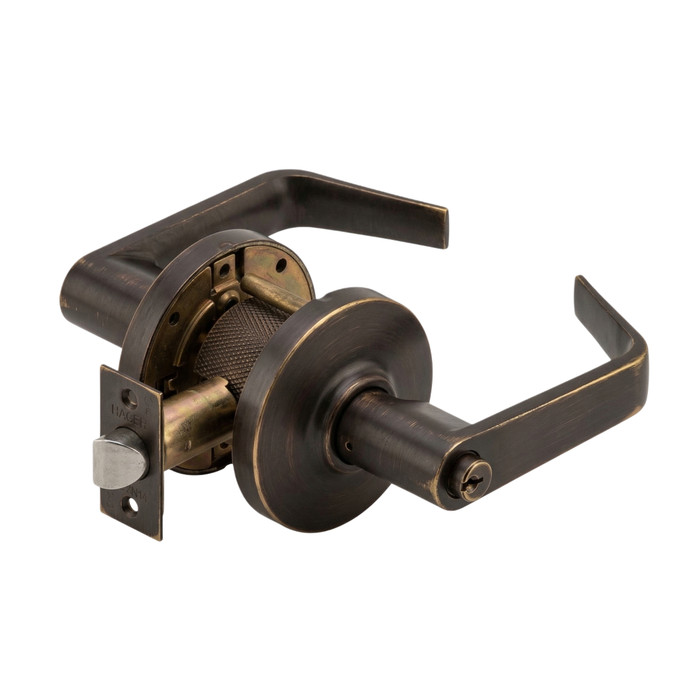

Hager 3540 Grade 2 Privacy Cylindrical Lever Lock with Withnell Design

Hager 3540 Grade 2 Privacy Cylindrical Lever Lock with Withnell Design

(No reviews yet) Write a Review

Model: 3540WTN3
Selected Finish is
Selected Handle Design Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$258.66
$132.65
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 3540 Grade 2 Privacy Cylindrical Lever Lock with Withnell Design

Commercial-Grade Privacy Lock Solution

The Hager 3540 Privacy Cylindrical Lock delivers professional-grade security for commercial applications with Grade 2 BHMA certification and ADA compliant design. This non-keyed privacy lock features a 2-3/4" standard backset with optional 2-3/8" configuration, accommodating door thickness from 1-3/8" to 2". The Withnell lever design provides reliable operation with wrought brass, bronze, and stainless steel exposed trim options, while the 1/2" throw stainless steel latchbolt ensures secure latching performance.

Professional Features & Benefits

  • Door Compatibility: Accommodates door thickness from 1-3/8" to 2" with standard 2-3/4" backset or optional 2-3/8" backset for versatile installation options.
  • Grade 2 Durability: BHMA A156.2 Grade 2 certified construction provides reliable performance for standard duty commercial applications.
  • ADA Compliant Design: Non-handed lever design meets ANSI A117.1 Accessibility Code requirements and is easily field reversible for universal installation.
  • Heavy-Duty Construction: Wrought brass, bronze, and stainless steel exposed trim with zinc-based plated levers provide exceptional durability for commercial use.
  • Independent Spring System: High strength torsion springs in both inside and outside rose liners allow bi-directional lever movement without lever sag.
  • Fire Rating Compliance: UL/cUL Listed for all functions up to 3 hours "A" label single doors with UL10C Positive Pressure Rating.
  • Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection.
  • Privacy Function Operation: Push button locking from inside with emergency release outside, operating inside lever, or closing door unlocks for safety and convenience.
  • Latchbolt operated by lever from either side. Outside lever is locked by push button and unlocked by emergency release outside, operating inside lever or closing door.

Technical Specifications

  • ANSI/BHMA: F76A
  • Applications: Standard Duty Commercial;
  • Backsets: 2-3/4" (70 mm) standard;
  • Certifications: ADA Compliant ANSI A117.1 Accessibility Code
  • Commercial/Residential: Commercial
  • Door Strike: 1-1/4" x 4-7/8" ASA Strike
  • Door Thickness: 1-3/8" - 2" (35 mm - 51 mm);
  • Exposed Trim: Wrought brass, bronze, and stainless steel;
  • Finishes: US26D, US3, US10B;
  • Function: Privacy/Bed/Bath
  • Functions: Privacy (F76A);
  • Grade: Grade 2
  • Handle Type: Lever
  • Keyed: No
  • Lever Options: Withnell;
  • Lock Type: 1/2" (13 mm) throw, stainless steel;
  • Options: Additional latchbolts and strikes available.
  • Rose Diameter: 3-11/32"
  • Standard Door Prep: Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
  • Subcategory: Cylindrical Locks
  • Warranty: 5 Year

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 2", backset distance, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces including 2-1/8" cross bore and 1" edge bore.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager 3540 cylindrical locks deliver professional-grade reliability with wrought brass, bronze, and stainless steel construction rated for Grade 2 commercial applications. 5 Year warranty coverage provides added confidence for demanding commercial installations. Engineered for standard duty commercial applications where dependable privacy function and ADA compliance are essential.

Support Resources

Manufacturer Resources

Product Specs

Rose Diameter:
3-11/32"
Warranty:
5 Year
Keyed Function:
Non-Keyed
Grade:
Grade 2
ANSI/BHMA:
F76A
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Cylindrical Locks
Keyed:
No
Commercial/Residential:
Commercial
Function Description:
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Lock Type:
Cylindrical
Handle Type:
Lever
Lock Function:
Privacy/Bed/Bath
Product Attribute:
Cylindrical Locks
Product Model:
3540
Product Function:
Privacy/Bed/Bath
Door Thickness Range:
1-3/8" to 2"
Door Strike:
1-1/4" x 4-7/8" ASA Strike
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware
