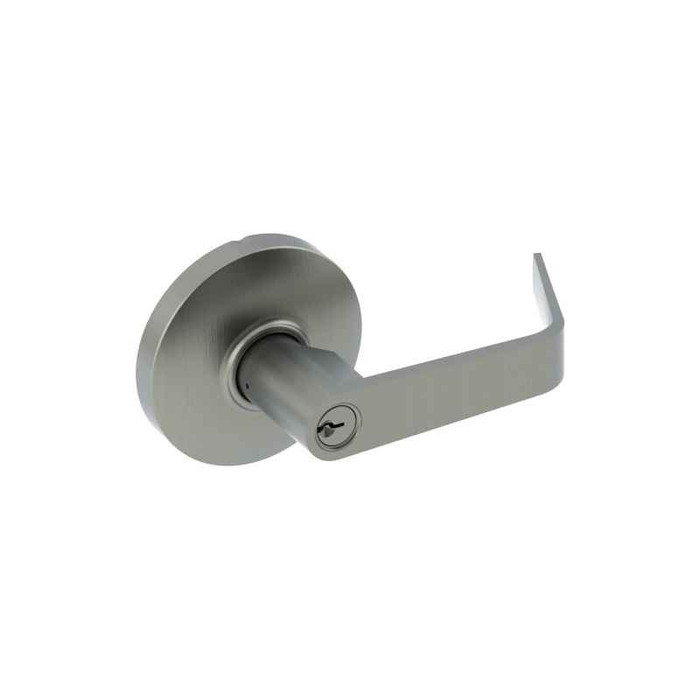

Hager 3553 Grade 2 Cylindrical Withnell Entry Lever with 2-3/4" Backset, ASA Strike and Schlage C Keyway

Applications

Standard Duty Commercial

Backsets

• 2-3/4" (70mm)

Certifications

• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for all functions up to 3 hours "A" label single doors
• UL10C Positive Pressure Rated
• BHMA Certified ANSI A156.2, Series 4000, Grade 2
• ANSI A250.13 Severe Windstorm Compliant (Levers

Cylinders/Cores

• Keyed Different - standard
• Cylinder drilled 6 pin, Keyed 5 pin - standard
• Other Keying options, including 6 pin keyed, available from factory
• Zero bit cylinders will be 6 pin keyed
• SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately

Door Thickness

1-3/8" - 2" (35 mm - 51 mm)

Exposed Trim

Wrought brass, Bronze, and Stainless steel

Finishes

• US3, US4, US10B, US26, US26D and BLK
• Anti-Microbial coating (US26D finish only)

Functions

Entry (F109)

Keyway

Schlage C - Standard, other keyways optional

Latchbolt Type

• 1/2" (13 mm) throw, stainless steel
• 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
• 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
• Deadlocking latchbolt prevents manipulation when door is closed

Lock Chassis

Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty

Notes

• No exposed mounting screws
• Non-handed

Options

• Lead Lining
• Tactile Warning
• Split Finish

Rose Diameter: 3-11/32" (85 mm)

Strikes

• 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
