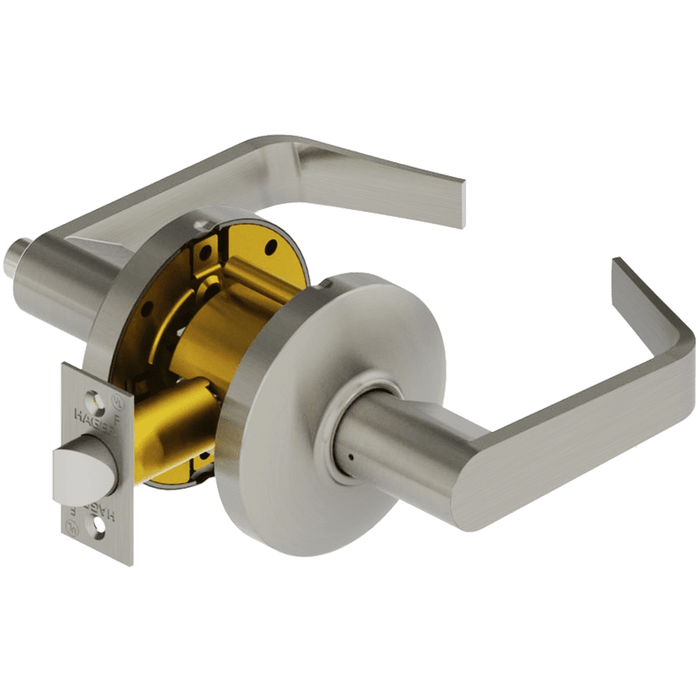

Hager 3610 - 3600 Series 3600 Series Grade 2 Tubular Passage Lever with Adjustable Backset

Applications

• Medium Duty Commercial
• Heavy Duty Residential

Backsets

Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)

Certifications

• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for all functions up to 3 hours "A" label single doors
• UL10C Positive Pressure Rated
• BHMA Certified ANSI A156.2, Series 4000, Grade 2

Door Thickness

1-3/8" - 1-3/4" (35 mm - 45 mm)

Exposed Trim

• Rose - Wrought brass, bronze, and stainless steel
• Lever - Zinc based, plated to match BHMA symbols

Finishes

US3, US4, US10B US26 and US26D

Functions

Passage (F75)

Latchbolt Type

• 1/2" (13 mm) throw, stainless steel
• 1" x 2-1/4" (25 mm x 57 mm) faceplate
• Square corner faceplate standard, round corner optional

Lever Options

Archer, August and Withnell

Notes

• No exposed mounting screws
• Non-handed

Options

Split Finish

Rose Diameter

2-15/16" (75 mm)

Strikes

• 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
• Optional strikes available

Warranty

Five-Year
