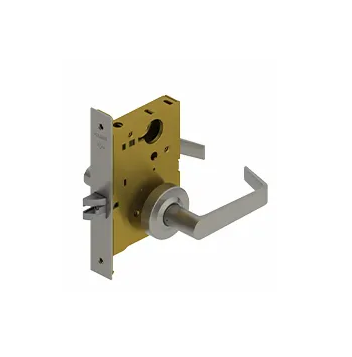

Hager 3810E 3800 Series Grade 1 Passage Mortise Lock with Escutcheon and 2-3/4" Backset

Hager 3810E 3800 Series Grade 1 Passage Mortise Lock with Escutcheon and 2-3/4" Backset

Heavy-Duty Commercial Grade Mortise Lock Solution

The Hager 3810E delivers professional-grade passage function with BHMA Grade 1 certification for demanding commercial applications. This non-keyed mortise lock features a 2-3/4" backset and accommodates door thickness from 1-3/4" to 2-1/2". Built with cast zinc construction and a 3/4" throw latchbolt with anti-friction tongue, this lock provides reliable operation with UL/cUL listing for up to 3-hour fire-rated applications and ADA compliance per ANSI A117.1.

Professional Features & Benefits

• Door Compatibility: Accommodates door thickness from 1-3/4" to 2-1/2" with 2-3/4" backset for versatile commercial installations.
• BHMA Grade 1 Certification: BHMA Certified ANSI A156.13, Series 1000, Grade 1 for heavy-duty commercial, industrial, and institutional applications.
• Fire Rating Compliance: UL/cUL Listed for all functions up to 3 hours "A" label single doors with UL10C Positive Pressure Rating.
• Heavy-Duty Construction: Cast zinc exposed trim with all stainless steel 3/4" throw latchbolt featuring anti-friction tongue for smooth operation.
• Field Reversible Design: Body is easily field reversible with self-adjusting case for beveled doors and concealed thru-bolts for clean appearance.
• ADA Compliance: Meets ANSI A117.1 Accessibility Code requirements for barrier-free access applications.
• Multiple Lever Options: Available in nine lever styles including Archer, August, Charles, Johnston, Joshua, Louis, Warren, William, and Withnell.
• Lifetime Warranty: Comprehensive lifetime warranty coverage for added confidence and long-term protection.

Technical Specifications

• ANSI/BHMA: BHMA Certified ANSI A156.13, Series 1000, Grade 1
• Applications: Heavy Duty Commercial; Industrial; Institutional
• Backsets: 2-3/4" (70mm)
• Certifications: ADA Compliant ANSI A117.1 Accessibility Code; UL/cUL Listed for all functions up to 3 hours "A" label single doors; UL10CPositive Pressure Rated; BHMA Certified ANSI A156.13, Series 1000, Grade 1
• Commercial/Residential: Commercial
• Cylinder and Keyways: 6 Pin Cylinders, Schlage C Keyway
• Door Strike: 1-1/4" x 4-7/8" ASA strike
• Door Thickness: 1-3/4" - 2-1/2"
• Electronic: No
• Escutcheons: 1-15/16" x 8" (50 mm x 203 mm)
• Finishes: US3, US4, US10B, US26, US26D, US32D*; *US32Dlook on a cast zinc lever; Withnell and William are the only lever options available in both zinc and stainless steel. For stainless steel, reference Withnell (WTS) or William (WLS) at the time of order.; US3, US4 and US26 subject to extended lead time
• Functions: Passage (F01)
• Keyed: No
• Lock Type: Cylindrical
• Notes: No exposed mounting screws; Concealed thru-bolts; Body is easily field reversible (shipped LHR by default); Self adjusting case for beveled doors
• Options: Tactile Warning; Lead Lining; Split Finish; Factory Handing Available (if specified); Request to Exit (RX)
• Strikes: 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike; Optional strikes available
• Subcategory: Cylindrical Locks
• Warranty: Lifetime

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/4" to 2-1/2", 2-3/4" backset, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces including the 4-5/16" x 6" x 1" lock chassis preparation.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for the mortise lock body and 1-15/16" x 8" escutcheons.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications using concealed thru-bolts.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, utilizing the self-adjusting case for beveled doors.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Industrial and Warehouse Facilities
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Institutional Facilities

Why Choose Hager Quality?

Hager mortise lock products deliver professional-grade reliability with cast zinc construction and all stainless steel latchbolt components rated for heavy-duty commercial applications. Comprehensive lifetime warranty coverage provides added confidence for demanding institutional and industrial environments. Engineered with BHMA Grade 1 certification and UL fire rating compliance where dependable performance and code compliance are essential.
