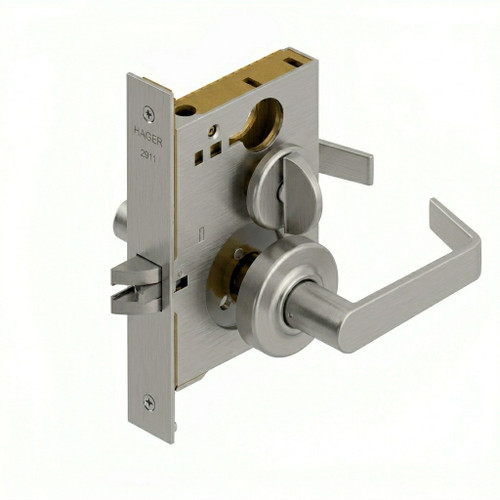

Hager 3840S - 3800 Series Grade 1 Privacy Mortise Lock, Non-keyed, 2-3/4" Backset

Applications

• Heavy Duty Commercial
• Industrial
• Institutional

Backsets

2-3/4" (70mm)

Certifications

• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for all functions up to 3 hours "A" label single doors
• UL10C Positive Pressure Rated
• BHMA Certified ANSI A156.13, Series 1000, Grade 1

CTC Length

3-5/8" (92mm)

Door Thickness

1-3/4" - 2" (45 mm - 51 mm) Please specify door thickness if greater than 1-3/4" (45 mm) or the door has an offset prep

Exposed Trim

• Cast Zinc -Standard
• Cast Stainless Steel - Optional for Withnell (WTS) and William (WLS) only

Finishes

• US3, US4, US10B, US26, US26D, US32D*
• *US32D look on a cast zinc lever
• Withnell or William are the only lever options available in both zinc and stainless steel. For stainless steel, reference Withnell (WTS) or William (WLS) at the time of order
• US3, US4 and US26 subject to extended lead time

Functions

Privacy (F22)

Latchbolt Type

3/4" (19 mm) throw with anti-friction tongue, all stainless steel

Lever Options

Archer, August, Charles, Johnston, Joshua, Louis, Warren, William and Withnell

Lock Chassis

4-5/16" x 6" x 1" (110 mm x 152 mm x 25 mm)

Notes

• Emergency release on exterior side via supplied key
• No exposed mounting screws
• Concealed thru-bolts
• Body is easily field reversible (shipped LHR by default)
• Self adjusting case for beveled doors

Options

• Tactile Warning
• Lead Lining
• Split Finish
• Factory Handing Available (if specified)
• ADA Thumbturn

Rose Diameter

2-7/16" (62mm)

Strikes

• 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
• Optional strikes available

Warranty

Lifetime
