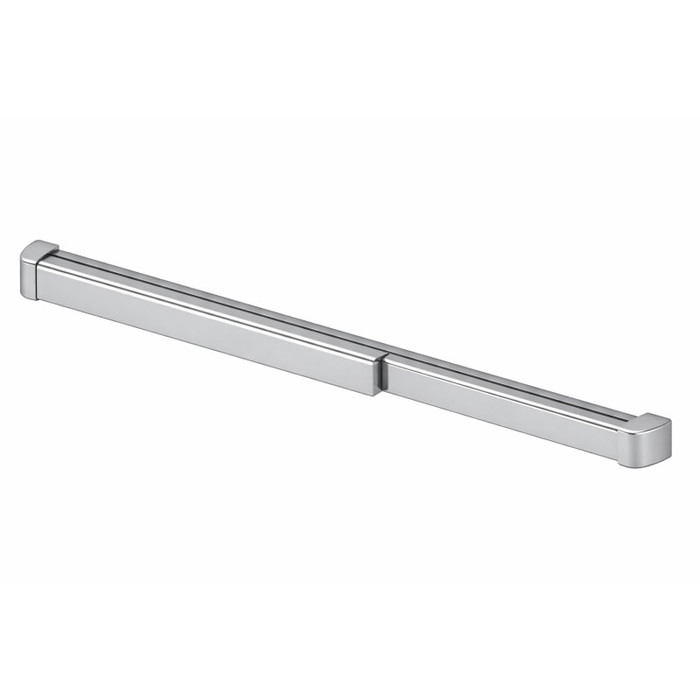

Hager 4501 Series 36" Grade 1 Dummy Wide Stile Rim Exit Device

Hager 4501 Series 36" Grade 1 Dummy Wide Stile Rim Exit Device

Professional Heavy-Duty Commercial Exit Device Solution

The Hager 4501 Series 36" Grade 1 Dummy Wide Stile Rim Exit Device delivers professional-grade performance for heavy-duty commercial applications. This BHMA certified Grade 1 exit device features extruded aluminum construction with stainless steel components and is designed for 36" doors with wide stile configurations. Engineered to meet Life Safety codes and Fire Safety requirements, this device provides superior security and reliability for office buildings, medical facilities, schools, and hospitality structures.

Professional Features & Benefits

• Door Width Compatibility: Designed for 36" doors with minimum 5-3/8" stile width for single door applications with standard 5/8" stop.
• Heavy-Duty Construction: Extruded aluminum body with stainless steel push bar cover and die cast caps provides exceptional durability for commercial applications.
• Grade 1 Performance: BHMA certified Grade 1 rating ensures superior performance and reliability in demanding commercial environments.
• Professional Latchbolt: 3/4" throw Pullman type with automatic dead-latching stainless steel construction for enhanced security.
• Versatile Projection: 3" projection in undogged position and 2-5/8" in dogged position for flexible installation requirements.
• Multiple Certification Compliance: UL305 Listed for Panic Hardware, UL/cUL Listed for up to 3 hours, and complies with ANSI A117.1 for accessible buildings.
• Lifetime Warranty: Properly applied and maintained devices are backed by manufacturer lifetime warranty for added confidence and protection.
• Hurricane Zone Approval: Meets ANSI requirements for Severe Windstorm Components and approved for High Velocity Hurricane Zone areas.

Technical Specifications

• ADA Compliant: No
• Applications: Heavy Duty Commercial
• Certifications: ANSI/BHMA A156.3-2014 Grade 1
• Commercial/Residential: Commercial
• Cover: Stainless steel, zinc
• Cylinder and Keyways: Rim
• Dogging: Hex key dogging standard on panic rated devices
• Door Thickness: 1-3/4" (44mm) - Standard up to 3", except with night latch which is 2-1/2".
• Door Width: 6'' (914mm) field sizeable to 30'' (762 mm) panic-rated door and 28" (711mm) fire-rated door
• Ends Caps: Standard end cap (zinc)
• Fasteners: Wood and machine screws
• Finishes: US3, US4, US10B, US26, US26D, US32D, BLK;
• Fire Rating: No
• Functions: 1 - Exit Only (device)
• Grade: Grade 1
• Lock Type: 3/4" (19mm) throw, pullman type with automatic dead-latching, stainless steel
• Notes: Recommended to be used on appropriately reinforced doors
• Projection: 3" (76mm) in undogged position
• Series: 4501
• Stile Width: 5-3/8" (137mm) - Minimum stile width required for single doors and standard 5/8" (16 mm) stop
• Strikes: Stainless steel with plated rollers - Included standard with panic devices
• Subcategory: Rim Exit Devices
• Trim: Archer, August, Charles, Johnston, Joshua, Louis, Warren, William or Withnell lever with escutcheon
• Wood Door Compatible: No

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness of 1-3/4" standard up to 3", stile width of minimum 5-3/8", and proper door reinforcement.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications using appropriate wood screws, machine screws, or thru-bolts.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion with 3" projection in undogged position.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager 4501 Series exit devices deliver professional-grade reliability with extruded aluminum construction and stainless steel components rated for heavy-duty commercial applications. Properly applied and maintained devices are backed by a lifetime warranty providing peace of mind from distributor to building owner. Engineered for demanding commercial applications where dependable performance and Grade 1 certification are essential.
