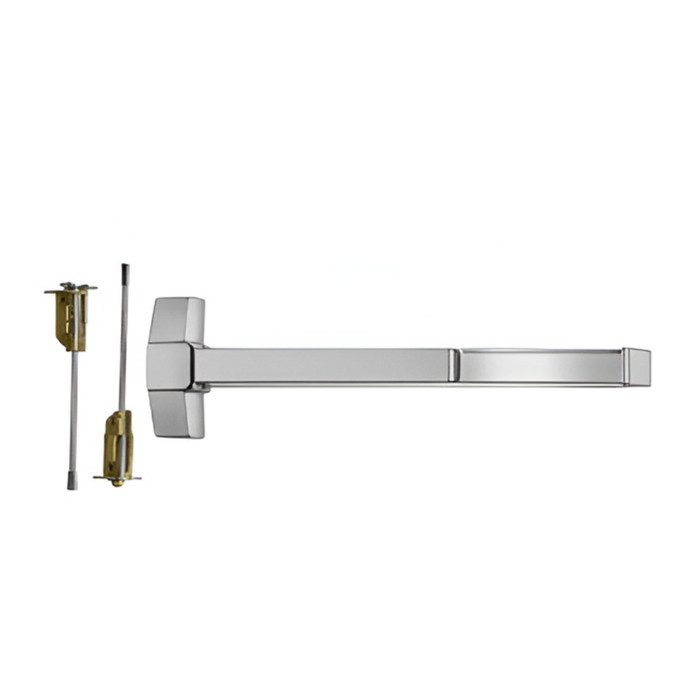

Hager 4501 Series 48" Grade 1 Concealed Vertical Rod Exit Device with Wide Stile Pushpad

Hager 4501 Series 48" Grade 1 Concealed Vertical Rod Exit Device with Wide Stile Pushpad

Heavy-Duty Commercial Exit Device Solution

The Hager 4501 Series 48" Grade 1 Concealed Vertical Rod Exit Device delivers professional-grade security and performance for demanding commercial applications. This BHMA Grade 1 certified device features extruded aluminum construction with stainless steel pushbar cover and dead locking stainless steel Pullman type latchbolts. Designed for 48" doors field sizeable to 36" for panic or fire-rated applications, with minimum stile width requirements of 5-3/8" for single doors and various configurations for double door installations.

Professional Features & Benefits

• Door Width Compatibility: 48" field sizeable to 36" for panic-rated or fire-rated door applications with precise stile width requirements.
• Heavy-Duty Construction: Extruded aluminum body with stainless steel pushbar cover, die cast caps and covers for exceptional durability in commercial environments.
• Grade 1 Performance: BHMA certified Grade 1 rating meeting ANSI/BHMA A156.3-2014 standards for heavy-duty commercial applications.
• Dead Locking Security: 3/4" throw Pullman type latchbolts with automatic dead-latching in stainless steel construction.
• Flexible Door Thickness: Accommodates 1-3/4" standard up to 3" door thickness, except with night latch which is 2-1/2".
• Multiple Certifications: UL305 Listed for Panic Hardware, UL/cUL Listed for up to 3 hours for "A" label single doors, and Miami-Dade County NOA approved.
• Hex Key Dogging: Standard hex key dogging on panic rated devices with optional cylinder dogging available.
• Lifetime Warranty: Properly applied and maintained devices backed by lifetime warranty for distributor and building owner confidence.

Technical Specifications

• ADA Compliant: No
• ANSI/BHMA: ANSI A156.3-2014
• Applications: Heavy Duty Commercial
• Certifications: ANSI/BHMA A156.3-2014 Grade 1
• Commercial/Residential: Commercial
• Cover: Stainless steel, zinc
• Cylinder and Keyways: Rim
• Dogging: Hex key dogging standard on panic rated devices
• Door Thickness: 1-3/4" (44mm) - Standard up to 3", except with night latch which is 2-1/2".
• Door Width: 6'' (914mm) field sizeable to 30'' (762 mm) panic-rated door and 28" (711mm) fire-rated door
• Ends Caps: Standard end cap (zinc)
• Fasteners: Wood and machine screws
• Features: Provide Necessary Security and Performance At Economy Pricing
• Finishes: US3, US4, US10B, US26, US26D, US32D, BLK;
• Fire Rating: No
• Functions: 1 - Exit Only (device)
• Grade: Grade 1
• Lock Type: 3/4" (19mm) throw, pullman type with automatic dead-latching, stainless steel
• Notes: Recommended to be used on appropriately reinforced doors
• Projection: 3" (76mm) in undogged position
• Series: 4501
• Stile Width: 5-3/8" (137mm) - Minimum stile width required for single doors and standard 5/8" (16 mm) stop
• Strikes: Stainless steel with plated rollers - Included standard with panic devices
• Subcategory: Rim Exit Devices
• Trim: Archer, August, Charles, Johnston, Joshua, Louis, Warren, William or Withnell lever with escutcheon

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 3"), stile width (minimum 5-3/8" for single doors), and door width compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for the concealed vertical rod configuration.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for vertical rod installation.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring proper alignment of vertical rods.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, including pushbar activation and latchbolt engagement.
6. Test device operation to verify proper function including panic operation, dogging mechanism, and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager 4501 Series exit devices deliver professional-grade reliability with extruded aluminum construction and stainless steel components rated for heavy-duty commercial applications. Properly applied and maintained devices are backed by a lifetime warranty for added confidence and protection. Engineered for demanding commercial applications where dependable performance and BHMA Grade 1 certification are essential.
