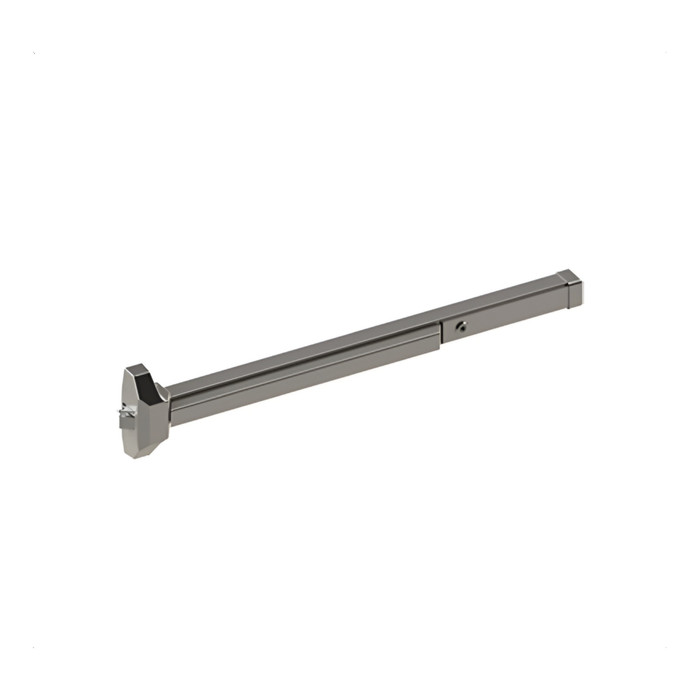

Hager 4701 Series Fire Rated Rim Exit Device - 36" Standard Duty Commercial Grade

Hager 4701 Series Fire Rated Rim Exit Device - 36" Standard Duty Commercial Grade

Professional Fire-Rated Exit Device Solution

The Hager 4701 Series Fire Rated Rim Exit Device delivers superior performance for 36" standard stile doors in light commercial and standard duty applications. This UL10C Positive Pressure and UL10B Neutral Pressure rated device features dead locking stainless steel Pullman type latchbolts and meets ANSI A117.1 accessibility requirements. Constructed with zinc, stainless steel, brass, and bronze materials, this Grade 1 BHMA certified exit device provides necessary security and performance at economy pricing with a comprehensive five-year warranty.

Professional Features & Benefits

• Fire Safety Compliance: UL10C Positive Pressure and UL10B Neutral Pressure rated for comprehensive fire safety requirements in commercial applications.
• Grade 1 BHMA Certification: ANSI/BHMA A156.3-2014 certified ensuring the highest level of performance and durability for commercial use.
• 36" Door Compatibility: Specifically sized for 36" (914 mm) wide doors with standard stile construction for precise fit and optimal performance.
• Superior Latch Construction: Dead locking stainless steel Pullman type latchbolts provide enhanced security and reliable latching performance.
• Multi-Material Construction: Zinc, stainless steel, brass, and bronze components deliver exceptional durability and corrosion resistance.
• Severe Weather Resistance: ANSI A 250.13 Severe Windstorm Resistant Component certification for demanding environmental conditions.
• ADA Compliance: Meets ANSI A117.1 accessibility requirements for barrier-free building design and universal access.
• Five-Year Warranty: Comprehensive manufacturer warranty coverage for added confidence and long-term protection.

Technical Specifications

• ADA Compliant: Yes
• ANSI/BHMA: ANSI A156.3-2014
• Applications: Standard Duty Commercial
• Certifications: BHMA Certified ANSI/BHMA
• Commercial/Residential: Commercial
• Cylinder and Keyways: Rim
• Dogging: Hex Key Dogging
• Features: Provide Necessary Security and Performance At Economy Pricing
• Fire Rating: Yes
• Grade: Grade 1
• Installation Made Easy: For the convenience of our customers, Hager Companiesintroduced several key features to the exit device market.• Thru-bolts are included with every model. Wood and machine screws are also provided standard in every package.• Slotted strikes speed up installation, allowing the installer to make easy adjustments to align the latch to the strike.• Escutcheon trim is surface mounted with the locking mechanism built inside, reducing door preparation and installation time by requiring fewer holes in the door.
• Series: 4700
• Shim Kits (Rim only): Shim kits are available for devices on doors with glass bead kits or other interfacing moldings. Each kit contains two /8” (3.2 mm) shims and the appropriate longer fasteners.
• Sizing: The exit device is cut for 36” (914 mm) and 48” (1219 mm) wide doors. For other door widths, cut exit device to appropriate length. Recommended overall length of exit device is equal to the door width minus four inches. The surface vertical rod devices are supplied for an 84” (2134 mm) opening standard, but can be ordered for a 96” (2438 mm) opening. Extension rods are available to accommodate openings taller than 96” (2438 mm) up to 120” (3048 mm).
• Subcategory: Rim Exit Devices
• Wood Door Compatible: No

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications using included thru-bolts, wood screws, and machine screws.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion using slotted strikes for easy alignment adjustments.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager 4701 Series exit devices deliver professional-grade reliability with superior materials including dead locking stainless steel Pullman type latchbolts and multi-material construction of zinc, stainless steel, brass, and bronze components. Backed by a comprehensive five-year warranty and Grade 1 BHMA certification, this fire-rated device is engineered for demanding commercial applications where dependable performance and life safety compliance are essential.
