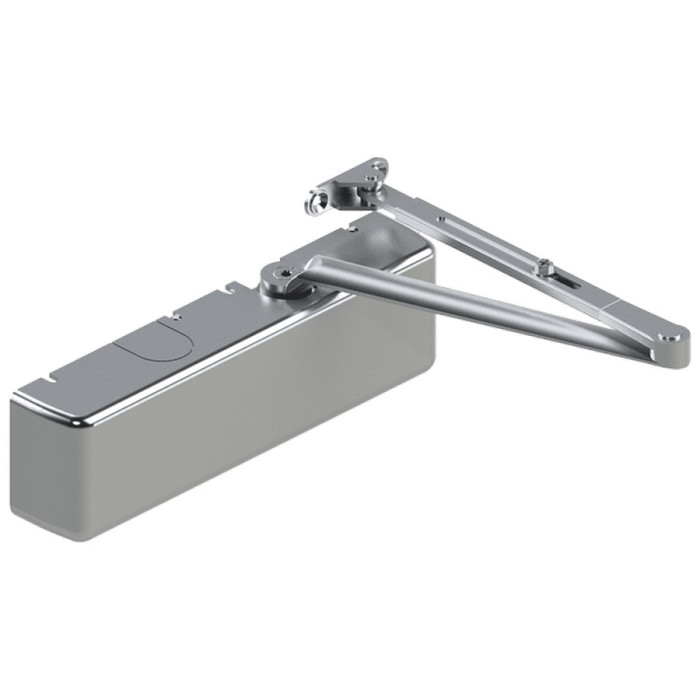

Hager 5100 Grade 1, Cast Iron Door Closer Multi-Mount Size 1 to 6 Adjustable

5100 Series Closers are heavy duty door closers constructed of cast iron to be installed on exterior and interior doors that are subject to high use and potential abuse. They are designed and engineered for reliability and superior performance. The commercial applications ideal for these closers include schools, medical facilities, institutions and hospitals as well as office buildings and any entrance door with high foot traffic.

5100 Series Closers have a full rack and pinion operation, with a heat treated steel piston and triple heat treated steel spindle. The closers are non-handed to permit installation on doors of either hand. The sizing is adjustable from size 1 through size 6. These design features make this closer the ideal choice for doors with a maximum weight of 330 lbs.

Applications:

• Grade 1 Heavy Duty Surface Door Closer adjustable sizes 1-6;
• Ideal for schools, hospitals, and other high-use environments.

Certifications:

• BHMA Certified ANSI A156.4, adjustable sizes 1-6;
• ADA compliant ANSI A117.1 Accessibility Code;
• UL/cUL Listed for up to 3 hours
• UL10C Positive Pressure Rated

Material: Cast iron, treated with rust inhibiting primer - standard

Finishes:

• ALM, BLK, BRZ, DBZ, GOL;
• Rust inhibiting primer - Standard.

Door Thickness:

• 1-3/4" (44 mm) - standard;
• 1-3/8" - 2-1/4" (36 mm - 57 mm) thick door - optional.

Fasteners:

• Self-reaming, self-tapping wood and machine screws;
• Sex nuts and bolts.

Handing: Non-handed

Maximum Door Weight: 330 lbs.

Notes:

• To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with our door closer products;
• The recommended temperatures for prolonged closer use is between -40° F (-42° C) and 150° F (66° C).
• Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door
• If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. See adders for more information (add the list price of the option to the list price of the closer and take standard discounts).
• Accessories may not be available in all finishes. Please contact Hager for availability and lead time.

Optional Arms:

• Tri-Pack Arm (Regular, Top Jamb and Parallel with Parallel Arm Bracket)- Standard
• Hold Open Arm (HO) - 5107
• Pull Side Stop Arm (PSS) - 5123
• Pull Side Hold Open Stop Arm (PSHOS) - 5124
• Extra Heavy Duty Arm (HD) - 5106
• Extra Heavy Duty Stop Arm (HDS) - 5125
• Extra Heavy Duty Hold Open Stop Arm (HDHOS) - 5961
• Extra Heavy Duty Hold Open Arm (HDHO) - 5108
• Extra Heavy Duty Cushion Stop Arm (HDCS)- 5955
• Extra Heavy Duty Hold Open Cushion Stop Arm (HDHOCS)- 5954
• Hold Open Stop Track Arm (HOTA)
• Non-Hold Open Stop Track Arm (NHOTA)
• Double Egress Hold Open Track Arm ((DEHOTA)
• Double Egress Non-Hold Open Track Arm (DENHOTA)

Optional Brackets:

• Extra clearance parallel arm bracket - 5935 (2")
• Extra heavy duty parallel arm support bracket - 5111

Valves:

• Adjustable backcheck, sweep, and latching valves- standard
• Delayed action valve - optional
• All valves are staked

Springs:

• One piece seamless steel spring tube;
• Double heat-treated, steel-tempered springs
• Precision-machined, heat-treated steel piston

Installation Instruction

Regular Arm Template

Hager EPD - Door Closers 5100
