Hager 780-054HD Half Surface Continuous Geared Hinge - Heavy Duty Aluminum Construction

Hager 780-054HD Half Surface Continuous Geared Hinge - Heavy Duty Aluminum Construction

Professional Heavy-Duty Continuous Hinge Solution

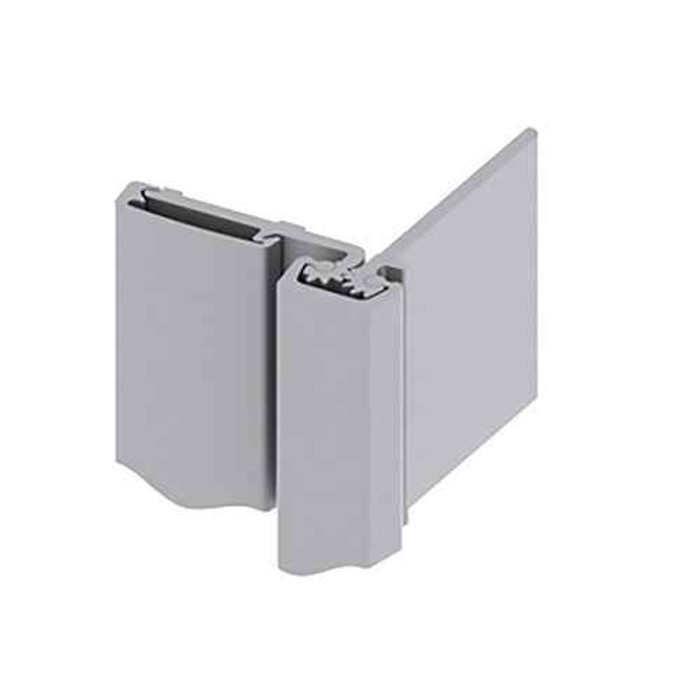

The Hager 780-054HD Half Surface Continuous Geared Hinge delivers heavy-duty performance for high frequency doors or heavy, medium frequency doors. Constructed from aluminum 6063-T6 material with available lengths of 79", 83", 85", 95", and 119", this hinge features a frame leaf alignment rib for proper installation and security molding with 1/8" (3 mm) inset. Fire rated up to 3-hour metal and 90 minute wood composite applications with studs, meeting ANSI/BHMA A156.26 C standards.

Professional Features & Benefits

• Heavy-Duty Construction: Aluminum 6063-T6 material engineered for high frequency doors or heavy, medium frequency doors with exceptional durability.
• Multiple Length Options: Available in 79", 83", 85", 95", and 119" lengths to accommodate various door sizes and applications.
• Fire Rating Compliance: Up to 3-hour metal and 90 minute wood composite fire rating with studs for code-compliant installations.
• Precision Installation Features: Frame leaf alignment rib ensures proper hinge location and security molding with 1/8" (3 mm) inset for enhanced security.
• Minimal Frame Reinforcement: No frame reinforcement required up to 200 lbs, with 16-gauge channel recommended for heavier applications.
• Flexible Fastener Options: Standard 1/4-20 x 1-1/4" Sexbolt fasteners and Dril-Kwik #12-24 X 11/16" flat head screws with additional options available.
• Electric Modification Ready: Power Transfer Preparation options (EPT 2) or (EPT 10) available for electrified applications.
• Lifetime Warranty: All Roton products have a lifetime warranty for long-term confidence and protection.
• Heavy duty for high frequency doors or heavy, medium frequency doors.

Technical Specifications

• Applications: Frame leaf alignment rib for proper hinge location;
• Clearance: 5/32" (4 mm) minimum recommended hinge side
• Commercial/Residential: Commercial
• Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.
• Electric Modifications: Power Transfer Preparation (EPT 2) or (EPT 10)
• Fasteners: Standard: 1/4-20 x 1-1/4" Sexbolt (fastener + Post)
• Features: Heavy duty for high frequency doors or heavy, medium frequency doors.
• Finishes: CLR, DBZ, BLK
• Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs).
• Length: 7 9", 83", 85", 95", 119"
• Material: Aluminum 6063-T6
• Notes: EPD: Roton Continuous Hinges Environmental Product Declaration
• Options: TIPIT® (see Roton accessories)
• Subcategory: Continuous Geared Hinges
• Warranty: Wll Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness and frame compatibility for half surface mounting configuration.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, utilizing the frame leaf alignment rib for proper positioning.
3. Prepare door and frame by drilling required holes for 1/4-20 x 1-1/4" Sexbolt fasteners or Dril-Kwik #12-24 X 11/16" flat head screws as specified.
4. Install hinge with security molding positioned for 1/8" (3 mm) inset and ensure 5/32" (4 mm) minimum clearance on hinge side plus standard lockside clearance.
5. Secure all mounting hardware per manufacturer torque specifications and verify proper alignment throughout the hinge length.
6. Test door operation to verify smooth function and proper clearances. Refer to manufacturer documentation for complete installation details and electric modification procedures if applicable.

Professional Applications

• High-Traffic Commercial Office Buildings
• Educational Facility Heavy-Use Doors
• Healthcare Institution Fire-Rated Openings
• Industrial and Warehouse Heavy Doors
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Retail Establishments with Frequent Access

Why Choose Hager Quality?

Hager 780-054HD continuous hinges deliver professional-grade reliability with aluminum 6063-T6 construction meeting ANSI/BHMA A156.26 C standards and fire ratings up to 3-hour metal applications. All Roton products include a lifetime warranty for added confidence and protection. Engineered for demanding commercial applications where heavy-duty performance and code compliance are essential.
