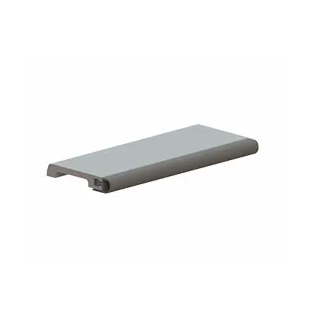

Hager 881S Hardware Compatible Jamb Weather Strip with Silicone Insert

Hager 881S Hardware Compatible Jamb Weather Strip with Silicone Insert

Professional Weather Sealing Solution for Commercial Door Applications

The Hager 881S Hardware Compatible Jamb Weather Strip delivers reliable weather sealing with a silicone insert designed for commercial door applications. This weatherstripping features 1/4" height and 1/4" length dimensions, providing effective smoke and draft control while maintaining hardware compatibility. Testing demonstrates the product withstands 600 pounds per square inch of force, ensuring durability in demanding commercial environments. UL Listed and BHMA certified for smoke and draft control applications.

Professional Features & Benefits

• Precise Dimensions: 1/4" height by 1/4" length sizing provides optimal fit for standard commercial door jamb applications.
• Heavy-Duty Performance: Testing showed product withstands 600 pounds per square inch of force for reliable long-term performance.
• Hardware Compatible Design: Engineered to work seamlessly with existing door hardware without interference or operational issues.
• Silicone Insert Construction: Durable silicone insert material provides excellent weather resistance and longevity in commercial applications.
• BHMA Certified Performance: BHMA Smoke and Draft Control certification ensures compliance with commercial building requirements.
• UL Listed Safety: UL Listed and UL Certified for fire-rated applications providing code compliance assurance.
• Complete Fastener Kit: Includes #6 x 5/8" pan head sheet metal screws with finish-matched plating for professional installation.
• Five-Year Warranty: Comprehensive five-year manufacturer warranty provides confidence and protection for commercial installations.

Technical Specifications

• Certifications: BHMA Smoke and Draft Control; EPD - Automatic Door Bottom Environmental Product Declaration
• Commercial/Residential: Commercial
• Fasteners: #6 x 5/8" Pan head sheet metal screws
• Finishes: MIL, DBA, BLA
• Inserts: Vinyl, Neoprene, Silicone, Pile
• Notes: Mil finish weatherstripping is supplied with zinc plated screws; Color anodized weatherstripping is supplied with screws plated to match; Hardware compatible; Testing showed product to withstand 600 lbs. per square inch of force
• Size: Height: 1/4" (6 mm) Strip length: 1/4" (6 mm)
• Subcategory: Door Thresholds
• Warranty: Five-Year Warranty

Installation & Operation

1. Measure jamb dimensions and cut weatherstripping to required length using appropriate cutting tools for clean, square ends.
2. Position weatherstripping on door jamb ensuring proper alignment with door closure and hardware clearance requirements.
3. Mark screw hole locations using weatherstripping as a template, spacing fasteners evenly along the length.
4. Pre-drill pilot holes to prevent material splitting and ensure secure fastener engagement.
5. Install weatherstripping using provided #6 x 5/8" pan head sheet metal screws, ensuring flush mounting without over-tightening.
6. Test door operation to verify proper seal contact without binding or interference with door movement or hardware function.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager weatherstripping products deliver professional-grade reliability with UL Listed certification and BHMA smoke and draft control compliance. Testing demonstrates 600 PSI force resistance with comprehensive five-year warranty coverage. Engineered for demanding commercial applications where dependable weather sealing and code compliance are essential.

Support Resources

• Commercial Hinges Catalog 2024 (PDF)
• Screw-on Weatherstripping Installation Instructions - I-TW00268-Rev03.pdf (PDF)
