Hager BB1362 Full Mortise Ball Bearing Swing Clear Hinge 5" Heavy Weight Stainless Steel

Hager BB1362 Full Mortise Ball Bearing Swing Clear Hinge 5" Heavy Weight Stainless Steel

Commercial-Grade Swing Clear Hinge Solution

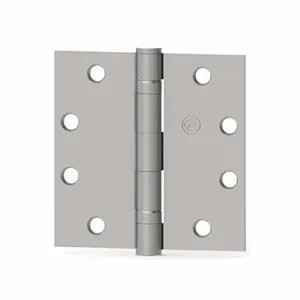

The Hager BB1362 is a heavy-weight full mortise ball bearing swing clear hinge designed for commercial applications requiring enhanced door clearance. This 5" x 5" stainless steel hinge features four ball bearings for smooth operation and projects the door 11/64" (4 mm) past the jamb stop when opened 90 degrees. Manufactured to ANSI/BHMA A156.1 standards with reversible operation from right-hand to left-hand configuration.

Professional Features & Benefits

• Swing Clear Design: Door projects 11/64" (4 mm) past jamb stop when opened 90 degrees, providing enhanced clearance for accessibility compliance and wide equipment passage.
• Heavy-Duty Ball Bearing Operation: Four precision ball bearings ensure smooth, long-lasting operation under heavy commercial use conditions.
• Stainless Steel Construction: Corrosion-resistant stainless steel material with stainless steel pin provides exceptional durability for institutional and healthcare environments.
• Full Mortise Installation: Both leaves mortise into door and frame for clean, professional appearance and maximum strength in commercial applications.
• Reversible Configuration: Factory assembled right-hand, field reversible to left-hand operation for installation flexibility.
• Non-Rising Removable Pin: Button tip and plug design allows for easy maintenance and door removal when required.
• ANSI Compliance: Manufactured in accordance with ANSI/BHMA A156.1 standards for commercial hinge performance and reliability.
• 5-Knuckle Design: Five-knuckle configuration provides enhanced strength and load distribution for heavy-weight door applications.
• Four ball bearings. Non-rising removable pin with button tip and plug.;

Technical Specifications

• ANSI/BHMA: ANSI A5121
• Applications: For use in hospitals or other institutional type buildings; For square edge doors;
• Bearing Type: Ball Bearing
• Commercial/Residential: Commercial
• Fastener Size - Machine: 1/2" x 12-24" FH;
• Fastener Size - Wood: 1-1/4" x 12" FH;
• Finishes: US32D;
• Knuckles: 5;
• Material: Stainless Steel with Stainless Steel Pin;
• Notes: When opened 90°, door projects 11/64" (4 mm) past stop of jamb.
• Subcategory: Swing Clear Commercial Hinges

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Healthcare Institutions and Hospitals
• Educational Facilities
• Commercial Office Buildings
• Institutional Buildings
• ADA Compliance Applications
• Heavy-Traffic Commercial Entrances
• Government and Municipal Buildings

Swing Clear Accessibility Design

The swing clear mechanism allows the door to project 11/64" (4 mm) past the jamb stop when opened 90 degrees, providing enhanced clear width for accessibility compliance and equipment passage. This design is particularly beneficial in healthcare facilities where wide equipment and wheelchairs require maximum door opening clearance.

Why Choose Hager Quality?

Hager commercial hinges are manufactured in accordance with ANSI/BHMA A156.1 standards using precision stainless steel construction with four ball bearings for reliable long-term performance. The company’s reputation as the industry’s premiere designer and manufacturer of architectural hinges ensures professional-grade reliability in demanding commercial applications where dependable door operation is essential.
