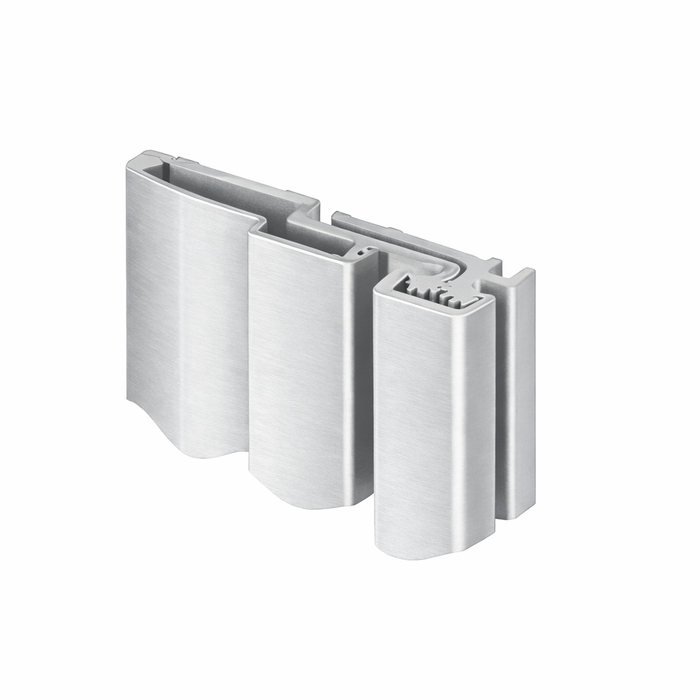

Hager Roton 780-210M Replacement Door Leaf Molding
Applications:
- Can be used with any door and frame material.
- Security moldings.
- 1/32" (1 mm) inset.
Clearance:
- 1/32" (1 mm) minimum recommended for hinge side.
- Plus standard lockside clearance.
- 1-5/8" (41 mm) minimum frame face required plus 3/16" (5 mm) rotational clearance
Door Reinforcement: None required.
Fasteners:
- Standard: 1/4-20 x 1-1/4" Sexbolt (fastener + Post);
- Standard: Dril-Kwik® – #12-24 X 11/16" Pan Head Screws;
- Additional Options Available upon request.
Features:
- Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors;
- Can be used with any door and frame material;
- Security moldings.
- 1/32” (1 mm) inset.
Finishes: CLR, DBA
Fire Rating: Up to 3-hour metal and 90 minute wood composite (with studs);
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.
Length: 79", 83", 95"
Material: Aluminum 6063-T6
Notes:
Replacement door leaf molding for:
780-210
780-210HD
780-211
780-211HD
780-213HD
780-045HD
780-046HD
Product Description:
- Full Surface.
- Frame Face Dimension
- Limitations
HAGER CONTINUOUS GEARED HINGES
Hager hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge applicatios.
- ANSI/BHMA A156.26 C
- Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Category:
- Door Hinges and Pivots
- Subcategory:
- Continuous Geared Hinges
- Substrate:
- Aluminum
- Warranty:
- All Roton products have a lifetime. When ordering electric Roton, the electric portion of the hinge has a one Year.
- Fire Rated:
- Yes
- Product Group:
- Door Hinges and Pivots
- Product Subgroup:
- Continuous Hinges
- Product Type:
- Full Mortise Hinges
- Commercial/Residential:
- Commercial
- Product Model:
- 780-210M
