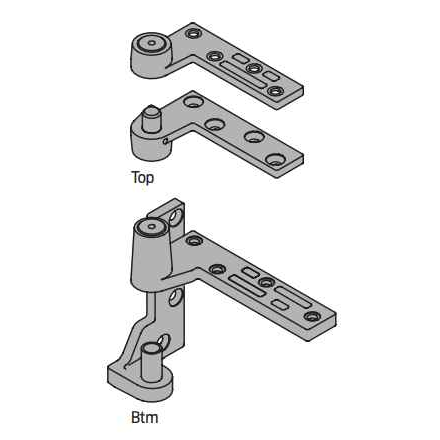

Ives 7215F Stainless Steel 3/4" Offset Pivot Set with Top Header Mount - 500lb Fire Rated

Ives 7215F Stainless Steel 3/4" Offset Pivot Set with Top Header Mount - 500lb Fire Rated

Heavy-Duty Fire-Rated Pivot Solution for Commercial Applications

The Ives 7215F stainless steel offset pivot set delivers professional-grade performance for heavy commercial doors up to 500 pounds. This fire-rated pivot system features 3/4" offset design with top header mount configuration, recommended for doors with 1-3/4" minimum thickness and 1/8" bevel in 2". Certified to ANSI/BHMA A156.4 C07031 standards with UL 10C 3-hour fire rating, this stainless steel construction provides superior corrosion resistance for demanding commercial environments.

Professional Features & Benefits

• Heavy-Duty Load Capacity: Maximum door load of 500 pounds with positive locking vertical adjustment mechanism for precise installation and load balancing.
• Fire-Rated Performance: UL 10C tested and approved for 3-hour fire rating, meeting stringent commercial fire safety requirements.
• Precision Adjustment: 3/16" vertical adjustment range with positive locking mechanism allows precise door positioning and load distribution.
• Superior Construction: Stainless steel forgings with precision bearings provide smooth operation and maximum corrosion resistance for long-term durability.
• Structural Load Distribution: Offset pivot design reduces stress on door frame by distributing weight throughout floor and building structure.
• Professional Installation: Recommended for 1-3/4" minimum door thickness with 1/8" bevel in 2" for optimal performance.
• Handed Configuration: Available for both left-hand (LH) and right-hand (RH) door applications with header mount top pivot and jamb mount bottom pivot.
• Weather Protection Option: Optional WP resistant bottom pivot available with modified design for improved corrosion resistance in challenging environments.

Technical Specifications

• ANSI/BHMA: ANSI/BHMA A156.4 C07031
• Application: Heavy-Duty, Fire-Rated
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Handed
• Door Weight: Up to 500 lbs
• Duty Level: Heavy Duty
• Electronic: No
• Fire Rated Time: 3 hours
• Fire Rating: Yes
• Hang Type: Offset Hung
• Mounting Method: Offset
• Pivot Type: Top & Bottom
• Product Attribute: Pivots
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Model: 7215F
• Product Subgroup: Pivots and Pivot Sets
• Product Substrate: Stainless Steel
• Product Type: Pivots - Offset
• Subcategory: Hinges and Pivots

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including 1-3/4" minimum door thickness, structural support for 500-pound load capacity, and proper header mounting provisions.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door, frame, and header surfaces for both top and bottom pivot components.
3. Prepare door, frame, and header by drilling required holes and routing as specified in manufacturer instructions for offset pivot installation.
4. Install top pivot with header mount configuration and bottom pivot with jamb mount per manufacturer specifications, ensuring proper alignment between components.
5. Adjust vertical positioning using the 3/16" adjustment range and positive locking mechanism to achieve proper door alignment and balanced load distribution.
6. Test pivot operation throughout full door swing range to verify smooth operation, proper load distribution, and fire-rated performance integrity. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings with Heavy Entry Doors
• Educational Facilities Requiring Fire-Rated Hardware
• Healthcare Institutions with High-Traffic Entrances
• Retail Establishments with Heavy Glass Doors
• Industrial and Warehouse Facility Access Points
• Government and Municipal Buildings
• Multi-Tenant Residential Properties with Commercial-Grade Requirements

Why Choose Ives Quality?

Ives 7215F pivot sets deliver professional-grade reliability with stainless steel forgings and precision bearings rated for heavy-duty commercial applications up to 500 pounds. Certified to ANSI/BHMA A156.4 standards with UL 10C 3-hour fire rating, this pivot system provides the structural load distribution and corrosion resistance essential for demanding commercial environments. Engineered with positive locking vertical adjustment and superior materials for long-term dependable performance.
