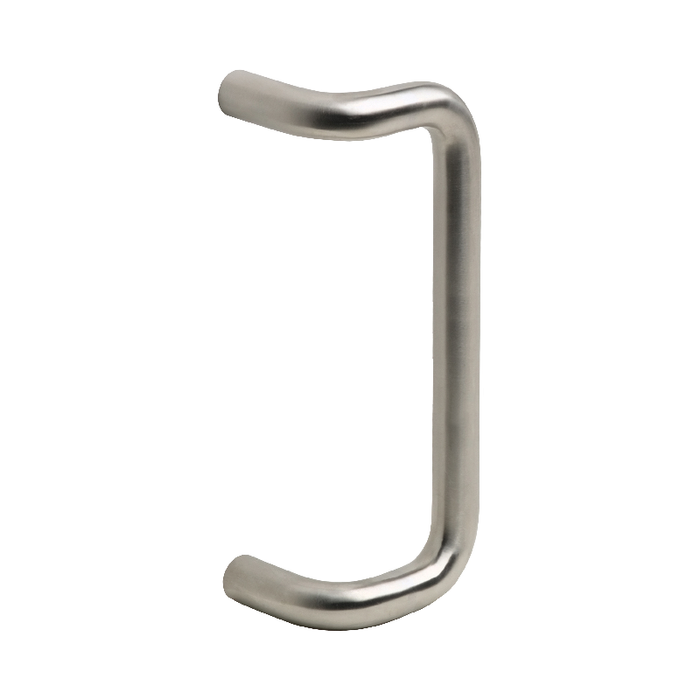

Ives 8190HD Heavy-Duty 90 Degree Offset Door Pull with 3/8-16 Mounting Hardware

Ives 8190HD Heavy-Duty 90 Degree Offset Door Pull with 3/8-16 Mounting Hardware

Professional Offset Door Pull Solution

The Ives 8190HD 90 degree offset solid door pull delivers heavy-duty performance with mounting hardware that exceeds industry standards. Available in sizes 8", 10", 12", and 18" with 3/8-16 mounting hardware, this pull accommodates door thickness from 1-1/2" to 1-3/4" standard, with optional packages for 2" and 2-1/4" thick doors. Constructed from solid bar stock or castings in brass or stainless steel substrates for demanding commercial applications.

Professional Features & Benefits

• Multiple Size Options: Available in 8", 10", 12", and 18" sizes to accommodate various door applications and design requirements.
• Heavy-Duty Construction: Made from solid bar stock or castings in brass and stainless steel substrates for exceptional durability in high-traffic environments.
• Industry-Exceeding Hardware: 3/8-16 mounting hardware exceeds industry and ANSI 156.06 standards for reliable long-term performance.
• Flexible Door Compatibility: Standard mounting for 1-1/2" to 1-3/4" door thickness with optional packages available for 2" and 2-1/4" thick doors.
• Complete Hardware Package: Comes standard with through bolt screws and decorative washers for professional installation.
• Multiple Mounting Options: Optional mounting hardware available including concealed mounts, back-to-back configurations, and security through-bolt options.
• ANSI Compliance: Meets ANSI A156.06 standards ensuring code compliance for commercial applications.
• Anti-Microbial Finish Options: Various BHMA standard finishes available including antimicrobial treatments for enhanced hygiene applications.

Technical Specifications

• ANSI/BHMA: ANSI A156.06
• Commercial/Residential: Commercial
• Department: Door Hardware
• Hang Type: Offset Hung
• Product Category: Door Trim and Accessories
• Product Dimension: 3-1/4" x 2-1/4 x 8" -12"
• Product Group: Door Trim and Accessories
• Product Model: 8190HD
• Product Subgroup: Door Pulls, Push and Pull Plates
• Product Substrate: Brass or Stainless Steel
• Product Type: Door Pulls
• Subcategory: Pulls and Push Plates

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Ives Quality?

Ives door pulls are engineered from heavy-duty solid bar stock and castings with mounting hardware that exceeds industry and ANSI 156.06 standards. The 8190HD model features robust 3/8-16 mounting hardware and comes standard with heavy-duty machining for reliable performance in high-traffic commercial applications where dependable operation is essential.
