Ives 9264 Offset Long Door Pull

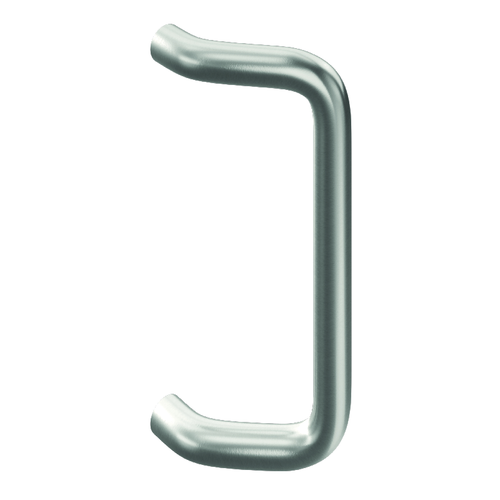

9264 OFFSET LONG DOOR PULL, ROUNDED TIP

• 1-1/4" Diameter tubular bar

• Round tip is standard

• Optional Flat Tip (F) is available. Specify F after model number when ordering.

• Available in whole 1" increments from 12" to 96"

• Other lengths available as engineering special, consult customer service

Substrate Selections

• Finish 605,606 and 613 are for an Brass substrate
• All other finishes are for a Stainless Steel substrate

IVES LONG DOOR PULLS OVERVIEW
Ives long door pulls are offered in offset and straight models, a variety of lengths and center-to-center mounting spacing. In addition, Ives offers a wide selection of finishes, round and flat tip options and mounting hardware to meet any application needs. Offered in 316 stainless steel, the long pulls exceed industry standards for corrosion resistance in exterior applications. Ives long pulls coordinate seamlessly with other contemporary styles and finishes of door hardware for a complete, secure and attractive door solution.

FEATURES & BENEFITS
Aesthetics

• Door pulls offered in straight (9266) and offset (9264) models
• 1-1/4" diameter tubular bar offered in multiple overall lengths and center-to-center mounting
• Standard length available between 12”-96”
• Round tip is standard with optional Flat tip (F) available

Reliability

• Heavy-duty (3/8-16) mounting hardware exceeds industry standards
• Stainless steel (316) finish available for optimal corrosion resistance
• Meets ANSI A156.06, Grade 1 certified

DESIGNS & FINISHES
Designs

• Choose from offset (9264) and straight (9266) pull designs
• Round tip comes standard with optional flat tip available
• To view standard lengths, refer to the long door pulls section in the Ives full line catalog

Finishes

• Available in brass and stainless steel substrates
• See individual models in the catalog for specific finishes
• Custom finishes are available as engineering special; consult Customer Service for orders
• Stainless substrate (316) allows for maximum corrosion resistance for exterior applications
• Note: Max length for 643e/716 is 36"

AVAILABLE OPTIONS
With each long pull, a variety of heavy-duty mounting applications are available that exceed industry standards. To view all mounting hardware options available, refer to page 43 in the Ives full line catalog.

• Comes standard with 3/8-16 mounting hardware, thru-bolt screws and decorative washers
• Options include:
  • Thru-bolt options:
    • Standard screw with decorative washer
    • Security screw and decorative washer
    • Decorative thru-bolt
    • Decorative thru-bolt for glass doors
  • Concealed mount options:
    • Aluminum doors
    • Wood doors
    • Hollow metal doors
  • Back-to-back mount options:
    • Hollow metal/wood doors
    • Glass doors
