Professional Vandal-Resistant Door Security Solution

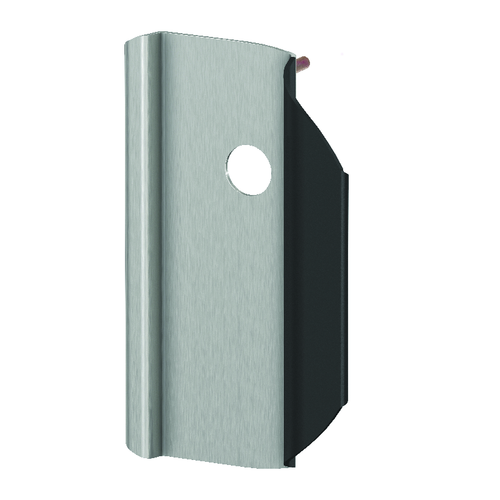

The Ives Vandal Resistant Mortise Trim delivers superior security protection with its closed pull design that eliminates hooking points for forced entry attempts. Constructed from heavy-duty 11-gauge (0.120" thick) 304 series stainless steel, this ligature-resistant trim is designed for use with most mortise locks on inswinging doors including Schlage L9000 Series. The handed design allows precise positioning to coordinate with interior hardware centerlines, featuring a 1-1/2" cylinder hole cut-out located 2-7/32" above horizontal center line for 1-1/4" cylinders.

Professional Features & Benefits

• Heavy-Duty Construction: 11-gauge (0.120" thick) 304 series stainless steel provides exceptional durability and vandal resistance for high-security applications.
• Closed Pull Design: Eliminates hooking points that could be used to forcibly pull secured doors open, enhancing security against break-in attempts.
• Ligature Resistant Design: Engineered to prevent ligature attachment points for enhanced safety in sensitive environments.
• Universal Compatibility: Works with most mortise locks on inswinging doors including Schlage L9000 Series with interior L or N escutcheon and rose trim.
• Protective Cylinder Collar: Supplied spinning collar reduces damage from pipe wrenches and other tools, protecting the cylinder from tampering.
• Built-in Lock Protector: Integrated design prevents tampering with latchbolt mechanisms for enhanced security.
• Handed Design: Allows trim positioning to coordinate with centerline of inside hardware for proper alignment and function.
• Precision Cylinder Accommodation: 1-1/2" cylinder hole cut-out positioned 2-7/32" above horizontal center line, designed for 1-1/4" cylinders.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Yes
• Product Category: Door Trim and Accessories
• Product Dimension: W: 5-1/4", H: 11"
• Product Group: Door Trim and Accessories
• Product Model: VR900-LLP/VR904-LLP
• Product Subgroup: Door Trim and Latch Protection
• Product Substrate: Stainless Steel
• Product Type: Vandal Resistant Trim
• Subcategory: Pulls and Push Plates

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Healthcare Institutions and Mental Health Facilities
• Correctional and Detention Centers
• Educational Facilities and Schools
• Government and Municipal Buildings
• High-Security Commercial Buildings
• Retail Establishments in High-Risk Areas
• Multi-Tenant Residential Properties

Why Choose Ives Quality?

Ives Vandal Resistant Trim products deliver professional-grade security with 11-gauge stainless steel construction and integrated lock protection features. The 304 series stainless steel material with standard stainless steel fasteners ensures long-term durability in demanding commercial applications. Engineered for high-security environments where vandal resistance and ligature prevention are essential safety requirements.
