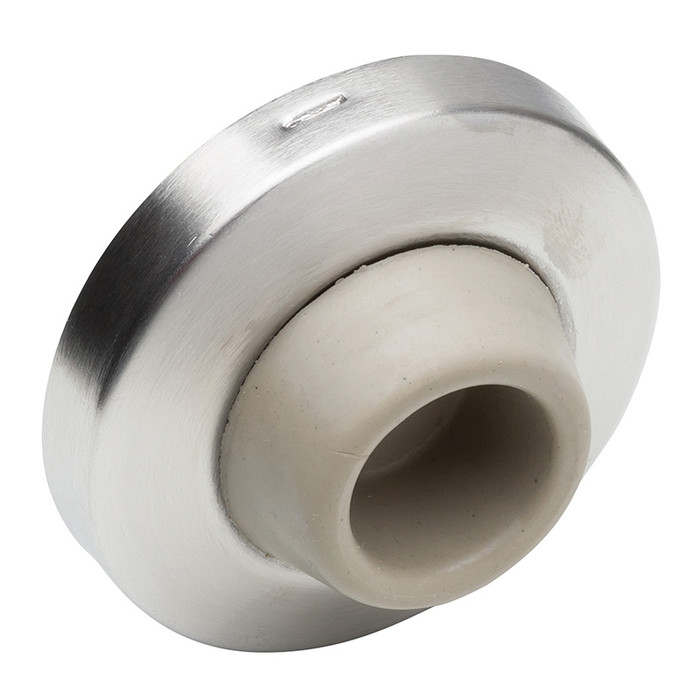

Ives WS406/407CCV concave wall bumper, 630 Satin Stainless Steel finish, tamper-proof mounting, gray rubber bumper, 2-1/2 in. base diameter

Ives WS406/407CCV Concave Wall Bumper with Tamper-Proof Mounting

(4 reviews) Write a Review

Model: WS406/407CCV US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.20
$3.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ives WS406/407CCV Concave Wall Bumper with Tamper-Proof Mounting

The Ives WS406/407CCV is a heavy-duty wall-mounted door bumper engineered for commercial environments where standard bumpers would damage locks with projecting buttons. Its concave rubber face cradles the door edge rather than pressing flat against it, protecting both the wall surface and any protruding lock hardware. The wrought brass or stainless steel base ships with the backplate pre-assembled and includes fasteners for drywall and wood substrates — ready to install out of the box.

Key Features

  • Concave Rubber Face: Shaped to clear projecting lock buttons and other door hardware — prevents the marring that flat bumpers cause.
  • Tamper-Proof Concealed Mounting: Fastener is accessed through a small hole in the rubber bumper using a standard screwdriver; no exposed hardware, no unauthorized removal.
  • Heavy-Duty Substrate: Wrought brass (brass finishes) or stainless steel (stainless finish) base — not zinc or pot metal.
  • Factory Pre-Assembled: Backplate arrives attached; reduces on-site labor.
  • Complete Fastener Kit: Includes hardware for drywall and wood applications.
  • ANSI/BHMA Certified: Meets ANSI/BHMA 156.16 — L22251 (brass) and L52251 (stainless steel).
  • Available in 11 Finishes: Bright Brass, Satin Brass, Blackened Brass, Satin Bronze, Satin Bronze Oil-Rubbed, Satin Nickel, Bright Chrome, Satin Chrome, Matte Black, Aged Bronze, and Satin Stainless Steel.

Technical Specifications

  • Model: WS406/407CCV
  • Dimensions: 2-1/2" x 3/8" x 1"
  • Duty Level: Heavy Duty
  • Substrate: Wrought Brass or Stainless Steel
  • Bumper Material: Concave rubber
  • Mounting: Concealed tamper-proof (screwdriver access through bumper face)
  • Package Includes: Fasteners for drywall and wood applications
  • ANSI/BHMA: 156.16 — L22251 (Brass), L52251 (Stainless Steel)
  • Use: Commercial

Installation

  1. Hold the bumper against the wall at the desired contact point — typically centered on the door edge or lock rail.
  2. Mark the mounting hole location through the bumper base.
  3. Drill the appropriate pilot hole for your substrate (drywall anchor or wood screw, both included).
  4. Insert the provided fastener through the base and tighten using a screwdriver inserted through the small access hole in the rubber bumper face.
  5. Verify the bumper contacts the door squarely and the rubber face clears any projecting lock hardware.

Typical Applications

  • Commercial office corridors and conference rooms
  • Healthcare and institutional facilities with privacy or passage locks
  • Multi-family and hospitality properties
  • Educational facilities
  • Government and municipal buildings
  • Any application where a projecting lock button rules out a standard flat bumper

Manufacturer Resources

Ives Full Line Catalog

Product Specs

Subcategory:
Stops
Product Group:
Door Trim and Accessories
Duty Level:
Heavy Duty
Package Includes:
Fasteners for drywall/wood applications
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Door Stops - Wall
ANSI/BHMA:
ANSI/BHMA 156.16, L22251 for Brass and L52251 for stainless steel
Commercial/Residential:
Commercial
Tags:
ives 406, ives ws407, ives ws407ccv, ives ws406ccv, ives ws406 407 ccv, ws406ccv
Product Model:
WS406/407CCV
Product Dimension:
2-1/2" x 3/8" x 1"
Product Category:
Door Trim and Accessories
Product Substrate:
Brass or Stainless Steel
Department:
Door Hardware

Ives WS406/407CCV US26D – Frequently Asked Questions

1) Will a wall bumper clear a privacy push button or a projecting lock button on the door?
That is exactly what the concave face on the Ives WS406/407CCV is for. The rubber is dished rather than flat, so a projecting push button or lock button drops into the cup instead of being driven straight into the bumper face. A flat wall bumper contacts the highest point on the door first, which on a privacy or push-button lock is the button itself, and that is what mars the trim and eventually breaks the button. If the doors have plain levers with nothing standing proud of the rose, a flat bumper is fine. Where the lock has a projecting button, the concave face is the reason to buy this one.
2) Can a tenant or a student pull an Ives WS406/407CCV wall bumper off the wall?
Not by hand. The mounting is concealed and tamper-proof: the fastener is reached through a small access hole in the rubber face with a standard screwdriver, so there is no exposed screw head at the perimeter to pry at or back out with a coin. That is the difference that matters in student housing, correctional and behavioral health corridors, and multi-family common areas, where an exposed-screw bumper walks off the wall within a season. Anyone servicing it still only needs a screwdriver, so removal for painting or wall repair is not a problem.
3) My door swings open and the lever does not reach the wall. Is a wall bumper still the right stop?
No. A wall bumper only works when the door or its lock actually lands on the wall at full swing. If the door stops short, or the wall behind it is furred out, glass, or a corridor opening, you need a stop that spans that gap or one that mounts somewhere else. ABH RM Series and RMS Series wall door stops are made in multiple lengths for exactly that reach problem. Where there is no usable wall at all, the answer is a floor stop or a base-mounted stop instead: the Delaney 3 inch HD rigid door stop and the Delaney 3 inch spring door stop both cover that case. Measure from the wall face to the point on the door that would strike it before ordering.
4) What other concave wall bumper clears a projecting lock button the way the Ives WS406/407CCV does?
The Delaney 2-1/4 inch Concave Wall Bumper is the other concave-face wall bumper in that role - a dished rubber face cradles the door edge instead of meeting it flat, which is what gives a protruding lock button somewhere to sit. The Ives WS406/407CCV measures 2-1/2 inch x 3/8 inch x 1 inch, sits on a wrought brass or stainless steel base, and certifies to ANSI/BHMA 156.16 as L22251 in brass and L52251 in stainless. If the opening is being submitted against a 156.16 spec, the Ives is the one carrying that certification; if the concave shape is all the job needs, the Delaney is a 2-1/4 inch concave bumper.
5) The door edge does not reach the wall far enough for a low-projection bumper - what wall stop should I use instead?
When baseboard, chair rail, or a deep casing keeps the door from landing on a shallow wall bumper, go to a wall stop offered in a range of lengths: the ABH RM Series and the ABH RMS Series are both wall door stops with multiple length options, so the projection can be picked to match how far the door actually travels. The Ives WS406/407CCV is a 2-1/2 inch x 3/8 inch x 1 inch bumper and suits an opening where the door face arrives at the wall on its own. Measure from the finished wall to the door at full swing before choosing between them.
6) What fasteners come with the Ives WS406/407CCV, and will they work in drywall?
Fasteners for drywall and wood applications ship in the box, so hitting a stud or landing in hollow drywall are both covered without a second trip to the counter. The backplate arrives pre-assembled to the base as well, so the install is mark the hole, drill the pilot for whichever substrate you are in, drive the fastener through the base, and snug it with a screwdriver through the rubber face. Concrete, CMU, or tile over block is the one case to plan for: those want a masonry anchor sized to your wall, which you supply.
7) Should I get the brass or the stainless steel Ives concave wall bumper?
It follows the finish. The brass finishes are built on a wrought brass base and certified ANSI/BHMA 156.16 L22251; the 630 satin stainless steel version is built on a stainless base and certified L52251. Neither is zinc or pot metal. Pick the 630 stainless for pool rooms, kitchens, wash-down areas, coastal exteriors, and anywhere a spec calls for stainless throughout; pick a brass-based finish anywhere you are matching brass, bronze, chrome, or black trim on the rest of the opening. Note that 605, 606, and 609 are brass finishes over the brass substrate, and chrome and nickel finishes are plated over that same brass base.
8) What finishes does the Ives WS406/407CCV concave wall bumper come in, and how do I match the rest of my door hardware?
Eleven, and they are ordered by BHMA finish code so they line up with the levers and hinges already on the opening: 605 bright brass, 606 satin brass, 609 blackened brass, 612 satin bronze, 613 satin bronze oil-rubbed, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 630 satin stainless steel, and 643E aged bronze. If you are standardizing a building, match the code rather than the name: 626 satin chrome is the usual commercial default alongside 626 levers and closers, 630 goes with stainless trim, and 622 matte black matches current black hardware packages.
9) What else could I buy instead of the Ives WS406/407CCV concave wall bumper?
For the same concave wall-mounted job, the Delaney 2-1/4 inch concave wall bumper is the closest straight alternative, and the Emtek 2255 brass wall bumper with regular rosette is the option when the look matters more than an institutional spec, since it comes with a finished rosette. The reasons to stay with the Ives are the concealed tamper-proof fastener and the ANSI/BHMA 156.16 certification, L22251 for brass and L52251 for stainless, which is what an institutional or government submittal usually asks for. If you are simply keeping a residential or light commercial door off the drywall and nobody is going to pick at the screw, the simpler bumpers do the job.
10) What do I put on the submittal for an Ives concave wall bumper?
Model WS406/407CCV, ANSI/BHMA A156.16, L22251 for the brass-based finishes or L52251 for 630 satin stainless steel, heavy duty, commercial use, wrought brass or stainless steel substrate with a concave rubber face and concealed tamper-proof mounting. Add the BHMA finish code for the opening, for example WS406/407CCV 626 for satin chrome. That gives the reviewer the certification number, the duty level, and the finish, which is normally the whole line item for a wall stop.
11) Is this bumper heavy duty enough for a high traffic commercial corridor?
It is rated heavy duty for commercial use, and the base is wrought brass or stainless steel rather than the zinc or pot metal used on residential bumpers, which is what fails first when a door is thrown open a few hundred times a day. It also carries ANSI/BHMA 156.16 certification, L22251 on brass and L52251 on stainless. Office corridors, conference and classroom doors, patient rooms, and hotel corridors are the intended use. Where the door is closer-controlled and slams hard, back it up with a properly adjusted closer, since no wall bumper is a substitute for closer backcheck.
12) I am replacing an old wall bumper. Will the Ives WS406/407CCV cover the existing hole?
It depends what came off the wall. The Ives measures 2-1/2 x 3/8 x 1 inches overall and mounts on a single concealed fastener, so it covers one hole cleanly if you can reuse the original anchor point. Swapping from a multi-screw plate or from a stop with a larger rosette can leave holes outside the base, and the fix there is patch and paint, or a Delaney 2-1/8 inch hole plate metal cover over the old opening. Simplest route: hold the bumper up at the contact point first and mark, rather than assuming the old hole is in the right place.
13) The doors have plain levers with no projecting button - is there a simpler wall bumper than the Ives WS406/407CCV?
The concave face is the whole reason to buy the Ives WS406/407CCV; it is shaped to clear projecting lock buttons and other door hardware, and on a door with nothing protruding from the lock face that shape is not doing any work. The Emtek 2255 is a brass wall bumper with a regular rosette and covers the plain stop-the-door-at-the-wall job. Keep the Ives WS406/407CCV where privacy or passage locks push a button out past the escutcheon, and where the ANSI/BHMA 156.16 heavy duty rating is being called for.
14) The wall behind the door is glass or an unsupported partition - what stop can I use instead of a wall bumper?
Move the stop off the wall entirely and take the door at its face: the Delaney 3 inch HD Rigid Door Stop is a rigid stop, and the Delaney 3 inch Spring Door Stop is the sprung version of the same 3 inch size, which flexes as the door meets it. Both are chosen when there is no sound backing for a wall-mounted bumper. The Ives WS406/407CCV is wall-mounted and ships with fasteners for drywall and wood applications, so it wants a substrate that can hold an anchor.
15) Is a hole plate cover the same thing as a wall bumper?
No. The Delaney 2-1/8 inch Hole Plate Metal Cover is a plate that caps an opening left in a wall or door, with no rubber face to take an impact. The Ives WS406/407CCV is a heavy duty wall door stop with a concave rubber bumper on a wrought brass or stainless steel base, mounted to absorb the door. If a previous stop was removed and left a hole beside the new location, the two get ordered together rather than one in place of the other.
16) I need one wall bumper model that works in both brass finish areas and stainless areas of the same building - which one?
The Ives WS406/407CCV carries a single model number across both substrates: wrought brass for the brass finishes and stainless steel for the stainless, in 11 finishes from bright brass through matte black and satin stainless, with ANSI/BHMA 156.16 held as L22251 for brass and L52251 for stainless. That lets a facility standardize on one part number and vary only the finish suffix. The Emtek 2255 is a brass wall bumper with a regular rosette, which fits a brass-finish scheme rather than a mixed-substrate standard.
17) Does the Ives concave wall bumper need any assembly, and what tools does the installer need?
No assembly. The backplate arrives attached to the base, and the only tool needed is a screwdriver plus a drill for the pilot hole. The screwdriver goes through the access hole in the rubber face to reach the fastener, which is also how it comes back off later. For a maintenance tech doing a run of doors, that is one bumper per opening with no loose parts to lose off a ladder, and the drywall and wood fasteners are already in the box.
18) Where on the wall should a concave wall bumper be mounted so it actually protects the lock?
Line it up with the point on the door that reaches the wall first, which on a door with a projecting lock button is the button itself, not the door face. Swing the door open, mark where the lock hardware lands, and set the bumper so the button sits inside the concave dish. Mount it too low or too high and the door edge hits the rim of the cup instead of seating in it, which defeats the whole reason for the concave face. Check the door contacts squarely once it is fastened, before you move to the next opening.
19) Which wall bumper holds up in a school or dorm corridor where hardware gets picked at?
The Ives WS406/407CCV mounts with a concealed tamper-proof fastener reached through a small hole in the rubber face with a standard screwdriver, so there is no exposed screw head to work at, and it is rated heavy duty for commercial use with a wrought brass or stainless steel base. Among the other wall bumpers, the Delaney 2-1/4 inch Concave Wall Bumper is the comparable concave-face option and the Emtek 2255 is a brass wall bumper with a regular rosette. For corridors where the stop is within reach of the traffic, the concealed fastener on the Ives is the point of difference to weigh.
