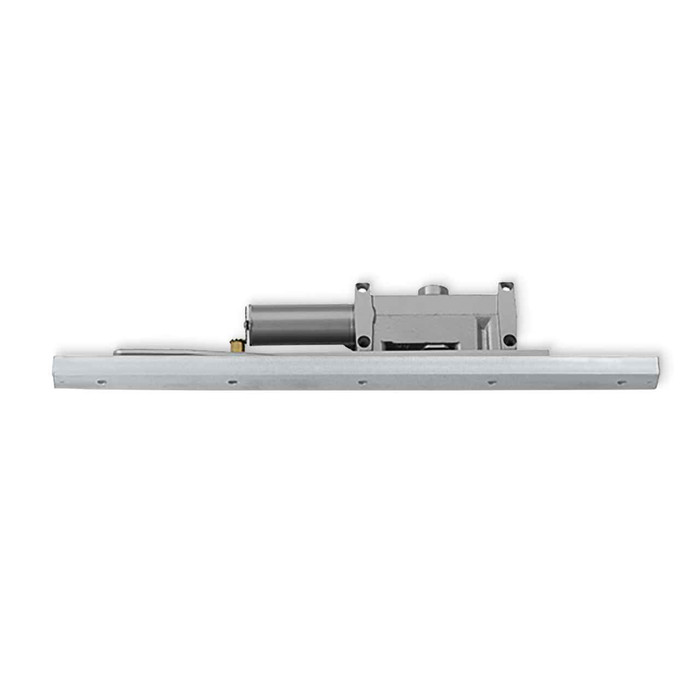

2213 Concealed, High Security, Heavy Duty Closer
The Concealed 2210 Series, Heavy Duty, High Security High Security features complete concealment with special components to minimize tampering and vandalism. Forged steel, Single Lever Arm and heavy steel mounting plate are designed for correctional, vandal prone, institutional, and other high traffic applications. A choice of finishes and cylinder functions meet correctional and vandal resistant requirements.
The heavy-duty 2210 Series is a high-security High Security that features complete concealment and special components to resist tampering and vandalism. The 2210 Series meets ANSI/BHMA A156.4 Grade 1, meets the American Disabilities Act (ADA) reduced opening force requirements and is UL and cUL listed for self-closing doors, Grade 1. It is backed by a 15-year limited warranty.
Forged steel, a single-lever Arm and a heavy steel mounting plate are designed for correctional, institutional and other high-traffic locations. The high-strength cast iron cylinder mounts in the head frame. Materials include a one-piece forged steel piston; Double-heat-treated pinion; high-efficiency, full-complement low-friction bearings; tamper-resistant regulating screws; and all-weather fluid.
Body construction
- Cast iron design
- Forged steel Arm
- Double heat-treated steel pinion
Quality and durability
- All-weather fluid
- Vandal resistant
- 15-year warranty
Installation
- Security cover
- Torx machine screw pack
- Adjustable Spring Power sizes 3-5
Specifications
- Sized cylinders are adjustable for Interior doors to 4’6” and exterior doors to 3’6”
- Closer meets ADA requirements
- UL listed for self-closing doors
- Tested and certified under ANSI/BHMA A156.4 Grade 1
Designs and Finishes
- Powder coat finish offered in standard colors and a large selection of optional custom colors
- Optional plated finish on the Metal Cover, Arm and fasteners
- Optional SRI primer for installations in corrosive conditions available with powder coat only
Mounting/Arm Options
The 2210 Series mounts Concealed. A single-acting cylinder mounts in the head frame and the Arm and track mount in the top rail of the door. Visit the 2210 Series catalog pages for mounting details, Arm options and accessories.
Downloads and Resources
- Brand:
- LCN
- Category:
- Door Controls
- Series:
- 2210 Series
- ADA Compliant:
- No
- BAA Qualified:
- Yes
- Warranty:
- 15 Year
- Mounting:
- Concealed
- Closer Size:
- 3
- Default Arm/Track:
- Standard Security Arm (STDTRKSECARM)
- Duty Level:
- Heavy Duty
- Subcategory:
- High Security Closers
- Mounting Location:
- In Frame
- Mounting Detail:
- Concealed - In Frame
- Product Group:
- Door Controls
- Product Subgroup:
- Door Closers - Overhead Concealed
- Product Type:
- Overhead Concealed Closers
- Door Type:
- Interior/Exterior Door
- Finish Type:
- Powder Coat
- Fluid Type:
- All-Weather
- Door Opening:
- 180 Degrees
- Delayed Action:
- No
- Fasteners:
- Wood and Machine Screws
- Substrate:
- Iron
- Commercial/Residential:
- Commercial
- Model:
- 2213
