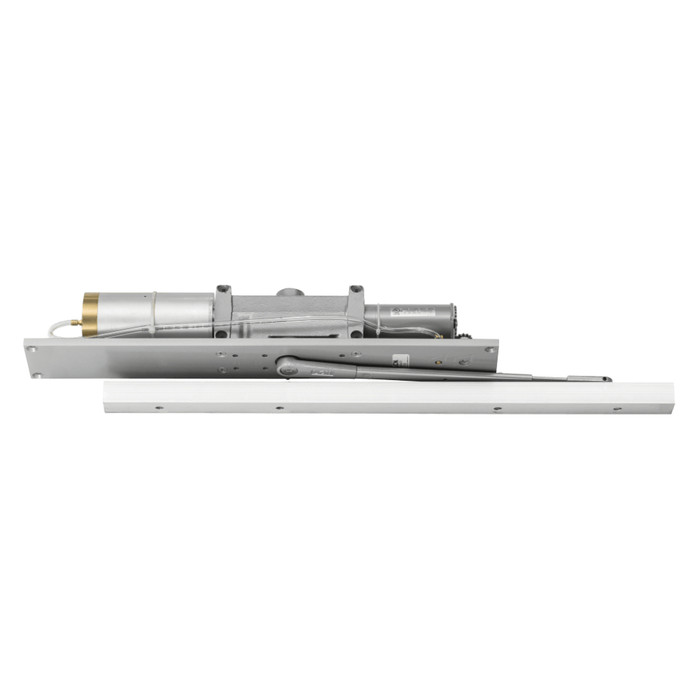

LCN 2614 Concealed Pneumatic Auto Equalizer Power Operator with Plated Finish

LCN 2614 Concealed Pneumatic Auto Equalizer Power Operator with Plated Finish

ADA-Compliant Automatic Door Operator for Multi-Door Applications

The LCN 2614 Concealed Pneumatic Auto Equalizer Power Operator delivers low-energy automatic door operation for accessibility compliance and convenience. This pneumatically powered multi-door solution mounts concealed in frame with single lever track arm, accommodating interior doors to 4'6" and exterior doors to 3'6". ANSI/BHMA A156.4 Grade 1 certified with ADA compliance in power mode, featuring non-handed design and all-weather fluid for reliable performance.

Professional Features & Benefits

• Door Compatibility: Non-sized cylinders accommodate interior doors to 4'6" and exterior doors to 3'6" with versatile installation options.
• ADA Compliance: Meets American Disabilities Act requirements for accessibility, providing easy access for elderly users and people with disabilities.
• Grade 1 Certification: Tested and certified under ANSI/BHMA A156.4 Grade 1 standards for commercial-grade reliability and performance.
• Pneumatic Power System: Utilizes heavy duty door closer with pneumatic power for quiet, low-energy automatic operation ideal for multi-door applications.
• Concealed Installation: Mounts concealed in frame with single lever track arm in door for clean aesthetic appearance without visible hardware.
• Multi-Door Efficiency: Cost per door leaf decreases significantly as the number of door leaves increases, making it ideal for large installations.
• All-Weather Performance: Features all-weather fluid and non-handed design for reliable operation in various environmental conditions.
• Manufacturer Warranty: Backed by 2-year limited warranty for added confidence and protection.

Technical Specifications

• Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

1. Verify door construction and frame preparation requirements for concealed mounting. Confirm door thickness and frame dimensions are suitable for in-frame installation.
2. Install control box with integral compressor or connect to auxiliary air supply system per manufacturer specifications.
3. Mount the operator concealed in frame using provided wood and machine screws, ensuring proper alignment with door movement.
4. Install single lever track arm in door and connect pneumatic lines according to manufacturer wiring and connection diagrams.
5. Configure operational settings for automatic and manual modes, adjusting timing and force settings per application requirements.
6. Test all functions including automatic opening, manual operation, and ADA compliance features throughout full range of door movement.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete installation details and system integration requirements.

Professional Applications

• Healthcare Facilities and Hospitals
• Educational Institutions
• Commercial Office Buildings
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Retail and Shopping Centers
• Industrial and Warehouse Facilities

Why Choose LCN Quality?

LCN pneumatic auto equalizer operators deliver professional-grade reliability with heavy duty door closer construction and Grade 1 certification for demanding commercial applications. Backed by a 2-year limited warranty and ADA compliance certification, this quiet, low-energy system provides dependable automatic door operation where accessibility and convenience are essential.

Product Documentation & Resources

• [Catalog] LCN Full Line Catalog
• [Catalog] LCN Automatic Operators Catalog
• [Installation Guide] 4630/4640 Series Electric Auto-Equalizer Install
• [Installation Guide] 4630CS/4640CS Electric Auto-Equalizer Install
• [Installation Guide] 4630CS/4640CS Retrofit Install
• [Installation Guide] 4630/4640 Series Remote Key Switch Install
• [Parts Manual] LCN Closers & Auto Operators Parts Manual
