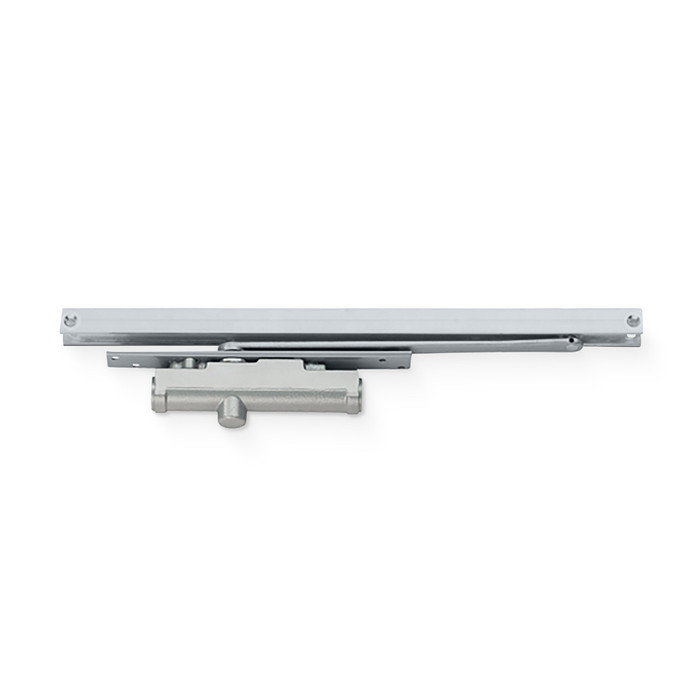

3131 Concealed in Interior Door, Single Lever Arm High Security
The Concealed 3130 Series is designed to mount in a 1 3⁄4" Interior door. The Single Lever Arm and roller assembly provides complete concealment and the choice of finishes and track functions meet virtually all architectural requirements.
The 3030/3130 Series Closers are designed for concealment within 1-3/4” Interior doors in medium- to high-traffic areas. Both Closer Series meet ANSI/BHMA A156.4 Grade 1 and the American Disabilities Act (ADA) reduced opening force requirements. A Concealed forged steel single-lever Arm and a low-friction track and roller assembly for the 3130 Series and an exposed forged steel Double-lever Arm for the 3030 Series create optimal Door control, with separate regulation of the general closing speed and latching speed. Joints in the 3030 Series Arm and shoe adapt to uneven trim.
Both the 3030 and 3130 Series are UL and cUL listed for self-closing doors without hold-open and carry a 15-year limited warranty. Materials for the Closers include a cast iron cylinder; one-piece forged steel piston; high-efficiency, full-complement, low-friction bearing; tamper-resistant regulating screws; and all-weather fluid.
Body construction
- Cast iron design
- 1-1/8” diameter forged steel piston
- Full-complement bearing
Quality and durability
- All-weather fluid
- Forged steel Arm
- 15-year warranty
Installation
- Handed design
- Wood and torx security screws
- For the 3030 Series, Spring sizes 1-4; for the 3130 Series, Spring sizes 1-3
Specifications
- Tested and certified under ANSI/BHMA A156.4 Grade 1
- UL and cUL listed with Regular Arm for self-closing doors
- Meets ADA requirements
- Sized cylinders for Interior doors to 4’0”
- Optional plated finish on Arm and fasteners
- Handed for right- and left-swinging doors
Designs and Finishes
- Standard or optional custom powder coat finish
- Optional plated finish
- Optional SRI primer for installations in corrosive conditions available with powder coat only
Mounting/Arm Options
The 3030 Series mounts in the Door with an exposed Arm. The 3130 Series mounts in the Door with a Concealed Arm. Visit the 3030/3130 Series catalog pages for mounting details, Arm options and accessories.
Downloads and Resources
Manufacturer Resources
Product Specs
- Category:
- Door Controls
- Series:
- 3130 Series
- ADA Compliant:
- Yes
- BAA Qualified:
- Yes
- Warranty:
- 15 Year
- Mounting:
- Concealed
- Closer Size:
- 1
- Default Arm/Track:
- Standard Arm (STDTRKARM)
- Duty Level:
- Medium Duty
- Subcategory:
- Concealed Closers
- Mounting Location:
- In the Door
- Product Group:
- Door Controls
- Product Subgroup:
- Door Closers - Overhead Concealed
- Product Type:
- Overhead Concealed Closers
- Mounting Detail:
- Concealed - In the Door
- Door Type:
- Interior Door
- Finish Type:
- Powder Coat
- Fluid Type:
- All-Weather
- Delayed Action:
- No
- Fasteners:
- Wood and Machine Screws
- Substrate:
- Iron
- Commercial/Residential:
- Commercial
- Handle Type:
- Lever
- Model:
- 3131
