LCN LCN 4016 Surface-Mounted Heavy Duty Door Closer - Plated Finish LCN-4016-PLATED

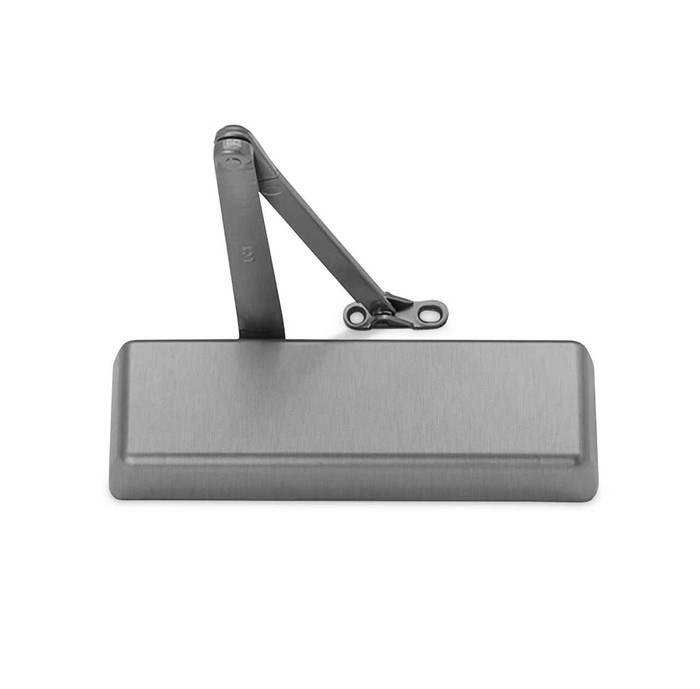

LCN 4016-PLATED Heavy Duty Surface-Mounted Door Closer with Plated Finish and Cast Iron Construction

(No reviews yet) Write a Review

Model: 4016-REG RH-652
$1,273.00
$977.58
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,273.00
$977.58
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 4016 Heavy Duty Surface-Mounted Door Closer with Plated Finish and Cast Iron Construction

Professional Heavy-Duty Door Control Solution

The LCN 4016 Heavy Duty Surface-Mounted Door Closer delivers exceptional performance for institutional and high-traffic commercial applications. Featuring cast iron cylinder construction with 1-1/2" diameter piston and double heat-treated steel pinion journal, this closer accommodates interior doors to 5'0" and exterior doors to 4'0". ANSI/BHMA Grade 1 certified with UL and cUL listings, it includes LCN's patented Green Dial Spring force indicator and comprehensive 30-year warranty coverage.

Professional Features & Benefits

  • Door Size Compatibility: Sized cylinders accommodate interior doors to 5'0" and exterior doors to 4'0" with non-sized cylinder adjustable for interior doors to 4'6" and exterior doors to 3'6".
  • Heavy-Duty Construction: Cast iron cylinder with full-complement bearing and 1-1/2" diameter piston provides exceptional durability for demanding commercial applications.
  • Grade 1 Performance: ANSI/BHMA A156.4 Grade 1 certification with UL and cUL listings ensures compliance with commercial building requirements.
  • Precision Engineering: Double heat-treated steel pinion journal and all-weather fluid provide reliable operation in various environmental conditions.
  • Easy Adjustment: LCN patented Green Dial Spring force indicator eliminates guesswork during installation and adjustment procedures.
  • Premium Finish Options: Plated finish on metal cover, arm and fasteners provides enhanced aesthetics and corrosion resistance for high-visibility installations.
  • Manufacturer Warranty: 30-year warranty coverage provides long-term protection and confidence in product reliability.
  • ADA Compliance: Meets ADA requirements for accessible door operation in commercial and institutional facilities.

Technical Specifications

  • ADA Compliant: Yes
  • BAA Qualified: Yes
  • Closer Size: 6
  • Commercial/Residential: Commercial
  • Cover Type: Metal
  • Delay Function: Yes
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Finish Type: Plated
  • Fluid Type: All-Weather
  • MAP Policy: Yes
  • Mounting Detail: Surface - Hinge (Pull Side)
  • Mounting Hole Pattern: 2-1/2" x 6"
  • Mounting Location: Pull Side
  • Mounting Method: Surface Mount
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Model: 4016
  • Product Subgroup: Door Closers - Surface Mounted
  • Product Substrate: Iron
  • Product Type: Surface Mounted Door Closers
  • Series: 4000 Series
  • Subcategory: Surface Mounted Closers
  • Warranty: 30 Year

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose LCN Quality?

LCN door closers deliver professional-grade reliability with cast iron construction and double heat-treated steel components rated for demanding institutional applications. Backed by a comprehensive 30-year warranty and ANSI/BHMA Grade 1 certification, this closer is engineered for high-traffic commercial environments where dependable performance is essential.

Product Specs

Series:
4000 Series
Duty Level:
Heavy Duty
ADA Compliant:
Yes
BAA Qualified:
Yes
Mounting Hole Pattern:
2-1/2" x 6"
Warranty:
30 Year
Closer Size:
6
Mounting Detail:
Surface - Hinge (Pull Side)
Mounting Location:
Pull Side
Subcategory:
Surface Mounted Closers
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Finish Type:
Plated
Fluid Type:
All-Weather
Commercial/Residential:
Commercial
MAP Policy:
Yes
Product Model:
4016
Cover Type:
Metal
Delay Function:
Yes
Mounting Method:
Surface Mount
Product Category:
Door Controls
Product Substrate:
Iron
Department:
Door Hardware

LCN 4016-REG RH-652 – Frequently Asked Questions

1) Will an LCN 4016 closer handle a 4-foot wide exterior door?
Yes. The 4016 uses sized cylinders that cover exterior doors up to 4'0" wide and interior doors up to 5'0". If you go with the non-sized cylinder instead, the range drops to 4'6" interior and 3'6" exterior. Anything wider than 4'0" on an exterior opening is outside what this closer is sized for.
2) Where does the LCN 4016 door closer mount, and can I put it on the push side?
The 4016 is set up for surface hinge mounting on the pull side of the door. That is the mounting detail it ships configured for, so plan the opening around a pull-side installation. If your opening requires the closer on the push side, this is not the configuration to order.
3) What is the mounting hole pattern on the LCN 4016 closer?
The 4016 lays out on a 2-1/2" x 6" hole pattern. That matters when you are replacing an existing 4000 Series closer or reinforcing a hollow metal door: if the door or frame is already prepped to that pattern, you are reusing the existing holes rather than drilling and tapping fresh. LCN publishes a metal template data sheet for the 4000 Series to lay it out.
4) Do I have to specify handing when ordering an LCN 4016?
Yes, handing is an order choice on the 4016: left hand or right hand. Both hands are offered with either the hold open arm or the regular arm, and across all seven plated finishes. Determine the hand of the opening before you order, because the closer is built to it rather than field-reversible.
5) What is the difference between the hold open arm and the regular arm on the LCN 4016?
The hold open arm (H) lets the door stand open at a set point, which is what you want on a receiving door, a corridor door during moves, or a classroom door held back during the day. The regular arm keeps the door closing every cycle with no hold position, which is what you need on any door that has to latch on its own. Both arms are available in every finish and both hands. Note that a hold open arm is not appropriate on a door that must stay closed as part of a fire or smoke barrier.
6) Is the LCN 4016 ADA compliant for an accessible entrance?
The 4016 is listed as ADA compliant and carries ANSI/BHMA A156.4 Grade 1 certification along with UL and cUL listings. For an accessible opening you still have to adjust the spring power down to the opening force your inspector will measure; the Green Dial spring force indicator on the closer shows you where the spring is set so you are not guessing at it.
7) My opening will not take a pull side hinge mount. What closer should I use instead of the 4016?
The LCN 4016 mounts surface, hinge side, on the pull side of the door. When the opening forces the closer to the push side or the frame face, look at the tri-mount bodies: the Dexter DCH4000 and DCM1000 are Grade 1 surface closers that mount regular, parallel or top jamb, as is the Norton Rixson 8501A. The Dorma 8916-JT is a Grade 1 heavy duty closer with jamb track and frame face mounting on the pull side. Tri-mount lets one closer be installed three ways rather than committing to hinge-side pull.
8) What is the closest heavy duty cast iron alternative to the LCN 4016 door closer?
The Sargent 281 Powerglide is a cast iron surface door closer rated heavy duty and Grade 1, which puts it on the same footing as the 4016, a heavy duty surface mounted closer with a cast iron cylinder. Both are built for the high-traffic institutional openings where a cast body is specified rather than aluminum. The Sargent 1431 Powerglide is the other heavy duty Grade 1 surface closer in the group, with adjustable spring power instead of a sized cylinder.
9) I need a closer with one adjustable spring size instead of ordering a fixed size 6 cylinder. What should I look at?
The LCN 4016 ships as closer size 6, so the spring power is set by the cylinder you order. If a single field-adjustable unit suits the job better, the BEST EHD9000 is an extra heavy-duty surface mounted closer with adjustable spring sizes 1-6, and the Imperial USA TC4300 is a Grade 1 heavy duty closer covering sizes 1-6. The Accentra 51 Series also spans size 1-6 with a hold open arm. Adjustable-power closers let one part number cover several openings on a building.
10) Is a Cal-Royal 400 Series closer an equivalent swap for an LCN 4016?
Not on a spec that calls for Grade 1. The Cal-Royal 400 Series is a Grade 2 commercial hydraulic door closer, while the 4016 is certified to ANSI/BHMA A156.4 Grade 1. Cal-Royal's Grade 1 options are the 500S barrier free closer with adjustable back-check and the 700S dual valve sized closer with adjustable tube arm, and either of those keeps the grade line on the drawing intact.
11) Which closers look like alternatives to the LCN 4016 but are not the same duty class?
Several Grade 1 surface closers sit a duty step below the 4016, which is a heavy duty unit. The Arrow DC314 and DCN314 are Grade 1 but light duty, the Falcon SC81A and the Sargent 1131 and 1331 are medium duty, and the Dormakaba 7303 and 7414 are medium duty as well. They share the Grade 1 line on a submittal but are built for lighter traffic, so on a high-use institutional opening the heavy duty bodies -- BEST HD8000, Falcon SC71A, Design Hardware 416 -- are the like-for-like set.
12) What replaces an LCN 4016 on an aluminum storefront door?
The 4016 is a cast iron bodied closer for hinge-side pull mounting on commercial doors. On narrow-stile aluminum storefront, the Norton Rixson 1600BC Series is a heavy duty Grade 1 aluminum storefront closer with tri-style mounting, and the Norton Rixson 1601P is a Grade 1 tri-mount closer with 180 degree swing. Storefront framing usually decides the mounting before duty does.
13) Is there a slide track closer instead of the exposed arm on the 4016?
Yes. The 4016 uses an exposed arm, either the H hold open or the REGARM regular arm. The Corbin Russwin DC5230 is a Grade 1 surface closer with a slide track arm as standard, pull side mounting, for 1-3/4 inch doors -- the usual choice where a low-profile track is wanted over a projecting arm. Corbin Russwin's DC6200 and DC8200 keep pull side mounting with a double lever regular arm if the exposed arm is acceptable.
14) Which finishes does the LCN 4016 plated closer come in?
Seven plated finishes: 616 satin bronze blackened, 632 bright brass, 633 satin brass, 639 satin bronze, 646 satin nickel, 651 bright chrome, and 652 satin chrome. The plating covers the metal cover, arm and fasteners, so the closer can be matched to lever and hinge finishes on the same opening. For a property manager standardizing a building, 652 satin chrome and 626-family satin finishes are the usual match to existing commercial trim.
15) Can a government or federally funded project use the LCN 4016 closer?
Yes. The 4016 is BAA qualified, which is what a municipal, federal or public school procurement officer needs to confirm before it goes on a domestic preference job. It is also Grade 1 under ANSI/BHMA A156.4 with UL and cUL listings, which covers the usual specification language on institutional work.
16) Does the LCN 4016 have delayed action for a slow close?
Yes, the 4016 has a delay function. That is the valve you want on a healthcare corridor door, a school entry with wheelchair traffic, or any opening where someone needs extra seconds to clear the door before it starts closing. It runs all-weather fluid, so the sweep and delay stay consistent on an exterior door through temperature swings.
17) Is a cast iron door closer worth it over an aluminum body on a high traffic door?
On a high-cycle opening, yes. The 4016 uses a cast iron cylinder with a 1-1/2" diameter piston, a full-complement bearing and a double heat-treated steel pinion journal, which is the construction that holds up on school entries, hospital corridors and apartment building doors. If the opening is low traffic, a cast aluminum body will do the job at a lighter duty rating; the Falcon SC61A is a light to medium duty cast aluminum closer, and the Falcon SC81A is the medium duty version.
18) What is a good alternative to the LCN 4016 if I need one closer that covers several door sizes?
The 4016 is a sized closer at size 6, so it is specified to the opening rather than dialed across a range. If you are stocking one closer for a mix of doors, an adjustable spring model is the better buy: the BEST EHD9000 Series is extra heavy duty Grade 1 with adjustable spring sizes 1-6, and the Sargent 1431 Powerglide is heavy duty Grade 1 with adjustable spring power. The Sargent 281 is the closest match on construction, a heavy duty Grade 1 cast iron closer.
19) I need a hold open closer but not LCN. What else is there?
Two straightforward substitutes for a hold open arm closer: the Accentra 51 Series is a tri-packed hold open arm industrial closer covering sizes 1-6, and the Orca BHDC1958 hold open model is a tri-packed hold open arm closer for 1-3/4" doors. Both are adjustable-spring rather than sized like the 4016, so one unit covers a range of door widths.
20) What is a hold open closer from another brand that does the same job as the 4016 with the H arm?
The 4016 is ordered with an H hold open arm or a REGARM regular arm. For hold open from another line, the Accentra 51 Series is an industrial closer with a hold open arm and tri-packed mounting in sizes 1-6, the Orca BHDC1958HO/PA is a hold open closer with a parallel bracket for 1-3/4 inch doors, and the Stanley A45-501HL carries a long hold open arm for top jamb mounting. Match the arm function first, since hold open is not a field conversion on most bodies.
21) We standardize on one closer across a facility. How does the LCN 4016 compare to a BEST or Falcon program?
The 4016 is a Grade 1 heavy duty closer with a cast iron cylinder and a metal cover, ordered by size and arm. BEST offers a graded ladder in the same category -- SL6000 light duty, HD7000 medium duty, HD8000 heavy duty and EHD9000 extra heavy-duty, all Grade 1 -- and Falcon runs SC91A light duty, SC81A medium duty and SC71A heavy duty. A facility that wants one brand across mixed openings can step through those ranges; a facility specifying cast iron on its highest-traffic doors keeps the 4016 or the Sargent 281 there.
22) I need delayed action on the door. Does the 4016 cover it or do I need a different closer?
The LCN 4016 carries a delay function, so it handles openings that need extra time to cross the threshold. If the job calls for a different body with the same behavior, the Orca BHDC1958DA/PA and BHDC2011DA/PA are delayed action closers with a regular arm and parallel bracket for 1-3/4 inch doors. Delayed action is commonly written into healthcare and accessible openings alongside the ADA requirement the 4016 meets.
23) What is the difference between the LCN 4016 and a Design Hardware 116 or 416 closer?
Design Hardware's 116 and 416 Series are heavy duty closers supplied with a tri-packed non-hold open arm, meaning the arm hardware covers multiple mounting positions out of one carton but does not hold the door open. The 316 Series is rated medium to heavy duty. The 4016 is a heavy duty closer ordered with either a hold open or a regular arm and a specified finish, so the choice comes down to whether you want the arm decided at order time or in the field.
24) Which alternative to the 4016 keeps the closer body concealed by a cover?
The 4016 comes with a metal cover over the cylinder. Among the alternatives, the Dexter DCH1000 is a Grade 1 tri-mount surface closer supplied with a full cover, and the Design Hardware 316 Series is furnished with a cover. By contrast, the Arrow DCN314 and DCN325 are specified less cover, so if the cover matters on a visible opening those are not the swap.
25) Does the LCN 4016 come with a cover, or do I order that separately?
A metal cover is part of the 4016 and it is plated to match the arm and fasteners in the finish you select. That is different from less-cover closers like the Arrow DCN314 and DCN325, which ship without one. If the closer is going somewhere people see it, the covered plated unit is the one to order.
26) Is the LCN 4016 rated for commercial use or is it a residential closer?
Strictly commercial. The 4016 is a heavy duty commercial closer built for institutional traffic, offices, schools, healthcare, retail, warehouses, multi-tenant residential buildings and government facilities. For a light-duty interior application it is more closer than the opening needs; the Falcon SC91A is a light duty option and the BEST SL6000 is a Grade 1 light duty adjustable closer.
27) Do the Stanley 327 and 341 work as a substitute for a surface door closer?
No. The Stanley 327 and 341 are wardrobe pivots -- the 327 for 1-3/8 inch or 1-3/4 inch doors up to 150 pounds and the 341 for flush recessed or overlay doors 1-1/8 inch to 1-3/8 inch. They hang and swing a door; they do not control its closing. A surface mounted hydraulic closer such as the 4016 is what regulates closing speed and latching on a commercial opening.
