LCN 8310-3856WF 4-1/2" Round Wireless Touchless Actuator with Handicap Symbol and Weather Trim

LCN 8310-3856WF 4-1/2" Round Wireless Touchless Actuator with Handicap Symbol and Weather Trim

(No reviews yet) Write a Review

Model: 8310-3856WF

In Stock (leaves warehouse same day if ordered before 3pm ET)

$816.00
$515.32
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

LCN 8310 Series 4-1/2" Round Wireless Touchless Actuator with Handicap Symbol and Weather Trim

Professional Touchless Access Control Solution

The LCN 8310 Series wireless touchless actuator provides hands-free door operation through advanced motion sensing technology. This 4-1/2" round wall and flush mount unit includes the 8310-856 actuator, 8310-844 transmitter, 8310-868F flush box, and 8310-800 weather/trim ring for complete installation flexibility. Designed for promoting health and well-being in commercial environments, pedestrians simply wave their hand in front of the wall plate to activate door operation without any physical contact required.

Professional Features & Benefits

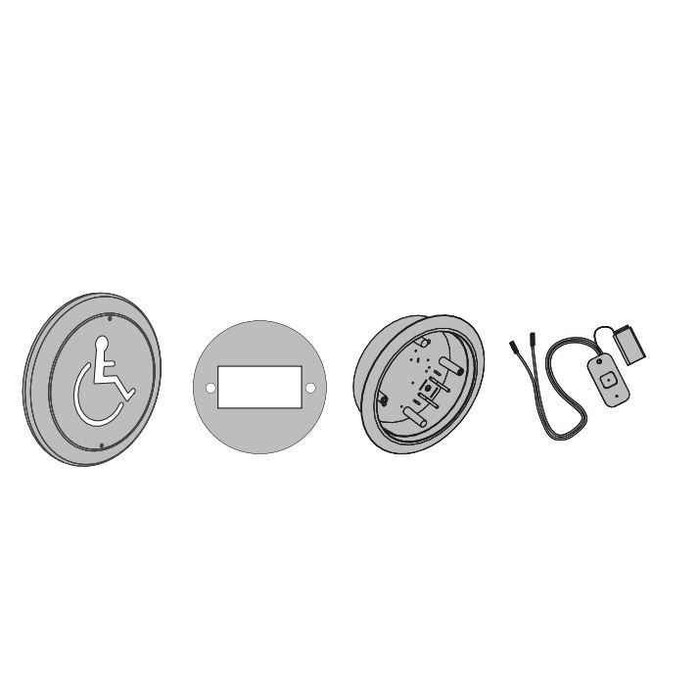

  • Complete Wireless Kit: Includes 8310-856 actuator, 8310-844 transmitter, 8310-868F flush box, and 8310-800 weather/trim ring for comprehensive installation options.
  • Touchless Motion Sensing: Advanced technology detects hand motion to acknowledge intent to enter without requiring contact with actuator, door handle, push bar, or door surface.
  • Dual Mounting Options: 4-1/2" round design supports both wall mount and flush mount installation for aesthetic flexibility and reduced susceptibility to accidental damage.
  • Weather-Resistant Construction: Includes weather trim ring for enhanced durability in challenging environmental conditions.
  • ADA Compliance Ready: Features handicap symbol marking for accessibility compliance in commercial applications.
  • Wireless Operation: Eliminates complex wiring requirements while maintaining reliable communication with compatible receiver systems.
  • Health and Safety Focus: Promotes hygiene and well-being by eliminating the need for physical contact with door activation hardware.
  • Stainless Steel Construction: Durable stainless steel substrate with powder coat finish for long-lasting commercial performance.

Technical Specifications

  • ADA Compliant: Yes
  • Application: Actuator
  • Box: 8310-868F
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Finish Type: Powder Coat
  • Mounting Method: Wall Mount
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Color: Blue
  • Product Dimension: 4-1/2"
  • Product Group: Electronic Access Controls
  • Product Model: 8310-3856WF
  • Product Shape: Round
  • Product Subgroup: Parts and Accessories
  • Product Substrate: Stainless Steel
  • Product Type: Door Actuators & Plates
  • Relay Action: Momentary (MOM)
  • Series: 8310 Series
  • Subcategory: Closer Parts and Accessories
  • Symbol: Handicap
  • Touchless Activation: No
  • Transmitter: 8310-844
  • Weather Resistant: Yes
  • Wireless Communication: Yes

Professional Applications

  • Healthcare Facility Access Control
  • Commercial Building Automatic Door Systems
  • Educational Institution Safety Systems
  • Retail Establishment Entry Points
  • Government and Municipal Buildings
  • Industrial Facility Monitoring
  • Multi-Tenant Residential Properties

Touchless Technology Advantage

LCN 8310 Series touchless actuators represent the evolution of access control technology, replacing traditional push buttons to promote health and hygiene in high-traffic environments. The motion sensing technology acknowledges user intent without requiring physical contact, making it ideal for facilities prioritizing cleanliness and accessibility compliance.

Why Choose LCN Quality?

LCN 8310 Series touchless actuators deliver professional-grade reliability with comprehensive component kits and weather-resistant construction designed for demanding commercial applications. The wireless design eliminates complex installation requirements while maintaining dependable performance. Engineered for facilities where hygiene, accessibility, and reliable automatic door operation are essential.

Product Specs

Series:
8310 Series
Box:
8310-868F
Relay Action:
Momentary (MOM)
Symbol:
Handicap
Transmitter:
8310-844
Application:
Actuator
Touchless Activation:
No
Subcategory:
Closer Parts and Accessories
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Door Actuators & Plates
Finish Type:
Powder Coat
Weather Resistant:
Yes
Commercial/Residential:
Commercial
Electronic:
Yes
Wireless Communication:
Yes
ADA Compliant:
Yes
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
8310-3856WF
Product Color:
Blue
Product Dimension:
4-1/2"
Mounting Method:
Wall Mount
Product Shape:
Round
Product Category:
Electronic Access Controls
Product Substrate:
Stainless Steel
Department:
Door Hardware

LCN 8310-3856WF – Frequently Asked Questions

1) What comes in the box with the LCN 8310-3856WF touchless actuator kit?
The 8310-3856WF ships as a complete kit: the 8310-856 4-1/2 inch round actuator, the 8310-844 wireless transmitter, the 8310-868F flush box, and the 8310-800 weather/trim ring. That covers both wall mount and flush mount installation, so you don't have to order a box or trim ring separately. What it does not include is the receiver on the operator side, which has to already be there or be ordered with the automatic operator.
2) Can the LCN 8310 wireless actuator be mounted outside on an exterior entrance?
Yes. The 8310-3856WF is a weather resistant unit and the kit includes the 8310-800 weather/trim ring for exterior use, with a stainless steel substrate under a powder coat finish. That is the version to order for an outside push plate; the plain interior actuator without the weather ring is the wrong pick for a door exposed to the elements.
3) Do I have to run wire to the LCN 8310-3856WF actuator?
No wire is needed between the plate and the operator. The 8310-3856WF is a wireless actuator, paired with the included 8310-844 transmitter, so there is no conduit run from the push plate back to the door. That is the reason to choose this over a wired plate on a retrofit: you can put an activation point across a vestibule or on the far side of a corridor without opening walls. The transmitter still needs power at the actuator location and a compatible receiver at the operator.
4) Will a 4-1/2 inch round actuator fit in the same opening as my old square push plate?
Not usually. The 8310-3856WF is a 4-1/2 inch round plate, and a square plate of the same nominal size leaves corners exposed if you swap shapes on the same cutout. The kit's 8310-868F flush box sets the rough opening for a flush install, and the 8310-800 trim ring covers the perimeter on a surface install. If you need a square plate to match the rest of a building's openings, the Camden CM-45 Series is a 4-1/2 inch square push plate switch available wired or with a kinetic wireless transmitter.
5) Is the LCN 8310-3856WF ADA compliant for an accessible entrance?
The 8310-3856WF is ADA compliant and carries the handicap symbol on the face of the plate, which is what an inspector looks for at an accessible powered entrance. It is a commercial rated device, and the touchless activation means no force is required to operate it at all.
6) I need to mount an 8310 actuator on the door jamb instead of a flat wall - what box do I use?
The 8310-3856WF comes with the 8310-868F box, which is sized for the 4-1/2 inch round plate in wall and flush applications. For a narrow jamb, the Falcon 8310-819F is a rugged plastic actuator mounting box measuring 1-1/2 inch by 4-3/4 inch rectangle, built for jamb and flush mount, and it is part of the same 8310 Series. A jamb face rarely gives you the width a 4-1/2 inch round plate needs, so the rectangular jamb box is the one to spec when the actuator has to land on the frame.
7) What is the difference between the LCN 8310-3856WF actuator and the Camden CM-45 push plate switch?
Shape and activation method separate them. The LCN 8310-3856WF is a 4-1/2 inch round actuator that mounts to the wall, while the Camden CM-45 is a 4-1/2 inch square push plate switch. Both can run wireless: the LCN kit ships with the 8310-844 transmitter, and the CM-45 series is offered wired or with a kinetic wireless transmitter. If the other openings in the building already carry square plates, the CM-45 matches that look; if you want the round plate, the LCN is the one. Note the Camden CM-45 carries no fire rating, which matters if the plate is going on a rated opening.
8) Does the LCN 8310 actuator hold the door open or just trigger it?
It triggers. The relay action is momentary, so the actuator sends a single pulse to the operator and the hold-open time is set at the automatic operator, not at the plate. If you need a longer dwell for a wheelchair user or a cart, that adjustment happens on the operator control, not on this push plate.
9) Should I flush mount or surface mount a touchless door actuator?
Both are covered by the 8310-3856WF kit, and the choice is about exposure. Flush mounting into the included 8310-868F box sits the plate in the wall, which is what you want in a corridor or a high-traffic entry where a proud plate gets hit by carts and gurneys. Surface mounting with the 8310-800 trim ring is the retrofit path when you cannot cut a box into a block or tile wall. Same actuator either way.
10) How does a wave-to-open actuator work compared to a standard push button plate?
A pedestrian waves a hand in front of the plate and the motion sensing picks up the intent to enter, so nobody touches the actuator, the handle, the push bar, or the door face. In a hospital, a clinic, or a school washroom entry that is the difference between a shared touch point and none. Mechanically it does the same job as a push button: a momentary signal to the automatic operator. If your facility does not care about touch points, a conventional push plate switch such as the Camden CM-45 Series does the same activation.
11) The actuator is going on an exterior entrance - does the Camden CM-45 work outside the same way?
The LCN 8310-3856WF is specified weather resistant and ships with the weather trim ring, so it is the one built for an exposed exterior opening. The Camden CM-45 series is a 4-1/2 inch square push plate switch available wired or with a kinetic wireless transmitter; for an outdoor entrance where the plate takes rain and temperature swings, the weather-resistant LCN plate is the safer spec. Indoors, on a protected vestibule or corridor door, either footprint works.
12) We want a hardwired push plate rather than a wireless one - what is the alternative to the LCN 8310-3856WF?
The LCN 8310-3856WF is a wireless unit and comes with the 8310-844 transmitter. If the opening already has conduit run to it and you would rather land wires on the plate, the Camden CM-45 series 4-1/2 inch square push plate switch is offered wired or with a kinetic wireless transmitter, so the same series covers a hardwired installation. Same 4-1/2 inch face size, square instead of round.
13) What color is the LCN 8310 touchless actuator plate?
Blue, powder coated over a stainless steel substrate with the handicap symbol. That is the standard accessible-entrance appearance, so it will read the same as the blue actuators on your other openings rather than standing out as a mismatch.
