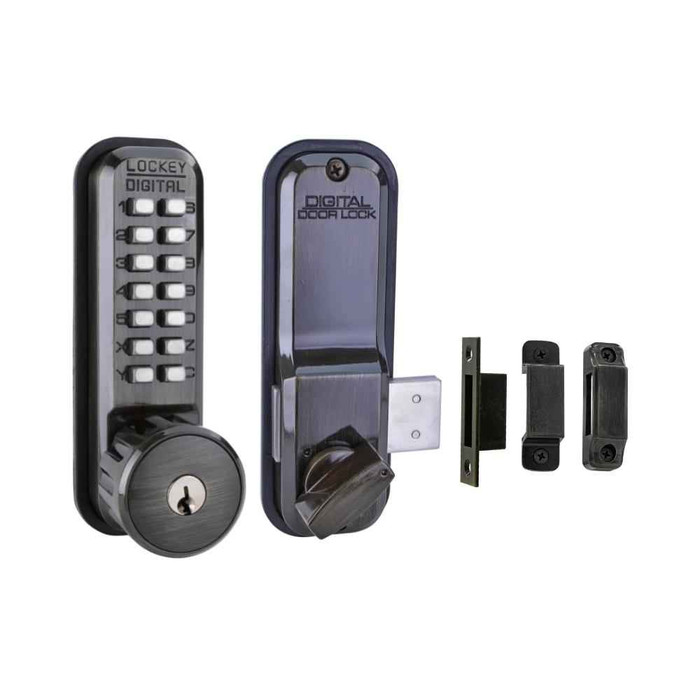

Lockey 2200 Series Mechanical Pushbutton Surface Mount Deadbolt Lock with Adjustable Throw

Lockey 2200 Series Mechanical Pushbutton Surface Mount Deadbolt

The Lockey 2200 Series is a fully mechanical, battery-free pushbutton deadbolt designed for surface/rim mount installation on commercial and multi-family doors. A 3/4" deadbolt throw, adjustable backset, and field-reversible handing make it adaptable across a wide range of openings — from narrow stile doors and cabinet applications to standard commercial entries. Zinc-plated steel body with Teflon-coated stainless steel interior components delivers smooth, long-lasting operation with no power source required.

Key Features

• Fully Mechanical — No Batteries or Wiring: Pushbutton combination lock operates without any electrical connection, making it ideal for locations where power is unavailable or unreliable.
• 3/4" Deadbolt Throw: Includes both long (2-1/4") and short (7/8") throw bars for versatile strike compatibility.
• Adjustable Backset: Field-adjustable to fit a range of door preparations without additional hardware.
• Wide Door Thickness Range: Standard fit for doors 1-1/8" to 2" thick; optional extension kits available for doors from 1/8" up to 5" thick.
• Changeable Handing: Field-reversible for left- or right-hand door applications — no extra parts needed.
• Single User Code: One combination code provides reliable keyless access control for the opening.
• Key Override Option: Select variants include a key override cylinder for emergency or master-key access (KO suffix SKUs).
• Exterior Knob + Interior Thumb Turn: Convenient egress from inside while maintaining deadbolt security from outside.
• Weather-Resistant Construction: Suitable for exterior and interior applications in demanding environments.
• Compact Surface Mount Footprint: 5-5/8" H x 1-5/8" W x 1-5/8" D body; 6" x 2-1/2" total coverage including trim plates — fits narrow stile doors.

Technical Specifications

• Deadbolt Throw: 3/4"
• Throw Bars Included: Long 2-1/4" and short 7/8"
• Backset: Adjustable
• Door Thickness (Standard): 1-1/8" to 2"
• Door Thickness (With Optional Kits): 1/8" to 5"
• Body Dimensions: 5-5/8" H x 1-5/8" W x 1-5/8" D
• Total Coverage (with Trim Plates): 6" x 2-1/2"
• Construction: Zinc-plated steel body; Teflon-coated stainless steel interior components
• Handing: Field-reversible (left or right)
• Power Required: None — fully mechanical
• Mount Type: Surface / Rim Mount
• Commercial/Residential: Commercial

Common Applications

• Commercial office and retail entries
• Multi-family and multi-tenant residential properties
• Educational facilities and institutional buildings
• Healthcare and government facilities
• Narrow stile doors, gates, and cabinet applications
• Locations requiring battery-free or power-outage-safe access control
