Features
- Mechanical, keyless lock with one user code
- Replaces 2230
- Knob on exterior and interior
- Auto-locking with passage function
- Reversible handing
- Adjustable latch
- Covers standard 2 1/8” hole
Dimensions & Specifications
- Dimensions: 5 5/8” L x 1 5/8″ W x 2 1/4″ D
- Total Coverage with Trim Plates: 6 1/2” L x 2 1/2” W
- Backset: Adjustable
- Door Thickness: 1 1/8” to 2”, up to 5” with Extension Kit
- Material: Zinc-plated steel with Teflon coated stainless steel interior component
- For Exterior & Interior Us
- Weather Resistant

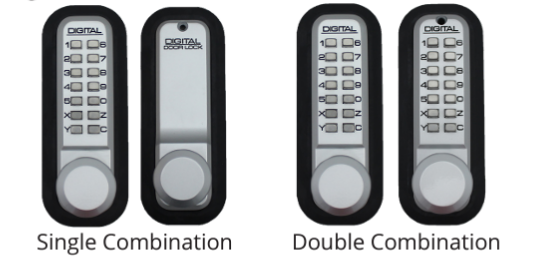

Options:
- Single Combination

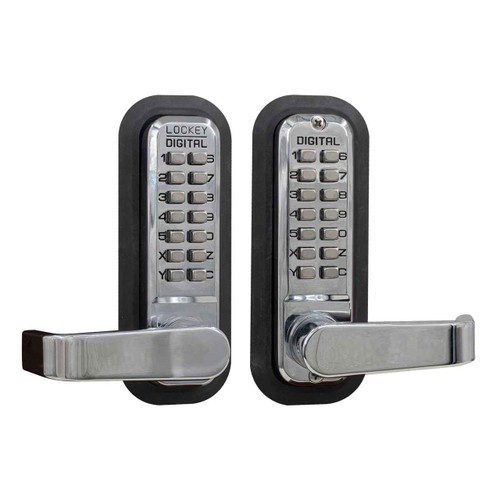

- Double Combination
Finishes:
- Antique Brass (AB)
- Bright Brass (BB)
- Bright Chrome (BC)
- Jet Black (JB)
- Marine Grade (MG)
- Oil Rubbed Bronze(OB)
- Satin Chrome (SC)
- Satin Nickel (SN)
- White (WH)
Downloads
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Product Group:
- Mechanical Locks
- Dimensions:
- 5 5/8" L x 1 5/8" W x 2 1/4" D
- Door Thickness:
- 1-1/8" to 2"
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Knobsets
- Subcategory:
- Mechanical Push Buttons
- Substrate:
- Zinc-Plated Steel
- Commercial/Residential:
- Commercial
- Function:
- Passage/Hall/Closet
- Handle Type:
- Knob
- Lock Function:
- Passage
- Backset:
- Adjustable
- Product Attribute:
- Cylindrical Locks
