Features

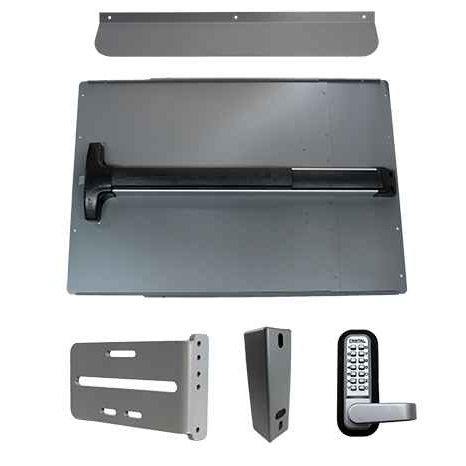

• Kit Includes:
• Edge Style Panic Shield
• Edge Style Strike Bracket
• 285P Keyless Keypad Lock
• Edge Style 285P Gate Box
• Edge Style Max Guard
• Edge Style Latch Protector
• Jamb Stop
• Detex V-40 33″ Panic Bar

Options

• Finish (applies to Shield, Strike, Gate Box, Max Guard, Latch Protector):
• Black, Silver (does not apply to Panic Bar)

Dimensions & Specifications

• Panic Shield Dimensions: 24″ L x (28″ – 54″) W x 1/2″ D
• Strike Bracket Dimensions: 4 1/2″ L x 3 1/2″ W x 1 1/4″ D
• Latch Protector Dimensions: 23 1/2″ L x 6″ W x 2 1/2″ D
• Jamb Stop Dimensions: 5″ L x 2″ W x 1/4″ D
• Max Guard Dimensions: 26″ L x 4 3/4″ W x 3/4″ D
• Lock Gate Box Dimensions (PSGB200): 7″ L x 1 3/4″ W x 1 1/2″ D
• Lock Dimensions (285P): 5 1/2″ L x 1 5/8″ W x 2 1/4″ D
• Panic Bar Length: 33″ (36″ Doors) or 42″ (48″ Doors)

Downloads

Download Installation Instructions
