Lockey PS53 Standard Panic Shi...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,785.34
$1,536.24
Lockey PS53 Standard Panic Shield Safety Kit with Detex V-40xEBxW Weatherized Alarm Panic Bar

Lockey PS53 Standard Panic Shield Safety Kit with Detex V-40xEBxW Weatherized Alarm Panic Bar

(No reviews yet) Write a Review

Model: PS53xB
Selected Finish is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,785.34
$1,536.24
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Lockey PS53 Standard Panic Shield Safety Kit with Detex V-40xEBxW Weatherized Alarm Panic Bar

Complete Panic Shield Security Solution with Weatherized Alarm Protection

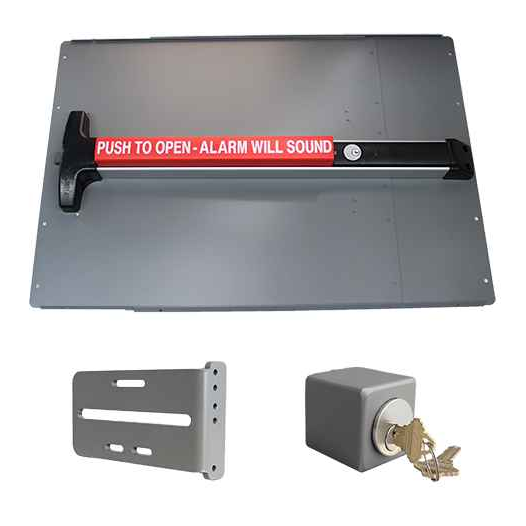

The Lockey PS53 Standard Panic Shield Safety Kit provides comprehensive gate security with integrated alarm protection through the included Detex V-40xEBxW 33" weatherized alarm panic bar. This complete kit includes a standard style panic shield with dimensions of 24" L x (28" - 54") W x 1/2" D, standard style strike bracket measuring 7" L x 3 1/2" W x 1 1/4" D, keyed cylinder with Schlage keyway, and keyed cylinder gate box (PSGB5) at 2" L x 2" W x 2" D. Available panic bar lengths accommodate 36" doors (33" bar) or 48" doors (42" bar) for versatile gate applications.

Professional Features & Benefits

  • Complete Kit Solution: Includes panic shield, strike bracket, keyed cylinder, gate box, and Detex weatherized alarm panic bar for comprehensive gate security.
  • Flexible Door Compatibility: Panic bar available in 33" length for 36" doors or 42" length for 48" doors to accommodate various gate configurations.
  • Weatherized Alarm Protection: Detex V-40xEBxW panic bar provides outdoor-rated alarm functionality for perimeter security applications.
  • Standard Schlage Keyway: Keyed cylinder features standard Schlage keyway for compatibility with existing key systems.
  • Adjustable Shield Width: Panic shield accommodates gate widths from 28" to 54" with 24" length and 1/2" depth profile.
  • Keying Options: Available with keyed alike or keyed different cylinder configurations for flexible access control.
  • Finish Options: Shield, strike bracket, and gate box available in black or silver finishes to match gate aesthetics.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Panic Bar Length: 33" (36" Doors) or 42" (48" Doors)
  • Product Category: Exit Devices and Trim
  • Product Group: Exit Devices and Trim
  • Product Model: PS53
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Panic Shields
  • Subcategory: Panic Shields

Professional Applications

  • Commercial Property Perimeter Security
  • Industrial Facility Access Points
  • Multi-Unit Residential Complexes
  • Parking Facility Entry Systems
  • Warehouse and Distribution Centers
  • Emergency Exit Compliance for Gated Areas
  • Retail Facility Secured Perimeters

Weatherized Construction

The included Detex V-40xEBxW panic bar features weatherized construction specifically designed for outdoor gate applications. This weatherized design ensures reliable alarm operation in exterior environments while maintaining code compliance for emergency egress requirements.

Why Choose Lockey Quality?

Lockey panic shield systems deliver professional-grade security with comprehensive kit solutions that include all necessary components for complete installation. The PS53 kit combines standard panic shield protection with weatherized alarm functionality, engineered for demanding commercial gate applications where reliable perimeter security and emergency egress compliance are essential.

Product Specs

Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Panic Shields
Subcategory:
Panic Shields
Commercial/Residential:
Commercial
Panic Bar Length:
33" (36" Doors) or 42" (48" Doors)
Product Model:
PS53
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Lockey PS53xB – Frequently Asked Questions

1) What gate widths does the Lockey PS53 panic shield fit?
The PS53 standard panic shield covers gate widths from 28 to 54 inches. The shield itself measures 24 inches long by 28 to 54 inches wide by 1/2 inch deep, so it spans the gap on most walk gates without needing a custom plate. The panic bar that ships with the kit is sized separately: a 33 inch bar for 36 inch doors, or a 42 inch bar for 48 inch doors.
2) Which panic bar length do I order for a 48 inch gate?
Order the 42 inch bar for a 48 inch door or gate leaf. The 33 inch bar is the one for 36 inch doors. Both are the Detex V-40xEBxW weatherized alarm bar that comes with the PS53 kit, so the alarm function is the same either way, only the bar length changes.
3) Can the PS53 cylinder be keyed to match the rest of my property's Schlage keys?
The keyed cylinder in the PS53 uses a standard Schlage keyway, so it works with a Schlage-keyed system already on the property. You choose keyed alike or keyed different at order time. Property managers running one key across a fence line usually want keyed alike; separate tenants or separate gates generally get keyed different.
4) Why use a panic shield on a gate instead of just mounting a panic bar?
On a perimeter gate there is usually a gap between the leaf and the post, and an open picket or mesh panel means someone can reach through and hit the push bar from the secure side. The shield is a solid plate that closes that reach-through path while leaving free egress intact from the inside. A bare rim exit device on an open gate gives you the egress but none of the tamper protection.
5) Will the PS53 alarm bar hold up outdoors on an exterior gate?
Yes. The Detex V-40xEBxW included in the kit is the weatherized version of the bar, built for exterior gate mounting, and the shield, bracket and gate box are all exterior gate components. That is the whole point of this kit versus an indoor rim device.
6) Is the PS53 suitable for a commercial pool gate or apartment complex perimeter?
The PS53 is rated commercial and is aimed at exactly that kind of opening: multi-unit residential perimeters, parking facility entries, warehouse and distribution yards, and secured retail perimeters where you still need a code-compliant way out. Free egress comes from the panic bar; the shield and keyed cylinder handle the secure side.
7) Is the PS53 shield a fixed size or does it adjust to my gate?
The shield covers a width range of 28 to 54 inches rather than being a single fixed plate, with a 24 inch dimension the other way and a 1/2 inch depth profile. That range is why one part number handles most standard walk gates. Measure your leaf width before ordering and confirm it lands inside 28 to 54 inches.
How fast can I get the Lockey PS53xB delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Lockey PS53xB come with a warranty?
Absolutely. The Lockey PS53xB is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Lockey PS53xB?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Lockey PS53xB from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
