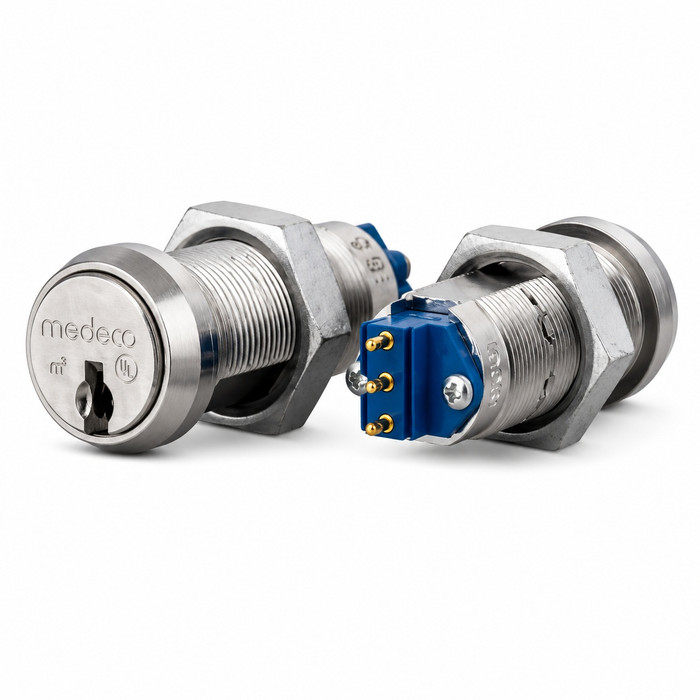

Medeco’s 3/4" diameter, high security Switch Locks offer a wide range of electrical functions with the
physical security and patented key control of a Medeco cylinder. Available in either single or double switch models, Medeco Switch Locks are ideally suited for applications requiring controlled access to electrically
activated systems, including alarms, ATMs, time delay safes, encryption devices, heavy power equipment,
control panels and electrically accessed doors and gates. The Medco3 unique design provides
triple locking action, making the locks virtually pick proof.

FEATURES

Benefits

• All Medeco cylinders are constructed of durable machined brass components, designed to last the life of your equipment.
• Available in single or double switch models, momentary and maintained positions.
• Silver or gold contacts (for low amperage applications) designed to accept quick connect leads.
• Hardened stainless steel inserts inside the cylinder provide the ultimate defense against drilling and other forms of physical attack.
• Unique elevating and rotating tumbler pin system is virtually pick proof.
• Medeco3 keys may only be duplicated by Medeco or an authorized Medeco service outlet, and only at
your request.
• Medeco Switch Locks are completely serviceable, and can be re-keyed in case of lost or stolen keys.
• Locks can be keyed alike, keyed different, or master keyed depending on your specific needs.

Certification

• UL 437 Listed
• Switch - UL Registered, CSA Certified

Warranty

Warranted for two (2) years against manufacturer’s
defects. See the Medeco® limited warranty for full details.

Finishes

26 satin chrome finish standard.

Applications

Medeco High Security Switch Locks can be used in any standard 3/4 inch diameter switch lock application and a multitude of markets includcluding:• Heavy Power Machinery
• Time Delay Safes
• Material Handling Equipment
• Construction Vehicles
• Electrically Accessed Gates
• Cash Control Systems
• Encryption Devices
• Alarms
• Control Panels
• ATMs

Technical Information

• Five pin, 3/4 inch double “D” mounting standard.
• Available in either single or double switch models with
either silver or gold contacts.
• Rated at 7 amps resistive at 125/250 VAC.
• Contacts designed to accept quick connect leads
(AMP connector number 60598-3)
