NGP 221SSS Stainless Steel Automatic Door Bottom Neoprene Seal
Product Features
- BHMA certified to ANSI/BHMA A156.22, 1,000,000 cycle test-grade 1
- BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold
- Stainless steel type 304
- Synthetic rubber polymer: Siloxane closed cell sponge
- Excellent flexibility and memory
- Flame resistant
- Moisture resistant
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV and aging
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- Mounts on push side of door
- Use with a threshold for maximum sealing capability
- Nylon brush recommended for carpet applications where no threshold is provided
- Specify exact net length required to avoid field sizing
- 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
- Minimum length 11", maximum length 60"
- End caps furnished standard
- Door bottom is handed. Right hand supplied unless specified. Units under 36" not field reversible. Please specify handing

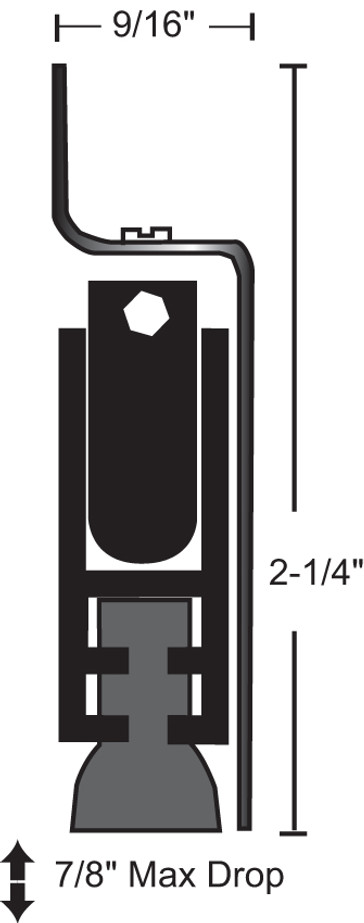

- 7/8" max drop
- Brushed #4 finish (US32D, 630)
- Silicone is gray
Manufacturer Resources
Product Specs
- Category:
- Door Trim and Accessories
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Bottom Sweeps and Door Shoes
- Product Type:
- Automatic Door Bottoms
- Subcategory:
- Gaskets & Weatherstripping
- Commercial/Residential:
- Commercial
