Norton Rixson 5740K3 Series Do...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$6,108.59
$3,359.72
Norton Rixson Norton Rixson 5740K3 Series Door Operator Kit - 5740 Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, (2)Transmitters NOR-5740K3

Norton Rixson 5740K3 Series Door Operator Kit - 5740 Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, (2)Transmitters

(No reviews yet) Write a Review

Model: 5740K3 689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,108.59
$3,359.72
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NORTON RIXSON 5740K3 5700 SERIES DOOR CLOSER KIT (OPERATOR, PUSH & PULL ARMS, POWER CORD, RECEIVER, PUSH BUTTONS, TRANSMITTERS OVERVIEW

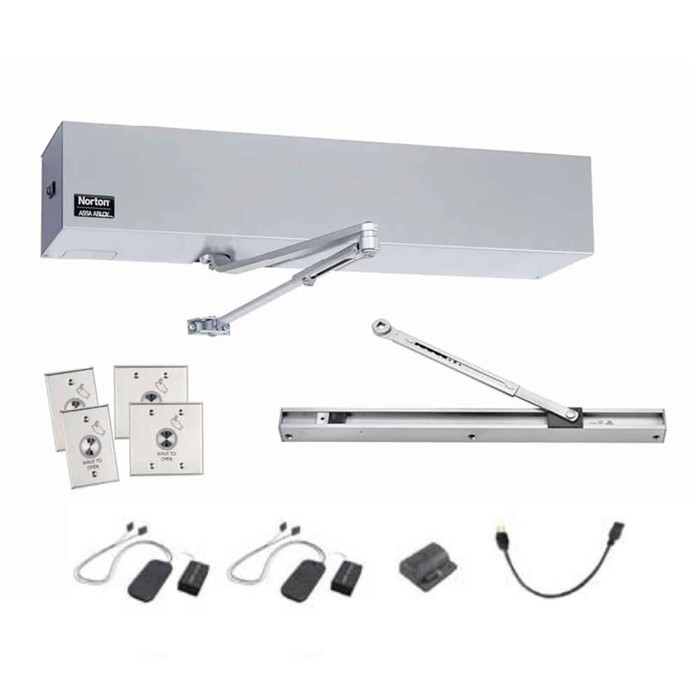

The Norton 5740K3 5700 Series Door Closer Kit includes everything needed for a complete low-energy door automation solution: Norton 5740 operator (configured for push applications), push and pull arms, power cord, receiver, (2) push buttons, and (2) transmitters.

The Norton Rixson 5700 Series Low Energy Power Operators, featuring the Norton 5740, provide a quiet, ADA-compliant solution for automating both residential and commercial doors. At its core, the system utilizes a heavy-duty Norton Rixson 1600 Series door closer for smooth and consistent performance. This electrohydraulic closer is ideal for medium-traffic interior and exterior doors and is compatible with electric strikes and other access control accessories.

The Norton 5740 operator is non-handed and supports both push and pull side mounting. It accommodates doors up to 250 lbs and widths ranging from 28" to 48". With simple installation and activation through push buttons or wave-to-open switches, the Norton 5740 ensures reliable and user-friendly door automation.

Choose the Norton Rixson 5740K3 Door Closer Kit for a dependable, all-in-one solution for automated door control.

NORTON RIXSON 5740K3 ELECTROHYDRAULIC POWER OPERATOR PRODUCT FEATURES

  • Includes 5700 operator (configured for push applications), push & pull arms, power cord, receiver, (2) push buttons and (2) transmitters.
  • Non-handed
  • Push or pull side mounting
  • Comprises heavy-duty Norton Rixson 1601 door closer
  • Door widths:28"-48"
  • Optional kit includes, wall switches and plug-in power cord
  • Operates as mechanical surface close during close cycles, when door is opened manually or if power is off
  • Spring force provides the feel of a manual door closer
  • Door can be opened manually if desired
  • Adjustable spring power
  • Backcheck valve
  • Sweep valve & latch valve
  • End-user on/off switch
  • Adjustable door sensitivity
  • Onboard power supply for accessories: 24VDC (1.1A)

5740K3 ELECTROHYDRAULIC POWER OPERATOR CERTIFICATIONS

  • ANSI/BHMA A156.19 certified
  • Meets ANSI/BHMA A156.4 requirements
  • UL / cUL listed for use on fire rated doors
  • UL10C listed for positive pressure fire test
  • Manufactured in an ISO 9001 and ISO 14001 certified facility
  • Complies with requirements for the Americans with Disabilities Act (A.D.A)

5740K3 ELECTROHYDRAULIC POWER OPERATOR COLOR VARIATION

Norton Rixson 5740K3 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, Transmitters 689 Aluminum
Norton Rixson 5740K3 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, Transmitters 690 Statuary Bronze
Norton Rixson 5740K3 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, Transmitters 691 Dull Bronze
Norton Rixson 5740K3 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, Transmitters 693 Black
Norton Rixson 5740K3 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, Transmitters 694 Medium Amber
Norton Rixson 5740K3 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, Transmitters 696 Gold
Norton Rixson 5740K3 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, Transmitters BSP Black Suede Powder
Norton Rixson 5740K3 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, Transmitters WSP White Suede Powder

NORTON RIXSON 5700 SERIES COLLECTION

Norton Rixson 5700 Series Electrohydraulic Low Energy Power Operators
Norton Rixson 5710 Slide Track Arms Pull Side Closer Size 1-6 Low Energy Power Operator
Norton Rixson 5710-RF1 Slide Track Arms Pull Side Closer Size 1-6 Radio Frequenzy Low Energy Power Operator
Norton Rixson 5710DMY Dummy Unit Closer Size 1-6 Electrohydraulic Low Energy Power Operators
Norton Rixson 5730 Double Lever Arms Push Side Closer Size 1-6 Low Energy Power Operator
Norton Rixson 5730-RF1 Double Lever Arms Push Side Closer Size 1-6 Radio Frequency Low Energy Power Operator
Norton Rixson 5730DMY Dummy Unit Closer Size 1-6 Electrohydraulic Low Energy Power Operators
Norton Rixson 5740 Universal Unit (Push and Pull Side Arms) Closer Size 1-6 Low Energy Power Operator
Norton Rixson 5740-RF1 Universal Unit (Push and Pull Side Arms) Radio Frequenzy Closer Size 1-6 Low Energy Power Operator
Norton Rixson 5740K2 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, 700 Touch Less Switches
Norton Rixson 5740K3 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, Transmitters

RESOURCES & DOWNLOADS

Norton Rixson 5740K3 5700 Series Door Closer Kit (Operator, Push & Pull Arms, Power Cord, Receiver, Push Buttons, Transmitters Catalog
Norton Rixson Warranty

Manufacturer Resources

Product Specs

Category:
Door Controls
Series:
5700 Series
Duty Level:
Heavy Duty
Spring Type:
Adjustable Size
Hold Open:
No
Cover:
Full
Delayed Action:
Yes
Traffic Rating:
Moderate Traffic
Warranty:
2 Year Limited
ANSI/BHMA:
ANSI/BHMA A156.19
Product Group:
Door Controls
Product Subgroup:
Power Operators
Product Type:
Door Operators
Subcategory:
Surface Closers
Handing:
Non-Handed
Commercial/Residential:
Commercial
ADA Compliant:
Yes
!
