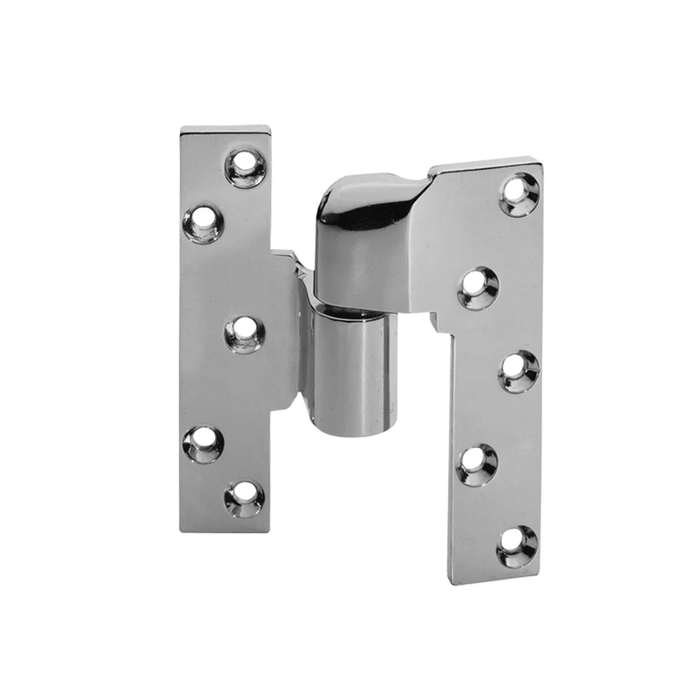

The Norton Rixson FA19 is a fire-rated intermediate pivot designed specifically for institutional applications and installations where flat surfaces are objectionable. This full mortise pivot features a 3/4" (19mm) offset design and is rated for 3-hour fire door assemblies. Constructed with ferrous base material for heavy-duty commercial use, the FA19 maintains proper door alignment while accommodating doors from 60" (1524mm) to 90" (2286mm) in height with one intermediate pivot required.

Professional Features & Benefits

• Fire-Rated Construction: 3-hour fire rating allows use with fire door assemblies for code-compliant installations in commercial and institutional buildings.
• Institutional Design: 3/4" (19mm) offset configuration eliminates flat surfaces that could be objectionable in behavioral health and institutional environments.
• Door Height Compatibility: Designed for doors 60" (1524mm) to 90" (2286mm) in height, with additional pivots recommended for each additional 30" (762mm) of door height.
• Heavy-Duty Construction: Ferrous base material provides exceptional durability for demanding commercial and institutional applications.
• Full Mortise Installation: Complete mortise design ensures clean appearance and proper door alignment throughout operation.
• Installation Support: Aids in installing bottom pivots and maintains door alignment for smooth, reliable operation.
• Complete Hardware Package: Furnished with both wood and machine Torx® screws for versatile installation requirements.
• Manufacturer Warranty: 2-year limited warranty provides added confidence and protection for institutional investments.

Technical Specifications

• Application: Fire-Rated
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Handed
• Duty Level: Heavy Duty
• Electronic: No
• Fasteners: Torx Screws Optional
• Fire Rated Time: 3 hours
• Fire Rating: Yes
• Hang Type: Offset Hung
• Mounting Method: Offset
• Pivot Type: Intermediate
• Product Attribute: Pivots
• Product Category: Door Hinges and Pivots
• Product Group: Door Hinges and Pivots
• Product Subgroup: Pivots and Pivot Sets
• Product Substrate: Non-ferrous
• Product Type: Intermediate Pivots - Offset
• Series: FA19
• Subcategory: Intermediate Pivots
• Warranty: 2 Year Limited

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, height compatibility (60" to 90"), and proper door edge beveling of 1/8" in 2".
2. Use manufacturer-provided templates to mark mounting hole locations accurately for full mortise installation in door and frame.
3. Prepare door and frame by routing mortise pockets and drilling required holes as specified in manufacturer instructions.
4. Install pivot using provided wood or machine Torx® screws, ensuring proper hand orientation and secure mounting per manufacturer torque specifications.
5. Adjust pivot alignment to maintain proper door operation and verify smooth movement throughout the full range of motion.
6. Test pivot operation to verify proper function and fire door assembly compliance. Refer to manufacturer documentation for complete installation details and fire rating maintenance requirements.

Professional Applications

• Behavioral Health Facilities
• Educational Institutions
• Healthcare Facilities
• Correctional Facilities
• Government Buildings
• Commercial Fire-Rated Door Assemblies
• Institutional Buildings Requiring Tamper-Resistant Hardware

Why Choose Norton Rixson Quality?

Norton Rixson FA19 pivots deliver professional-grade reliability with ferrous base material construction rated for 3-hour fire door assemblies. The 2-year limited warranty and heavy-duty design ensure dependable performance in demanding institutional environments. Engineered specifically for commercial applications where both fire safety compliance and tamper-resistant design are essential.
