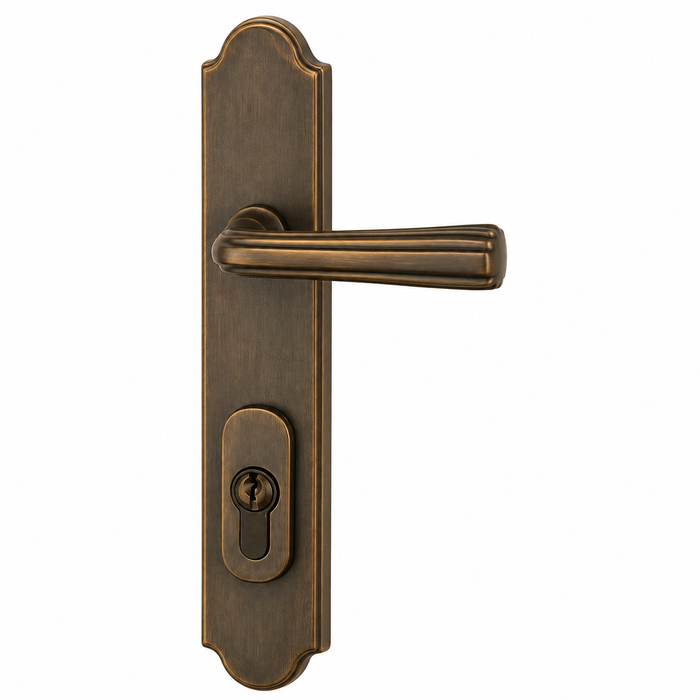

Omnia 71706 Traditional Multipoint Lock Trim 71706 - Solid Brass Construction with 9-5/8" Overall Length

Omnia Traditional Multipoint Lock Trim 71706 - Solid Brass Construction with 9-5/8" Overall Length

Professional Multipoint Lock Trim Solution

The Omnia 71706 Traditional Multipoint Trim delivers professional-grade security hardware with solid brass construction and 9-5/8" overall length for commercial applications. This versatile trim accommodates multiple cylinder configurations including European Cylinder Below (ECB), American Cylinder Above (ACA), and American Cylinder Below (ACB) options. Available in multiple finish options including unlacquered US3A and US5A finishes that develop natural patina over time.

Professional Features & Benefits

• Precise Dimensions: 9-5/8" overall length provides proper proportions for multipoint lock applications on commercial doors.
• Solid Brass Construction: Forged solid brass material ensures exceptional durability and corrosion resistance for long-term commercial use.
• Multiple Cylinder Configurations: Compatible with European Cylinder Below (ECB), American Cylinder Above (ACA), and American Cylinder Below (ACB) installations for versatile security requirements.
• Traditional Design Collection: Classic styling complements traditional architectural elements while maintaining professional appearance standards.
• Authentic Finish Options: Available in US3, US3A, US5A, US10B, US14, and US15 finishes with unlacquered options that develop natural patina characteristics.
• Commercial-Grade Performance: Engineered for demanding commercial applications requiring reliable multipoint locking security.
• Handed Configuration: Available in right-hand (RH) or left-hand (LH) configurations to match door swing requirements.

Technical Specifications

• Collection: Traditional
• Commercial/Residential: Commercial
• Department: Door Hardware
• MAP Policy: Yes
• Product Category: Mechanical Locks
• Product Group: Mechanical Locks
• Product Subgroup: Bored Locksets
• Product Substrate: Brass
• Product Type: Multi Point Lock Trim
• Subcategory: Cylindrical

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Omnia Quality?

Omnia Traditional Multipoint Lock Trim products deliver professional-grade reliability with solid brass construction engineered for demanding commercial applications where dependable performance is essential. The Traditional collection combines classic design elements with modern security functionality, ensuring both aesthetic appeal and operational durability in high-traffic commercial environments.
