Omnia Omnia 71944 Traditional Multipoint Trim, Solid Brass OMN-71944

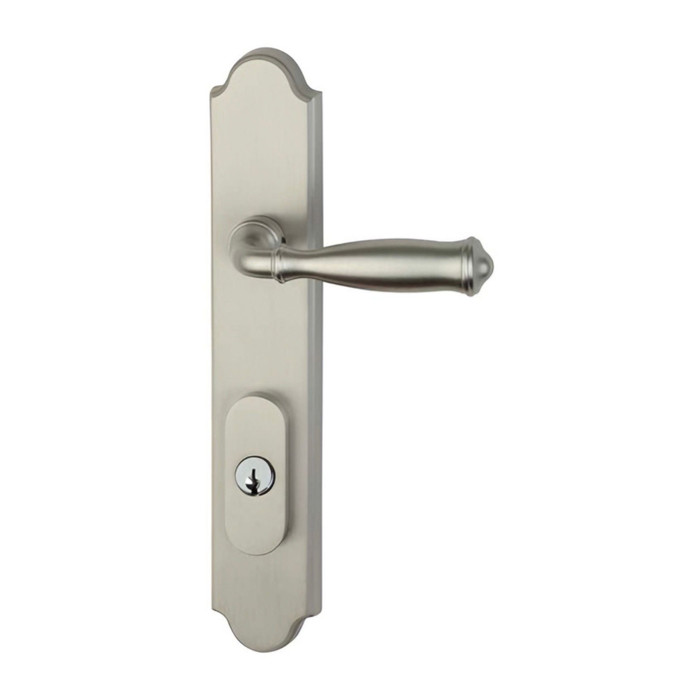

Omnia 71944 Traditional Multipoint Lock Trim, 9-5/8" Solid Brass, Commercial Grade

(No reviews yet) Write a Review

Model: 71944/ACA.3A
From the Traditional Collection
$459.00
$367.40
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$459.00
$367.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Omnia 71944 Traditional Multipoint Lock Trim, 9-5/8" Solid Brass, Commercial Grade

The Omnia 71944 Traditional Multipoint Lock Trim combines solid brass construction with commercial-grade durability for demanding applications. This 9-5/8" overall trim features traditional styling and is available in multiple cylinder configurations including European Cylinder Below (ECB), American Cylinder Above (ACA), and American Cylinder Below (ACB). Multiple finish options including unlacquered US3A and US5A finishes are available, developing natural patina over time. Right-hand (RH) and left-hand (LH) configurations ensure proper door operation for any application.

Key Features

  • Overall Dimensions: 9-5/8" overall length provides proper proportions for multipoint lock applications.
  • Solid Brass Construction: Forged solid brass material delivers exceptional durability and corrosion resistance for long-term commercial use.
  • Multiple Cylinder Configurations: Available as European Cylinder Below (ECB), American Cylinder Above (ACA), and American Cylinder Below (ACB) for versatile installation options.
  • Traditional Design: Classic styling complements traditional architectural applications while maintaining professional appearance.
  • Commercial Grade Performance: Engineered for demanding commercial applications requiring reliable multipoint locking functionality.
  • Multiple Finish Options: Available in US3, US3A, US5A, US10B, US14, and US15 finishes including unlacquered options that develop natural patina.
  • Hand Specification Required: Available in right-hand (RH) or left-hand (LH) configurations for proper door operation.

Technical Specifications

  • Collection: Traditional
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • MAP Policy: Yes
  • Product Category: Mechanical Locks
  • Product Group: Mechanical Locks
  • Product Subgroup: Bored Locksets
  • Product Substrate: Brass
  • Product Type: Multi Point Lock Trim
  • Subcategory: Cylindrical

Typical Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Omnia 71944?

Omnia multipoint lock trim products deliver professional-grade reliability with solid brass construction engineered for demanding commercial applications. The Traditional collection combines classic styling with commercial durability, while multiple finish options including unlacquered varieties provide design flexibility. Engineered for demanding commercial applications where dependable multipoint locking performance is essential.

Manufacturer Resources

Omnia 2026 Door Hardware Catalog

Product Specs

Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Multi Point Lock Trim
Subcategory:
Cylindrical
Commercial/Residential:
Commercial
MAP Policy:
Yes
Product Category:
Mechanical Locks
Product Substrate:
Brass
Collection:
Traditional
Department:
Door Hardware

Omnia 71944/ACA.3A – Frequently Asked Questions

1) Does the Omnia 71944 multipoint trim include the lock, or is it trim only?
The 71944 is trim only. It is the handle and plate set that dresses a multipoint lock, not the locking mechanism itself, so you still need the multipoint lock body and its gearbox in the door. Omnia builds the 71944 plates in solid brass and sells them in 12 function configurations covering entrance, patio, and pair dummy setups.
2) What is the difference between the ACA, ACB, and ECB options on Omnia 71944 trim?
They describe the cylinder type and where the cylinder sits relative to the handle. ACA is an American cylinder above the handle, ACB is an American cylinder below the handle, and ECB is a European profile cylinder below the handle. You have to match this to the multipoint lock body already in the door: a Euro profile gearbox needs the ECB plate, and an American mortise cylinder prep needs ACA or ACB depending on which side of the lever the cylinder hole falls. Get this wrong and the holes in the plate will not line up with the door.
3) Do I have to specify handing on the Omnia 71944 trim?
Yes, handing is required. The 71944 is ordered right hand or left hand, so determine the swing at the door before you place the order. On a pair, the active and inactive leaves take different parts, which is why Omnia lists separate pair dummy active interior and pair dummy inactive configurations.
4) Which Omnia 71944 function do I order for a pair of French doors?
A pair takes two different parts. The active leaf with the multipoint lock gets an entrance or patio function, and the inactive leaf gets the pair dummy inactive trim so the plates match visually without operating anything. If the active leaf needs matching interior trim only, that is the pair dummy active interior. All three exist in ACA, ACB, and ECB so you can keep the cylinder arrangement consistent across the opening.
5) What are the alternatives to Omnia 71944 multipoint trim if I want a different plate style?
Emtek covers the same job in several plate profiles: the 1111 in sandcast bronze with an arched plate at 1.5 by 11 inches, the 1151 in sandcast bronze with a rectangular plate at 1.5 by 11 inches, the 1131 lost wax cast bronze in the Tuscany style at 1.5 by 11-1/8 inches, and the 1171 in brass with the Concord plate at 1.5 by 11 inches. All four are keyed with an American cylinder hub below the handle, so they line up with an ACB-style prep rather than a Euro profile. If your gearbox takes a Euro cylinder, stay with the Omnia ECB version.
6) I need a rectangular plate profile instead of the Omnia 71944 traditional shape - what should I order?
The Omnia 71944 is from the Traditional collection and carries one plate shape across all of its finishes and functions. If the opening calls for a squared-off plate, the Emtek 1151 is a multipoint lock trim in the Rectangular series, sandcast bronze plates at 1.5 inches by 11 inches, keyed with an American cylinder with the hub below the handle. The Emtek 1171 offers the Concord style at the same 1.5 inch by 11 inch plate size on brass plates.
7) Can I use an Emtek 1131 in place of the Omnia 71944 if I need a European cylinder?
No. The Emtek 1131 is a Tuscany style multipoint trim on lost wax cast bronze plates, 1.5 inches by 11-1/8 inches, keyed with an American cylinder and the hub below the handle - it is an American cylinder product. For a European profile cylinder, stay with the Omnia 71944 and order an ECB function, which places the European cylinder below the handle. The 71944 ECB range includes Entrance, Patio, and pair dummy active interior and inactive trims.
8) Is the Omnia 71944 plate the same length as the Emtek multipoint trims?
No. The Omnia 71944 is a 9-5/8 inch overall trim. The Emtek 1111, 1151, and 1171 plates measure 1.5 inches by 11 inches, and the Emtek 1131 measures 1.5 inches by 11-1/8 inches. If you are replacing an existing trim, the longer Emtek plates will not cover the same footprint as the Omnia, so confirm the door prep before swapping between them.
9) I need a patio function multipoint trim - do the Emtek options cover that?
The Emtek 1111, 1131, 1151, and 1171 are all supplied keyed with an American cylinder. For a patio configuration with no exterior key, the Omnia 71944 lists ACA Patio, ACB Patio, and ECB Patio functions in solid brass, in right-hand or left-hand.
10) What is the difference between the entrance and patio function on Omnia multipoint trim?
Entrance is the keyed configuration, taking a cylinder so the door can be locked and unlocked from outside. Patio has no exterior key, it operates from the inside only, which is what you want on a rear door or a balcony door where an exterior key is not wanted. Both are available on the 71944 in ACA, ACB, and ECB arrangements.
11) What finishes does the Omnia 71944 come in, and which ones will change color over time?
Six: polished brass, polished brass unlacquered, polished nickel plated, satin nickel plated, oil-rubbed bronze, and unlacquered antique bronze. The two unlacquered options have no clear coat, so they patina naturally with handling and weather. If you are matching existing hardware on other openings in a building and want the color to stay put, choose one of the lacquered or plated finishes instead.
12) How long is the Omnia 71944 trim plate?
9-5/8 inches overall. That is the figure to check against the plate you are replacing and against the stile width of the door, since a multipoint trim plate has to sit clear of the glass stop on a glazed door.
13) Which multipoint trim should I choose if I want an unlacquered finish that patinas?
The Omnia 71944 is offered in Polished Brass Unlacquered and Unlacquered Antique Bronze, along with Polished Brass, Polished Nickel Plated, Satin Nickel Plated, and Oil-Rubbed Bronze. The Emtek alternatives are defined by their plate material instead - the 1111 and 1151 on sandcast bronze, the 1131 on lost wax cast bronze, and the 1171 on brass plates.
14) Is the Omnia 71944 suitable for commercial buildings or is it a residential handle set?
Omnia classes the 71944 as commercial, and the plates are forged solid brass. It is used on office buildings, schools, healthcare, retail, government buildings, and multi-tenant residential entries where the traditional plate look is wanted on a multipoint opening.
