Features
-

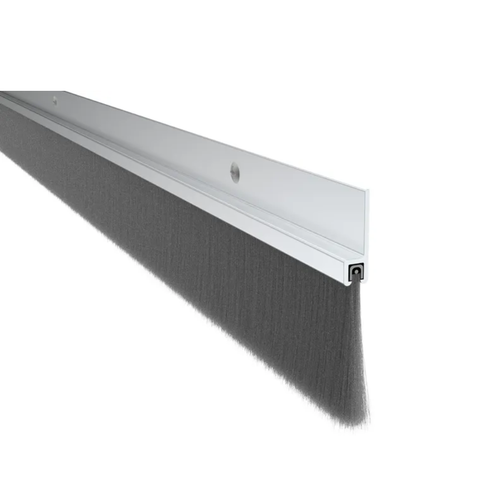

Consists of densely compressed nylon filaments encased in high-quality aluminum retainer
-
Ideally suited for hollow metal and wood door applications
-
For use on overhead, section, sliding, and automatic doors
-
Brush remains flexible down to -40°F and has a melting point above 400°F
-
Punched with slotted holes for adjustment (except 35⁰ angle types which are drilled with 1/8" hole)
Benefits
-
Reduce the infiltration of light, air, wind, rain, and snow
-
Prevents heat loss and controls the penetration of smoke and fumes
-
Naturally repels rodents and spiders. Can be sprayed with household pest repellent for additional pest control
Specifications
-
Base Material: Aluminum
-
Fasteners: 6 x 5/8 SMS Phillip Pan Head
-
Maximum Length: 185"
-
Minimum Length: 24"
-
Overall Height: 1 1/4"
-
Weight: 41/100 lbs
-
Width: 1/4"
Certifications
-
GREENGUARD Gold Certified
-
UL 4L10 listed
-
UL 1784 - Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
Manufacturer Resources
Product Specs
- Features:
- 180° Aluminum Retainers
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Astragals, Gaskets and Weatherstripping
- Product Type:
- Gaskets
- Subcategory:
- Gaskets
- Commercial/Residential:
- Commercial
- Product Model:
- 18050
- Product Function:
- Gasketing
- Product Dimension:
- W: 11/4 ", H: 1-1/8 "
- Product Substrate:
- Aluminum
- Product Category:
- Door Trim and Accessories
