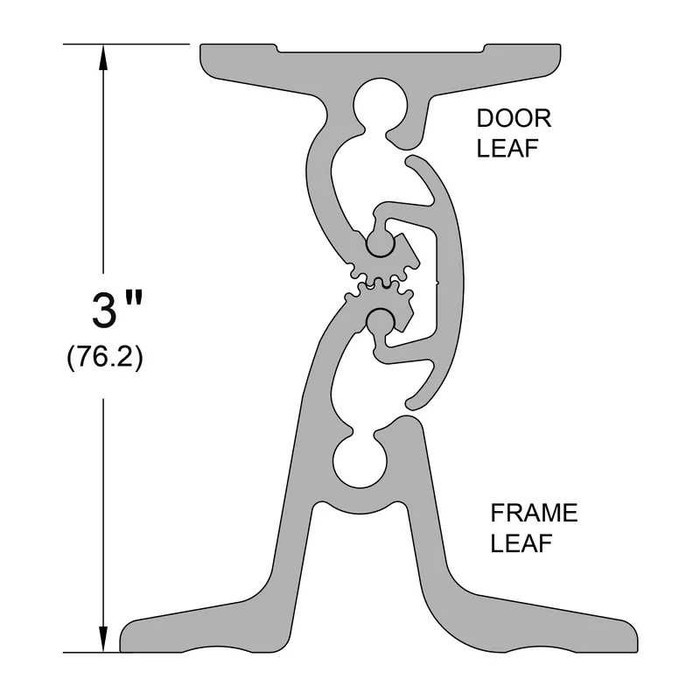

Pemko DSHP01 Double Swing Continuous Geared Hinge with 100-Degree Swing Range for Healthcare Applications
Professional Anti-Barricade Door Hardware Solution
The Pemko DSHP01 Double Swing Continuous Geared Hinge provides 100-degree swing capability in both directions, specifically engineered for healthcare applications requiring emergency access. This Grade 1 aluminum hinge accommodates doors up to 4' wide and 1-3/4"; thick, with custom lengths available from 79"; minimum to 10' maximum. When paired with Pemko Emergency Release Stop (ERS), it creates a complete anti-barricade system ideal for patient rooms and other critical healthcare environments.
Professional Features & Benefits
- Dual-Direction Swing Range: 100-degree swing capability in both directions allows flexible door operation and emergency access from either side.
- Anti-Barricade System Compatibility: Designed to work with Pemko Emergency Release Stop (ERS) for complete anti-barricade protection in healthcare applications.
- Safety-Focused Design: 1/8"; hinge frame and door leaf offset eliminates ligature points for enhanced patient safety in healthcare environments.
- Heavy-Duty Construction: Grade 1 aluminum construction with heavy weight rating provides exceptional durability for high-traffic commercial applications.
- Secure Fastening System: Security Torx fasteners included prevent unauthorized removal and tampering while ensuring reliable installation.
- Flexible Sizing Options: Accommodates doors up to 4' wide and 1-3/4"; thick with custom lengths available from 79"; to 10' maximum.
- Emergency Access Design: In emergency situations, stop discharge allows door to swing in opposite direction for immediate corridor-side access.
- Panic Hardware Compatible: Suitable for use in cased openings where panic hardware installation is required.
Professional Applications
- Healthcare Patient Rooms and Treatment Areas
- Psychiatric Facilities and Behavioral Health Units
- Emergency Department Access Points
- Correctional Facility Medical Areas
- Senior Living and Assisted Care Facilities
- Educational Institution Health Centers
- Commercial Buildings Requiring Anti-Barricade Protection
Anti-Barricade Protection Design
The DSHP01 hinge integrates with Pemko Emergency Release Stop (ERS) to create a comprehensive anti-barricade system. In emergency situations where someone is incapacitated, the stop can be discharged to allow door swing in the opposite direction, providing immediate corridor-side access. The 1/8"; hinge frame and door leaf offset design eliminates potential ligature points, making it ideal for healthcare environments where patient safety is paramount.
Why Choose Pemko Quality?
Pemko DSHP01 continuous hinges deliver Grade 1 performance with heavy-duty aluminum construction rated at 2.36 pounds per foot. Security Torx fasteners and precision geared operation ensure reliable performance in demanding healthcare applications where dependable emergency access capability is essential. Engineered specifically for anti-barricade applications with custom length availability to meet diverse installation requirements.
Product Documentation & Resources
Manufacturer Resources
Product Specs
- Subcategory:
- Continuous Hinges
- Product Group:
- Door Hinges and Pivots
- Product Subgroup:
- Continuous Hinges
- Product Type:
- Pin and Barrel Continuous Hinges
- Commercial/Residential:
- Commercial
- Product Category:
- Door Hinges and Pivots
- Department:
- Door Hardware
