HS Series

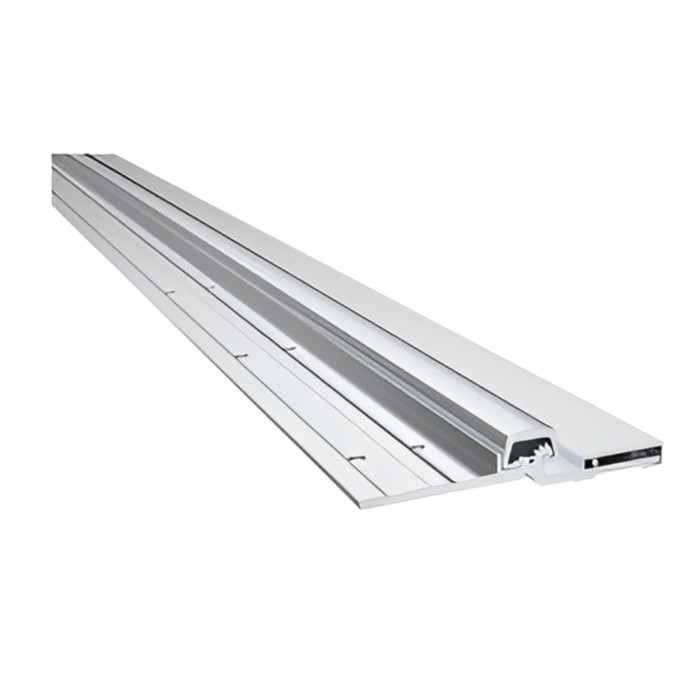

The HS Series Half Surface Continuous Geared Hinge is designed mainly for retrofit work and is applied to the exposed surface of the door and frame rabbet. This hinge allows for adjustments for proper alignment, and is designed for use with hollow metal frames where the insert conforms to SDI specifications for aligning doors and frames.
Features
-
Standard and heavy duty versions available
-
For use with hollow metal frames where inset conforms to SDI specifications for aligning doors and frames
-
Allows for adjustments to properly align the edge of the door to the frame
-
Applied to exposed surfaces of the door and frame
-
Wood screws available on request (specify on order)
-
Frame portion fasteners are #12-24 x 7/16" FHUC, Type C, threadforming
-
Fasteners - Door Portion - a. Thru-bolt - 1/4-20 x 1-5/8". - Standard Duty Hinges - 4 required. - b. Shoulder Bolt - 1/4-20 x 1" PCH. - Standard Duty Hinges - 4 required. - c. Pan Head Self Drilling #12 x 3/4"
-
Custom lengths available
-
Certain door and frame conditions may require an extra 1/32"-1/16" clearance
-
Special FirePins are only required on 3-Hour (A-Label) assemblies
Benefits
-
Special hinge reinforcements are not required
-
Hollow metal door and frame manufacturers’ standard is acceptable
-
Removal of hinge reinforcements in the door and frame is not advised
-
Guaranteed for the life of the opening against defects in material or workmanship
-
Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80
Specifications
-
Grade: Grade 1
-
Hinge Material: Aluminum
-
Hinge Mounting Type: Half Surface
-
Hinge Strength: Heavy Weight
-
Handing: Non-handed
-
Fastener: Teks
-
Fastener Type: Self Drilling
-
Maximum Door Thickness: 2 1/4"
-
Minimum Door Thickness: 1 3/4"
-
Maximum Door Width: 4'
-
Maximum Length: 10'
-
Minimum Length: 79"
-
Maximum Swing: 180°
-
Minimum Hinge Clearance: 1/8"
-
Weight: 1.28lbs. per foot
Certifications
-
Health Product Declaration (HPD)
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ANSI/BHMA Standard A156.26
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Subcategory:
- Continuous Hinges
- Grade:
- Grade 1
- Product Group:
- Door Hinges and Pivots
- Product Subgroup:
- Continuous Hinges
- Product Type:
- Continuous Hinges
- Product Model:
- HS
- Product Category:
- Door Hinges and Pivots
