FS3502 Series

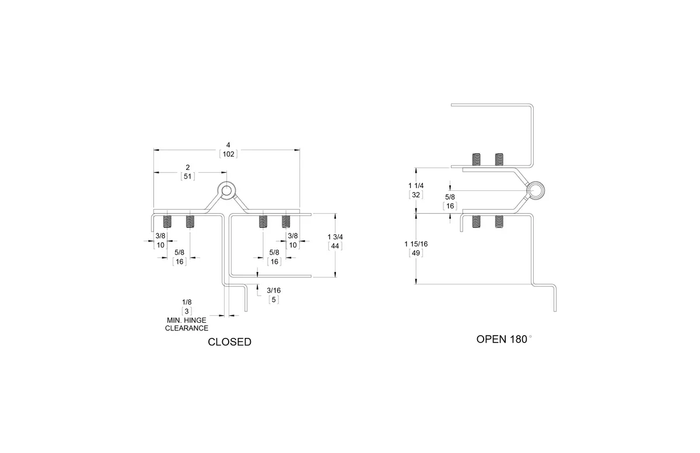

The 12 gauge Markar FS3502 Full Surface Continuous Pin and Barrel Hinge is well suited for correctional facilities and other high security locations using 2" thick swing type doors. Prison doors, gates, extremely tall doors, and extra heavy doors are all ideal candidates for this hinge.
Features
-
Stainless steel end pins
-
Fastener screw pack includes custom #12-24 x 7/16" PFHMS U/C S.S.
-
Hospital tip standard
-
No exposed mounting fasteners when closed
-
Supports weights up to 900 lbs., 4'0" maximum door width
-
Symmetrically templated hole pattern
-
Specify handing on 6'8", 7'2" and for most optional features
-
Custom lengths and hole patterns available
-
Hinge reinforcements are not required when installed on a 16 gauge (or heavier) metal frame
-
Tamper-proof security screws available
Benefits
-
Well suited for correctional facilities and other high security locations using 2" thick swing type doors
-
Ideal for prison doors, gates, extremely tall doors and extra heavy doors
-
Fire ratings up to and including 3 hours
Specifications
-
Grade: Grade 1
-
Hinge Material: 304 stainless steel
-
Hinge Mounting Type: Full Surface
-
Hinge Strength: Heavy Weight
-
Handing: Non-handed
-
Fastener: MS1244SP10
-
Fastener Type: MACHINE SCREWS
-
Maximum Door Thickness: 1 3/4"
-
Minimum Door Thickness: 1 3/4"
-
Maximum Door Width: 4"
-
Maximum Hinge Length: 10"
-
Minimum Hinge Length: 12"
-
Maximum Swing: 180°
-
Minimum Hinge Clearance: 1/8"
-
Weight: 2.55lbs. per foot
Certifications
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
Warnock Hersey listing
-
ANSI/BHMA Standard A156.26
Manufacturer Resources
Product Specs
- Category:
- Door Hinges and Pivots
- Subcategory:
- Continuous Hinges
- Grade:
- Grade 1
- Product Group:
- Door Hinges and Pivots
- Product Subgroup:
- Continuous Hinges
- Product Type:
- Continuous Pin and Barrel Hinges
- Model:
- FS3502
