FM200 Series
The Markar FM200 Series Full Mortise Continuous Pin and Barrel Hinge is edge-mounted and used in high traffic, high frequency use doors. This hinge works well in locations that would normally call out for anchor hinges, pivot reinforcement hinges or thrust pivot unit and hinge sets. Additionally, this hinge saves on special door and frame preparation charges and can be used on both fire labeled and non-labeled openings.
Features
-
For use in high traffic, frequently used doors
-
Supports weights up to 600 lbs, 4'0" maximum door width
-
Specify handing for optional features listed
-
Fasteners are concealed when door is closed
-
Fastener screw pack includes custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
-
Custom lengths available
-
All hinges shall be furnished with manufacturer’s recommended hardware pack per specific model application
-
Symmetrically templated hole pattern
Benefits
-
Saves on special door and frame preparation charges and time
-
Can be used on both fire labeled and non-fire labeled openings
-
Each knuckle includes nylon bearing at each separation for a quiet, smooth, self-lubricating operation
-
Easy installation
-
No exposed mounting fasteners
-
Guaranteed for the life of the opening against defects in material or workmanship
Specifications
-
Grade: Grade 1
-
Hinge Material: Carbon Steel
-
Hinge Mounting Type: Full Mortise
-
Hinge Strength: Standard Weight
-
Handing: Non-handed
-
Fastener: KMPSS
-
Fastener Type: TEKS
-
Maximum Door Thickness: 2 1/4"
-
Minimum Door Thickness: 1 3/4"
-
Maximum Door Width: 4"
-
Maximum Hinge Length: 10"
-
Minimum Hinge Length: 12"
-
Maximum Swing: 180°
-

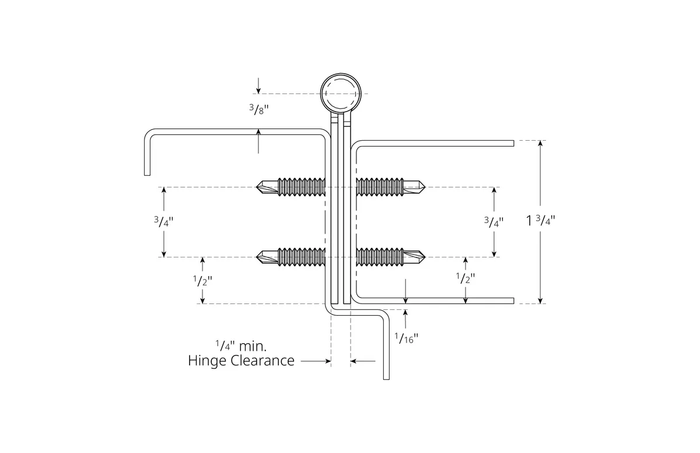

Minimum Hinge Clearance: 1/4"
-
Weight: 1.86lbs. per foot
Certifications
-
ANSI/SDI 250.13 Certified
-
ASTM E330 Certified
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
Warnock Hersey listing
-
ASTM E1996 Certified
-
ASTM E1886 Certified
-
Florida Building Code Approved TAS 201, 202, 203 (old)
-
ANSI/BHMA Standard A156.26
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Category:
- Door Hinges and Pivots
- Subcategory:
- Continuous Hinges
- Grade:
- Grade 1
- Product Group:
- Door Hinges and Pivots
- Product Subgroup:
- Continuous Hinges
- Product Type:
- Continuous Pin and Barrel Hinges
- Model:
- FM200
