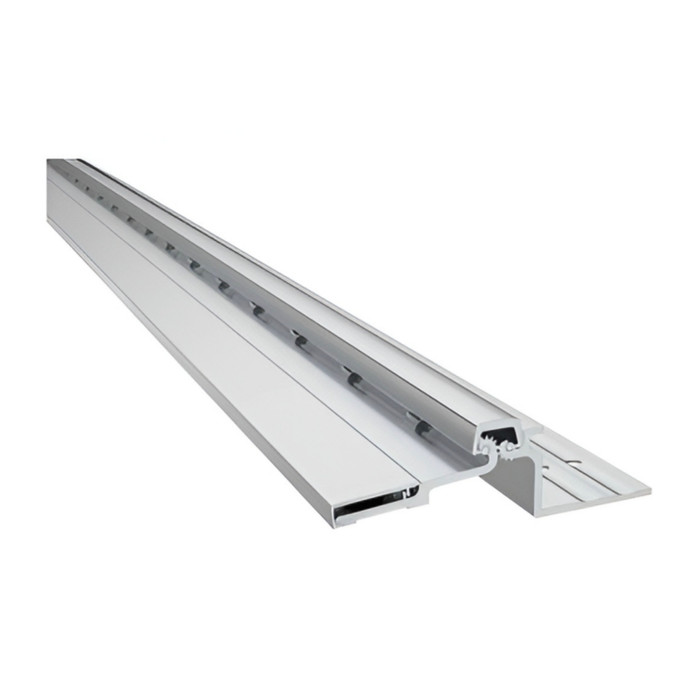

OS_HS Series
The OS_HS Series Offset Half Surface Continuous Geared Hinge is used when extra clearance is needed when the door is open to 90-degrees. This hinge allows the door to stay wide open or flat to the wall, avoiding damage from carts, dollies, pallets, and more.
Features
-
Allows door to swing out further to allow more clearance
-
Allows door to stay wide open or to be flush against the wall
-
Custom lengths available
-
Special FirePins are only required on 3-Hour (A-Label) assemblies
-
Certain door and frame conditions may require an extra 1/32"-1/16" clearance
-
Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80
Benefits
-
Allows door to be flat to the wall to avoid damage from carts, dollies and pallets
-
Hollow metal door and frame manufacturers’ standard is acceptable
-
Removal of hinge reinforcements in the door and frame is not advised
-
Guaranteed for the life of the opening against defects in material (HD only)
-
Cost effective and easy to install
-
Extends the life of the door and the frame
Specifications
-
Bearing Spacing: 3"
-
Grade: Grade 1
-
Hinge Material: Aluminum
-
Hinge Mounting Type: Half Surface
-
Hinge Strength: Heavy Weight
-
Handing: Non-handed
-
Fastener: Teks, Thru Bolts
-
Fastener Type: Self Drilling
-
Maximum Door Thickness: 2 1/4"
-
Minimum Door Thickness: 1 3/4"
-
Maximum Door Width: 4'
-
Maximum Hinge Length: 10'
-
Minimum Hinge Length: 79"
-
Maximum Swing: 180°
-
Minimum Hinge Clearance: 3/16"
-
Weight: 1.31lbs. per foot
Certifications
-
Health Product Declaration (HPD)
-
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
-
ANSI/BHMA Standard A156.26
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Category:
- Door Hinges and Pivots
- Subcategory:
- Continuous Hinges
- Grade:
- Grade 1
- Product Group:
- Door Hinges and Pivots
- Product Subgroup:
- Continuous Hinges
- Product Type:
- Continuous Aluminum Geard Hinges
- Model:
- OS-HS
