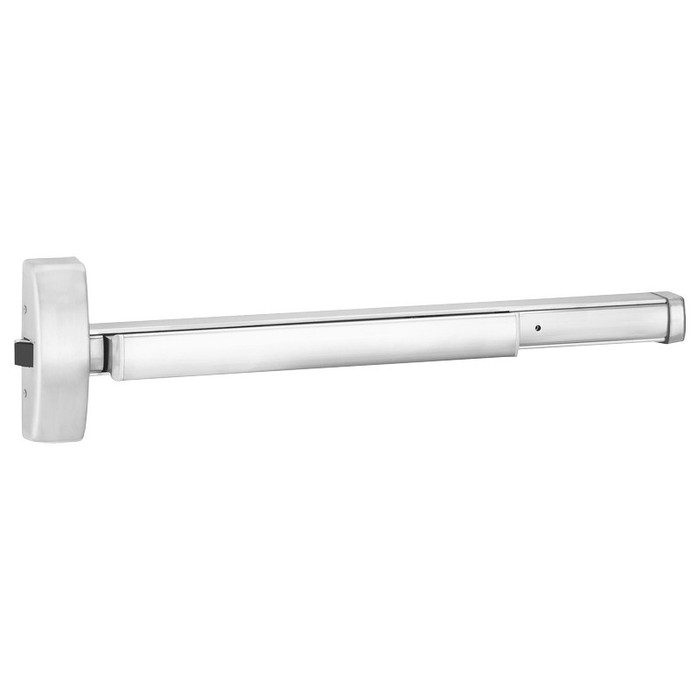

BEST 2102 Series 48" Wide Stile Reversible Rim Exit Device with Dummy Trim

BEST 2102 Series 48" Wide Stile Reversible Rim Exit Device with Dummy Trim

Professional Access Control Compatible Exit Device Solution

The BEST 2102 Series 48" rim exit device delivers professional-grade egress control with wide stile compatibility and reversible operation. Designed for doors 1-3/4" to 2-1/4" thick and up to 4'-0" wide openings, this device features a center driven cam system compatible with many manufacturers' access control exterior trim. The stainless steel deadlocking latchbolt provides 3/4" throw with reliable engagement, while ANSI/BHMA Grade 1 certification ensures commercial-grade performance.

Professional Features & Benefits

• Wide Door Compatibility: Accommodates doors 1-3/4" to 2-1/4" thick and up to 4'-0" wide openings for versatile commercial applications.
• Access Control Integration: Center driven cam design accepts tailpiece from access control products with minimum 50-degree rotation requirement for seamless integration.
• Heavy-Duty Construction: Cover, touchbar, device channel, lock/hinge side filler, and end cap manufactured from heavy wrought brass, bronze, or stainless steel for exceptional durability.
• Reversible Operation: Field-reversible for all functions and trims with standard RHRB packaging for installation flexibility.
• Professional Latch Performance: Stainless steel deadlocking latchbolt with 3/4" throw provides secure latching with reliable operation.
• Grade 1 Certification: ANSI/BHMA certified for ANSI 156.3 Grade 1 and UL Listed for panic and fire exit hardware compliance.
• Field-Selectable Functions: Functions are field selectable except for double cylinder option, with standard "03" function furnished when not specified.
• Retrofit Compatibility: 2100 Series devices designed to retrofit into other manufacturers' mounting hole locations for upgrade applications.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: No
• Keyed: No
• Keyed Function: Non-Keyed
• Lock Function: Dummy
• PDF:PRECISION 2000 Series Touchbar Exit Device: https://zensupply.com/content/pdf/best/PH-0292_PRECISION_2000_Sell_Sheet-03-22.pdf
• Product Category: Exit Devices and Trim
• Product Function: Dummy
• Product Group: Exit Devices and Trim
• Product Model: 2102
• Product Size: 48"
• Product Subgroup: Exit Devices - Rim
• Product Type: Exit Devices - Rim
• Series: 2100 Series
• Stile Type: Wide Stile
• Subcategory: Rim Exit Devices
• Wood Door Compatible: No

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2-1/4"), stile width, and handing as applicable to this reversible device.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, noting retrofit compatibility with other manufacturers' hole patterns.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for rim exit device mounting.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications, ensuring proper alignment of the center driven cam.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, verifying 3/4" latchbolt throw.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST 2102 Series rim exit devices deliver professional-grade reliability with heavy wrought brass, bronze, or stainless steel construction and ANSI/BHMA Grade 1 certification. UL Listed for panic and fire exit hardware with deadlocking stainless steel latchbolt rated for commercial applications. Engineered for demanding commercial environments where dependable egress control and access control integration are essential.
