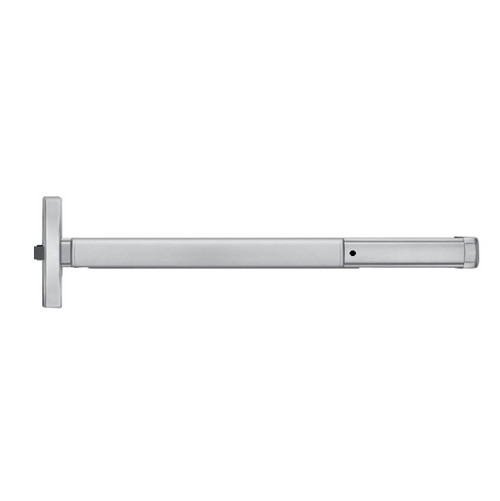

Precision Hardware Inc (PHI) 2103 Series - Fire Rated 36" Key Retracts Latchbolt, Wide Stile Reversible Rim Exit Device

Precision Hardware Inc (PHI) 2103 Series - Fire Rated 36" Key Retracts Latchbolt, Wide Stile Reversible Rim Exit Device

(No reviews yet) Write a Review

Model: F2103 628 36
$2,118.00
$1,217.85
Selected Finish is
Selected Trim is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,118.00
$1,217.85
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Precision 21 Series – Nonhanded
The 21 Series Device is designed to be compatible with many
manufacturers’ Access Control exterior trim. The device incorporates a
center driven cam to receive the tailpiece of the access control product.
The tailpiece rotation required to retract the latch is a minimum of 50
degrees.

Features

Doors – For all types of single and double doors with a mullion.
For mullions. Available for 1-3/4" to 2-1/4" thick,
up to 4'-0" wide opening. For thicker doors, consult factory.
Furnished standard for 1-3/4" thick, 3'-0" wide opening.

Device – Covers ANSI A115.2 (Type 161),
A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Functions – Functions are field selectable except for the Double Cylinder
option. The device is furnished for a desired function if specified. If not
specified the “03” function is furnished standard.

Double Cylinder – Handed, “10” Function available. Requires two rim type
cylinders, not furnished standard.

Base Material – The Cover, Touchbar, Device Channel, Lock/Hinge Side
Filler and End Cap are furnished of heavy wrought Brass, Bronze or
Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze
and Stainless Steel components.

Latchbolt – Stainless Steel, Deadlocking, 3/4" throw.

Strikes – No. S300

Dogging – 1/4" turn hex key dogging standard.
NOT available on Fire Exit Hardware.

Touchbar Height – 39-15/16" from floor standard.
May be varied as situation dictates.

Reversible – Reversible for all functions and Trims.
Standard packaging RHRB.

UL Listed – Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.

ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.

Finishes –
605 606 612 613 622
625 626W 628 630 690

Cylinders – Rim Type, not furnished standard.

Retrofit Applications – The 2100 and FL2100 Series Devices are designed
to retrofit into other manufacturers’ mounting hole locations. 1700 Series
Pull Trim and 4900 Series Lever Trim may also be factory set for these
applications by specifying prefix “R” (e.g. 2108 R4908A). Consult factory for
details.



Precision 2000 Sell Sheet

Precision 2000 Series Catalog

Precision 2000 FAQ



Manufacturer Resources

Product Specs

Category:
Exit Devices and Trim
Series:
2100 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Product Type:
Exit Devices - Rim
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Fire Rated:
Yes
Wood Door Compatible:
No
Product Model:
2103
Product Size:
36"

BEST F2103 628 36 – Frequently Asked Questions

1) What door types work with the PHI 2103 series rim exit device?
This wide stile rim exit device fits doors 1-3/4" to 2-1/4" thick. Works on hollow metal, wood, and composite doors. Requires minimum 4-1/2" wide stile for proper mounting. Check door weight capacity with manufacturer specifications.
2) How does the reversible handing feature work on this exit device?
The PHI 2103 can be field-converted for left-hand or right-hand doors without ordering separate units. The latchbolt mechanism and trim pieces reverse following the installation template. Verify proper operation after field conversion.
3) What fire rating does this exit device maintain?
This device maintains the fire rating of properly rated door assemblies when installed per manufacturer specifications. Commonly used on 90-minute and 3-hour rated openings. Verify rating requirements with local AHJ before installation.
4) How many keys does the 36-key cylinder accommodate?
The cylinder accepts up to 36 different key cuts while maintaining security standards. Allows for master key systems and multiple user access levels. Coordinate keying schedule with locksmith before installation.
5) What building codes does this exit device meet?
Meets IBC, NFPA 80, NFPA 101, and ADA requirements for emergency egress hardware. UL listed for panic hardware applications. Check local amendments to model codes for specific project requirements.
6) What strike options work with the retracts latchbolt mechanism?
Compatible with standard rim strikes and electric strikes designed for exit device latchbolts. The retracting latchbolt requires proper strike alignment for smooth operation. Verify strike compatibility before ordering.
7) How do you adjust the latchbolt projection on this device?
Latchbolt projection adjusts through the mechanism housing using standard tools. Typical projection ranges from 1/2" to 3/4". Follow manufacturer torque specifications to prevent binding or premature wear.
8) What finish options are available for the PHI 2103 series?
Standard finishes include aluminum, bronze, and stainless steel options. Special finishes available through factory coordination. Match existing hardware finishes for consistent appearance across the project.
9) How do you maintain proper operation of this exit device?
Lubricate pivot points quarterly with manufacturer-approved lubricant. Check latchbolt alignment and strike engagement monthly. Test panic function and key override operation during routine inspections. Clean exterior surfaces with appropriate cleaners.
10) What related Precision Hardware models should contractors consider?
The PHI 2100 series offers similar functionality with different keying options. Consider PHI vertical rod devices for double doors or tall openings. Review the complete Precision Hardware line for compatible accessories and trim.
11) What door preparation is required for installation?
Follow the manufacturer template for precise hole locations and dimensions. Standard door prep includes mounting holes for the device body and cylinder. Frame preparation includes strike pocket and alignment verification. Use proper drilling techniques for fire-rated doors.
