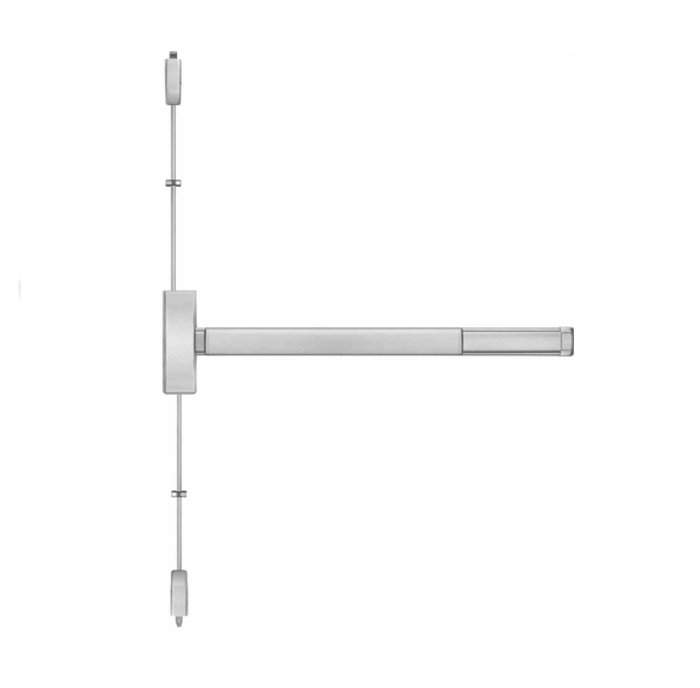

BEST Precision 2201 Series 36" Wide Stile Surface Vertical Rod Exit Device

BEST Precision 2201 Series 36" Wide Stile Surface Vertical Rod Exit Device

Professional Surface Vertical Rod Exit Device Solution

The BEST Precision 2201 Series delivers professional-grade exit device performance for commercial door applications. Designed for doors 1-3/4" to 2-1/4" thick and up to 4'-0" wide by 10'-0" high openings, this 36" wide stile surface vertical rod exit device features heavy wrought brass, bronze, or stainless steel construction with investment cast steel chassis. The device incorporates a center driven cam design compatible with many manufacturers' access control exterior trim, requiring minimum 50-degree tailpiece rotation for latch retraction.

Professional Features & Benefits

• Door Compatibility: Accommodates doors 1-3/4" to 2-1/4" thick, up to 4'-0" wide by 10'-0" high openings for versatile commercial applications.
• Heavy-Duty Construction: Covers, touchbar, device channel, lock/hinge side filler, vertical rods and end cap manufactured from heavy wrought brass, bronze or stainless steel for exceptional durability.
• Access Control Integration: Center driven cam design compatible with many manufacturers' access control exterior trim with minimum 50-degree tailpiece rotation requirement.
• Professional Grade Certification: UL Listed for Panic and Fire Exit Hardware, BHMA certified ANSI 156.3 Grade 1 for demanding commercial applications.
• Field Selectable Functions: Functions are field selectable with standard "03" function furnished when not specified for installation flexibility.
• Reversible Design: Reversible for all functions and trims with standard RHRB packing for versatile installation options.
• Precision Hardware Components: Stainless steel deadlocking top latchbolt with 3/4" throw and steel plated bottom bolt with independent action 5/8" throw.
• Complete Strike Package: Includes S300 surface applied investment cast stainless steel top strike and S460 flush mounted steel bottom strike, both black powder coated.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: No
• PDF:PRECISION 2000 Series Touchbar Exit Device: https://zensupply.com/content/pdf/best/PH-0292_PRECISION_2000_Sell_Sheet-03-22.pdf
• Product Category: Exit Devices and Trim
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Surface Vertical Rod
• Series: 2200 Series
• Subcategory: Surface Vertical Rod

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST Precision 2201 Series exit devices deliver professional-grade reliability with heavy wrought brass, bronze, or stainless steel construction and investment cast steel chassis rated for demanding commercial applications. UL Listed for Panic and Fire Exit Hardware with BHMA certified ANSI 156.3 Grade 1 performance ensures dependable operation where safety and security are essential. Engineered for commercial environments requiring robust exit device performance with access control integration capabilities.
